Instrument Panel Illumination

Diagram 0918-12a:

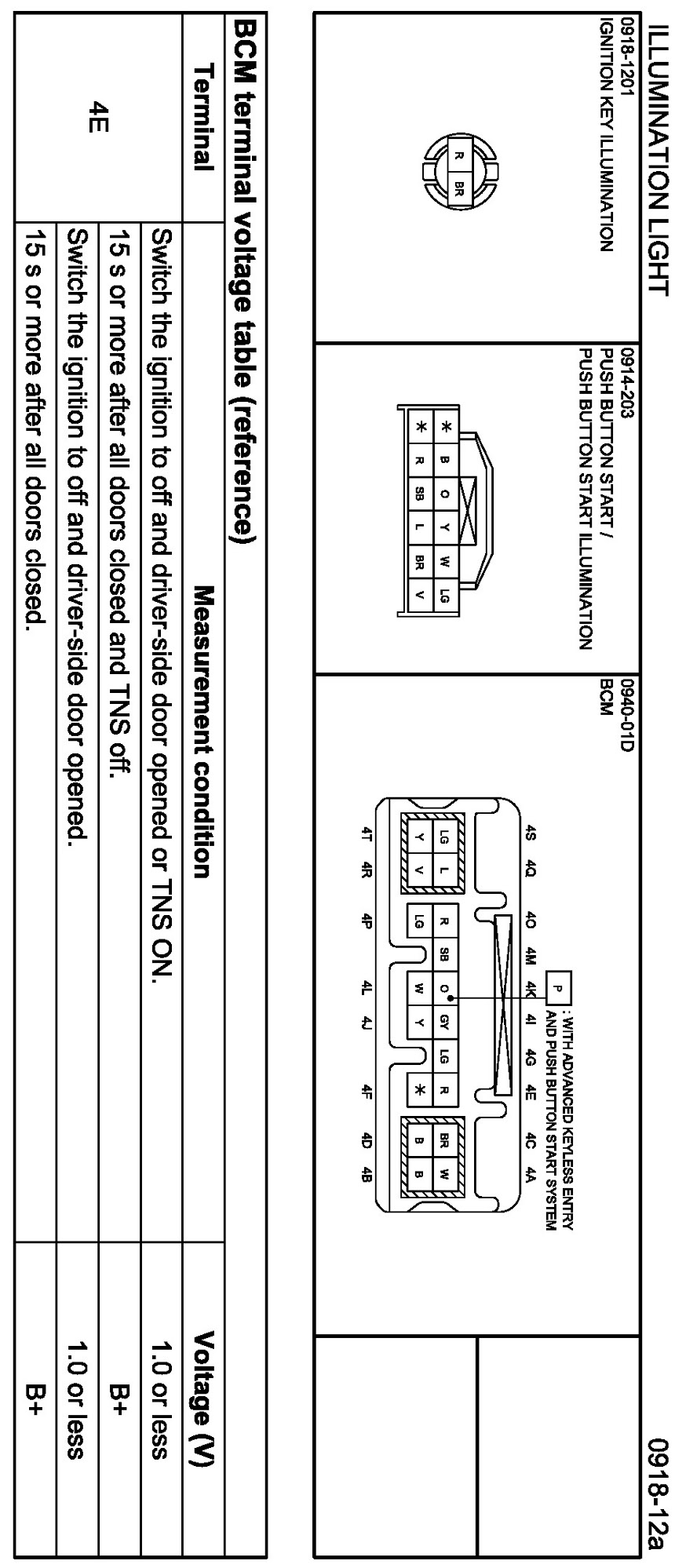

Connectors 0918-12a:

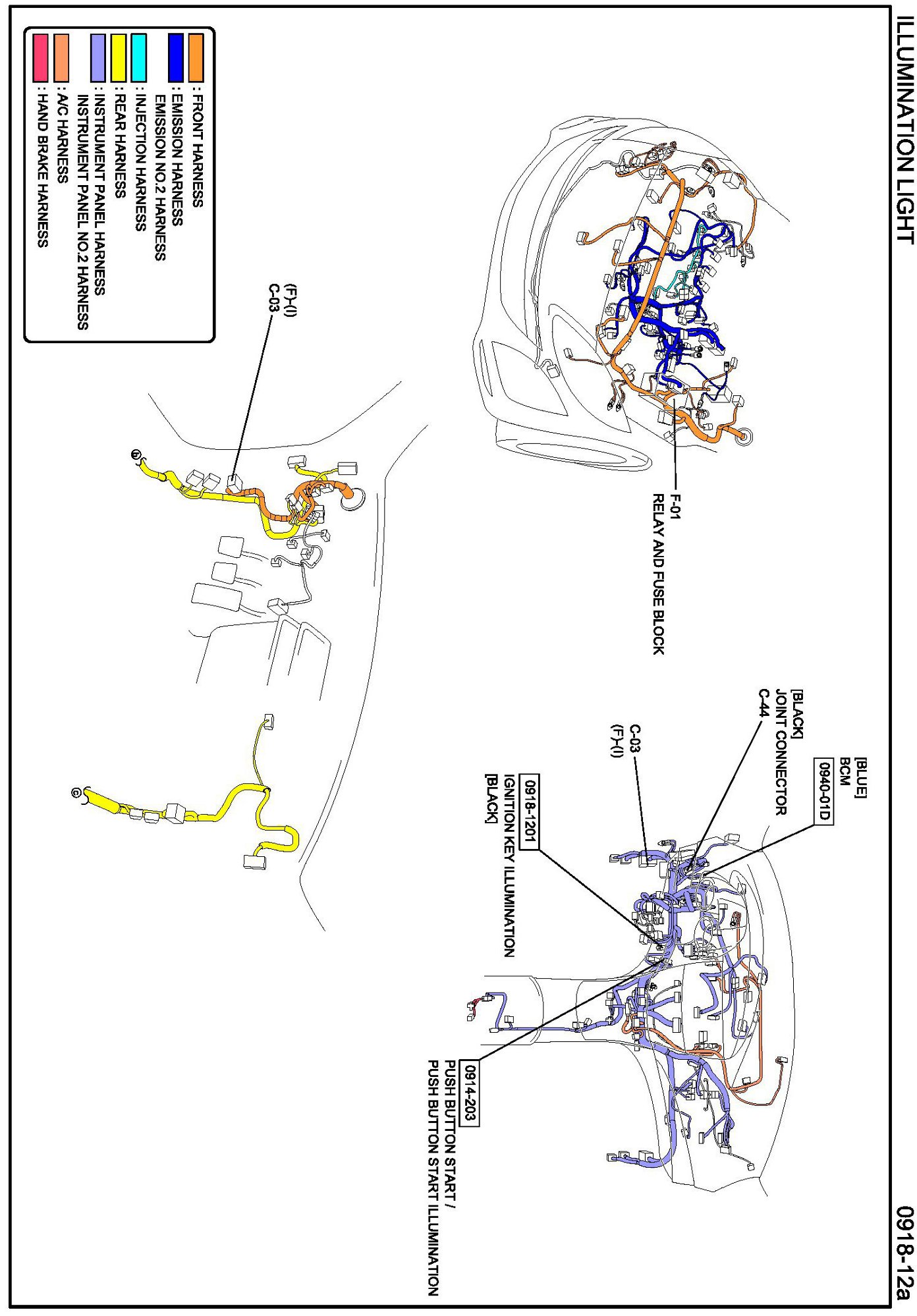

Routing View 0918-12a:

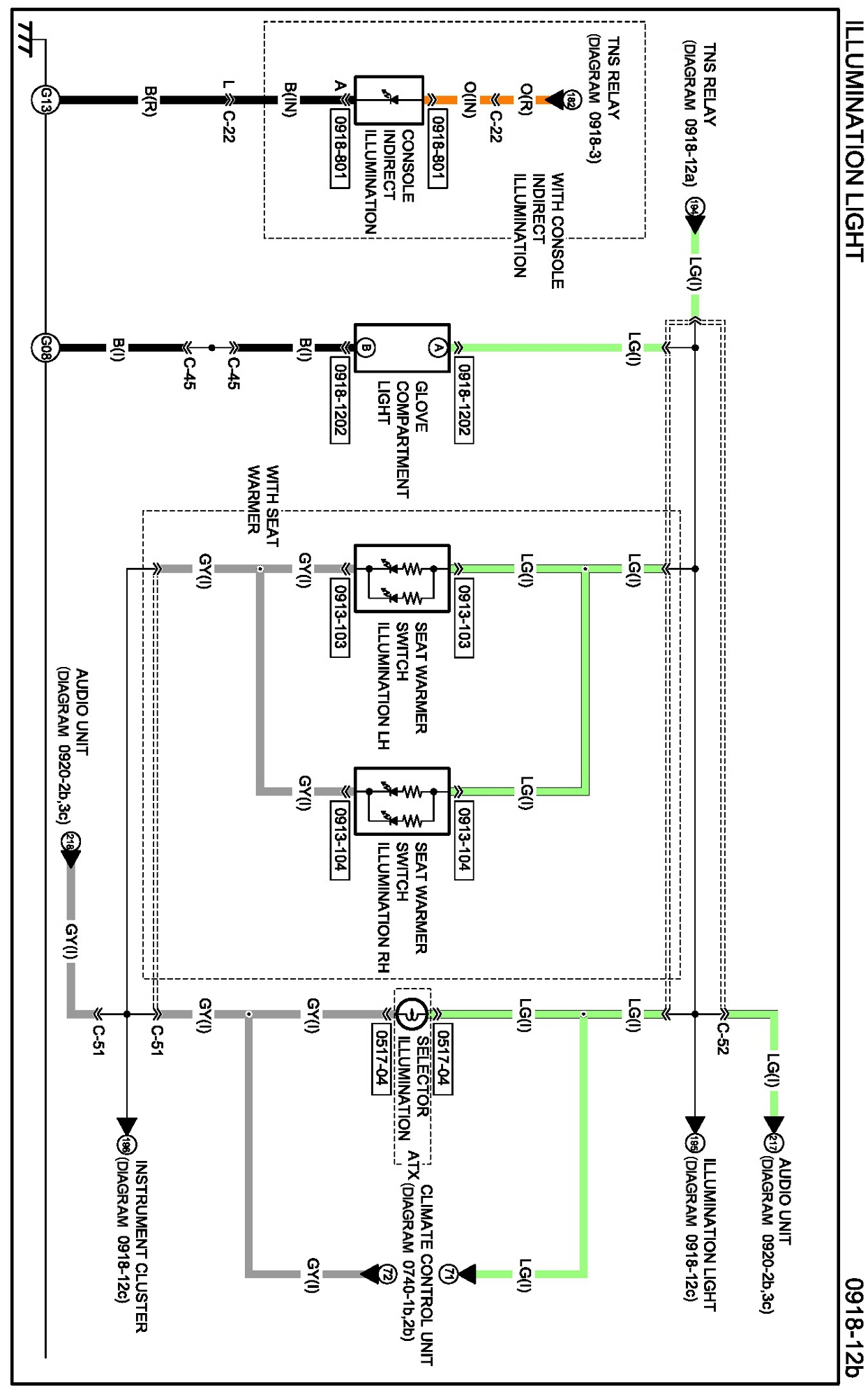

Diagram 0918-12b:

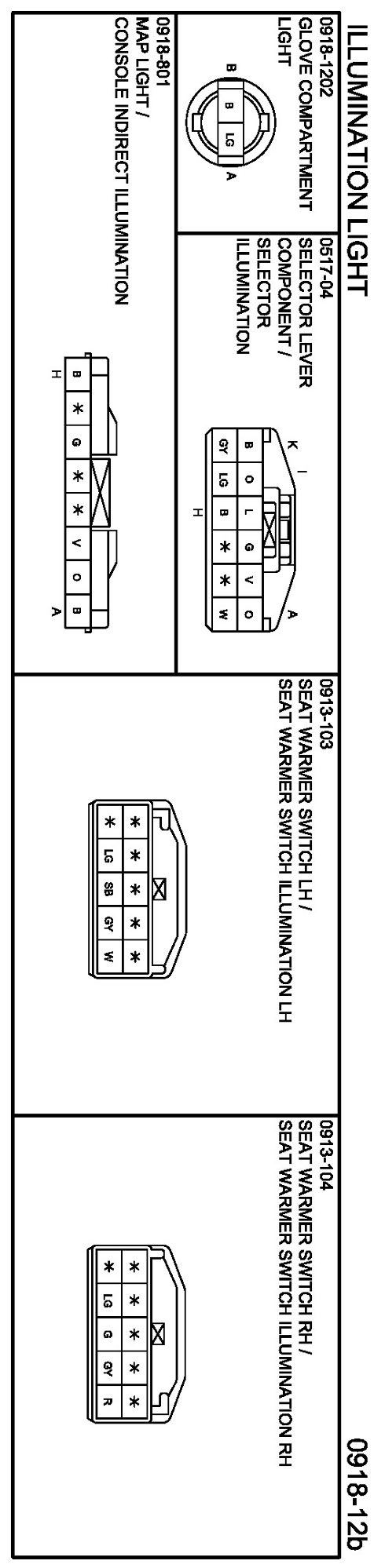

Connectors 0918-12b:

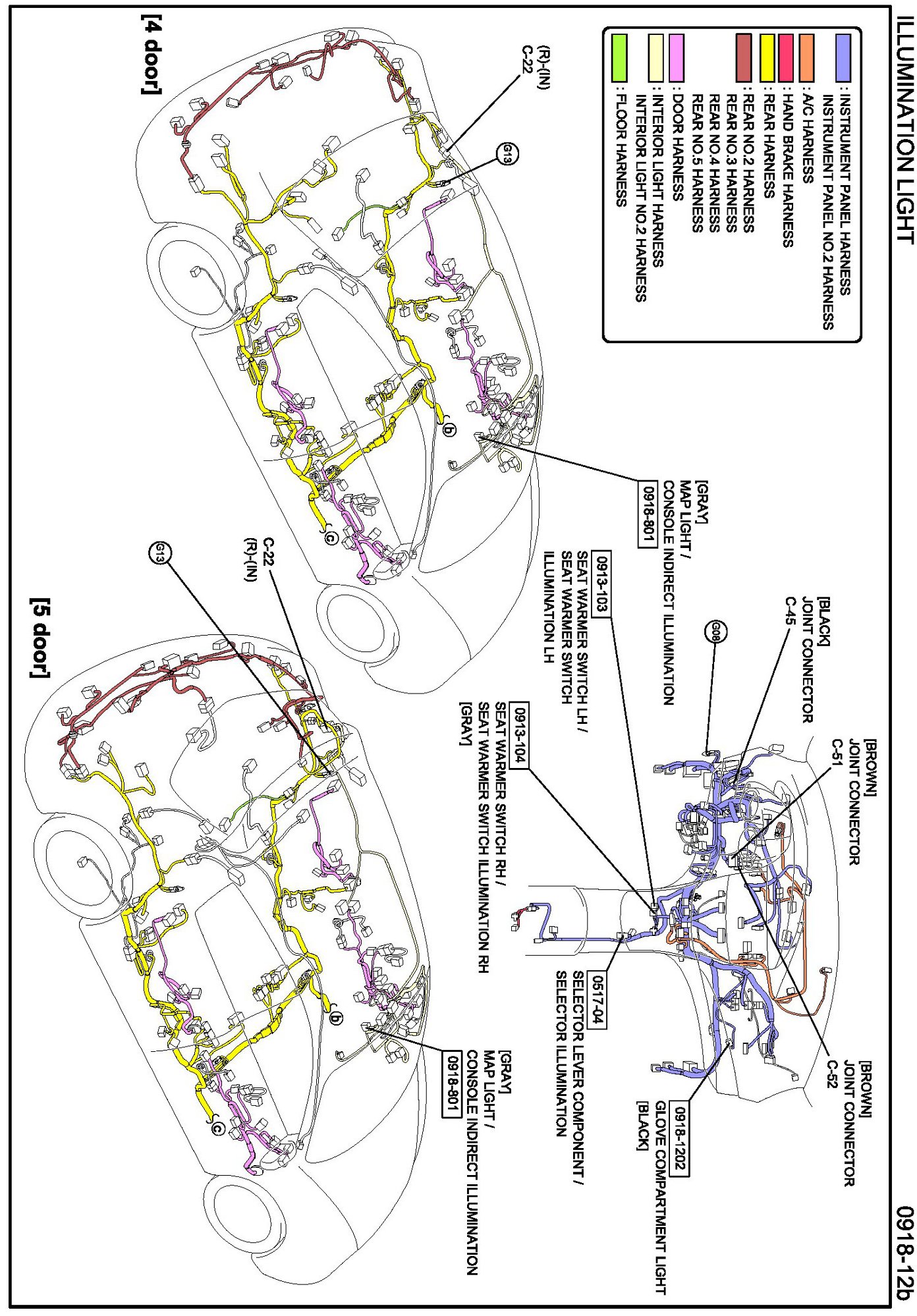

Routing View 0918-12b:

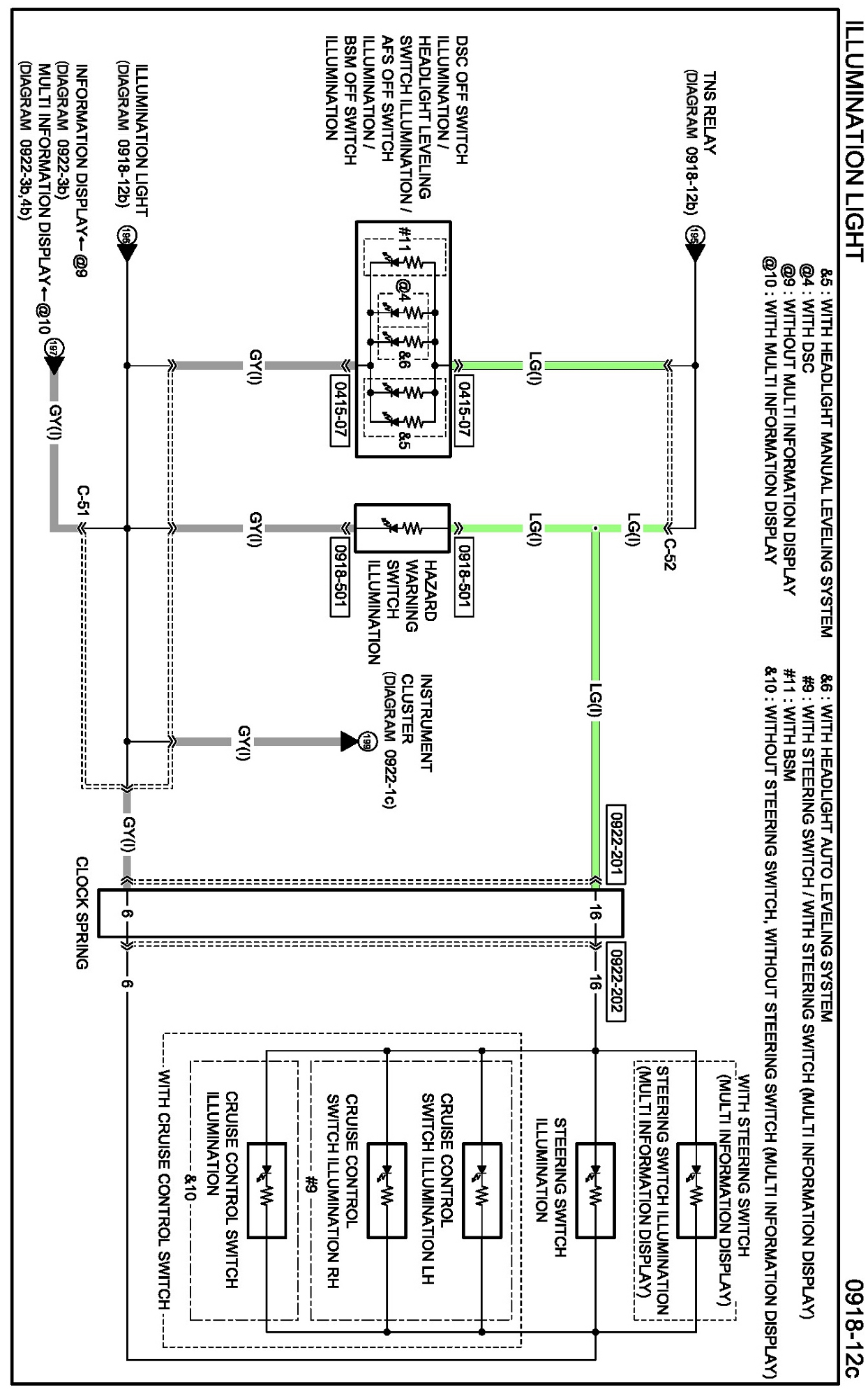

Diagram 0918-12c:

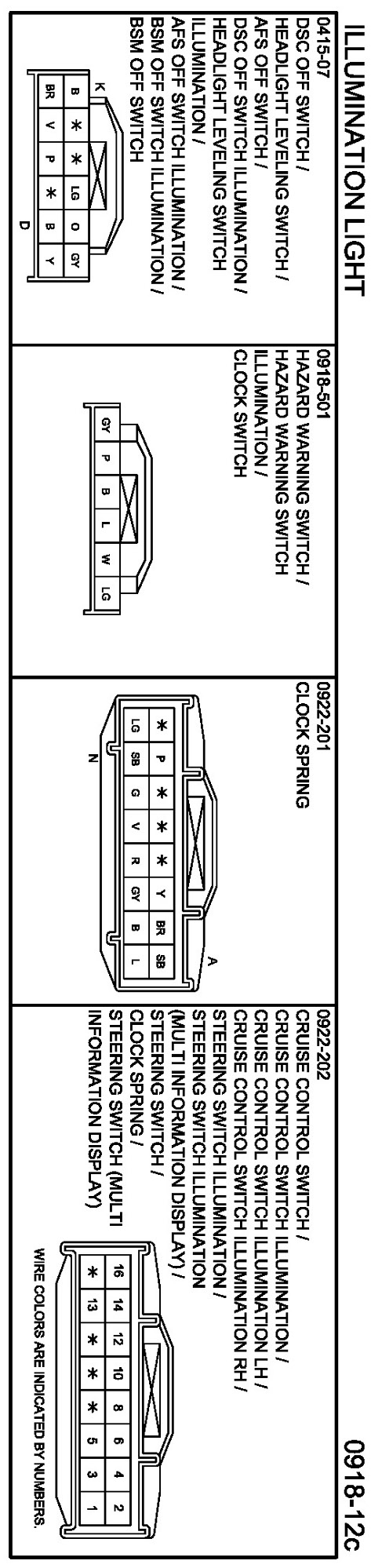

Connectors 0918-12c:

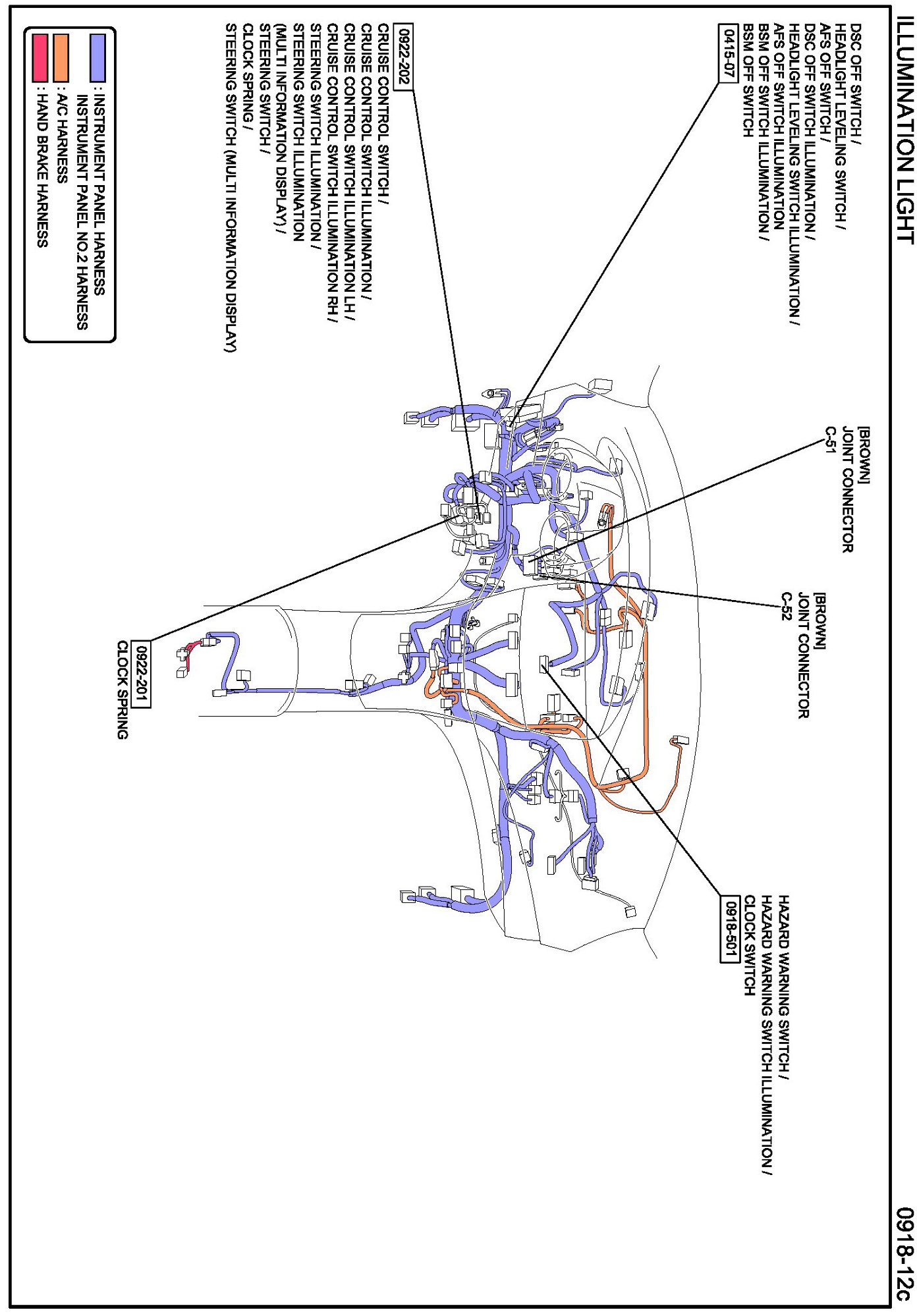

Routing View 0918-12c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
