Home >> Mazda >> 2012 >> 3 L4-2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0114-1 (Fuel System)

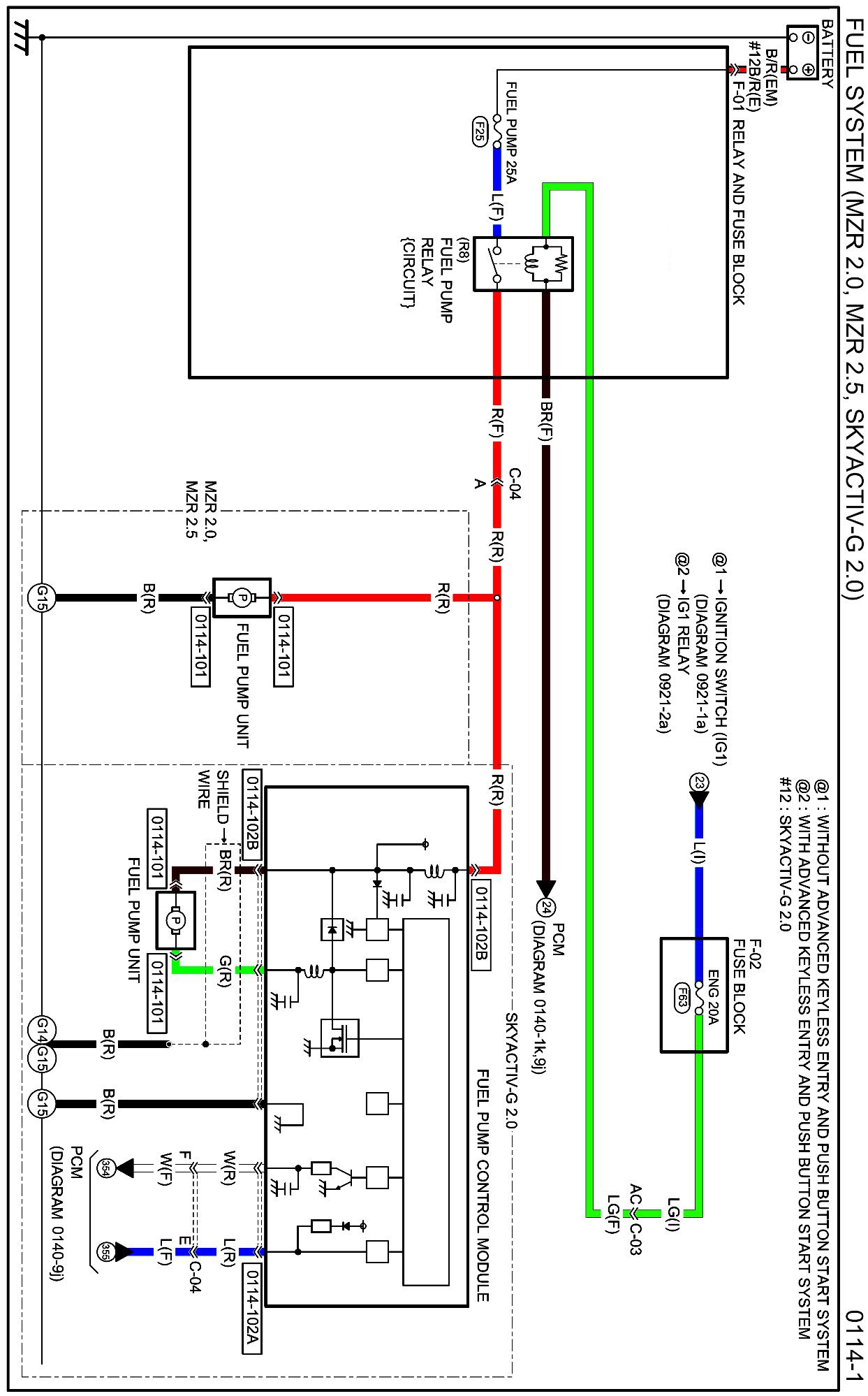

Diagram 0114-1 (Fuel System)

Diagram 0114-1:
