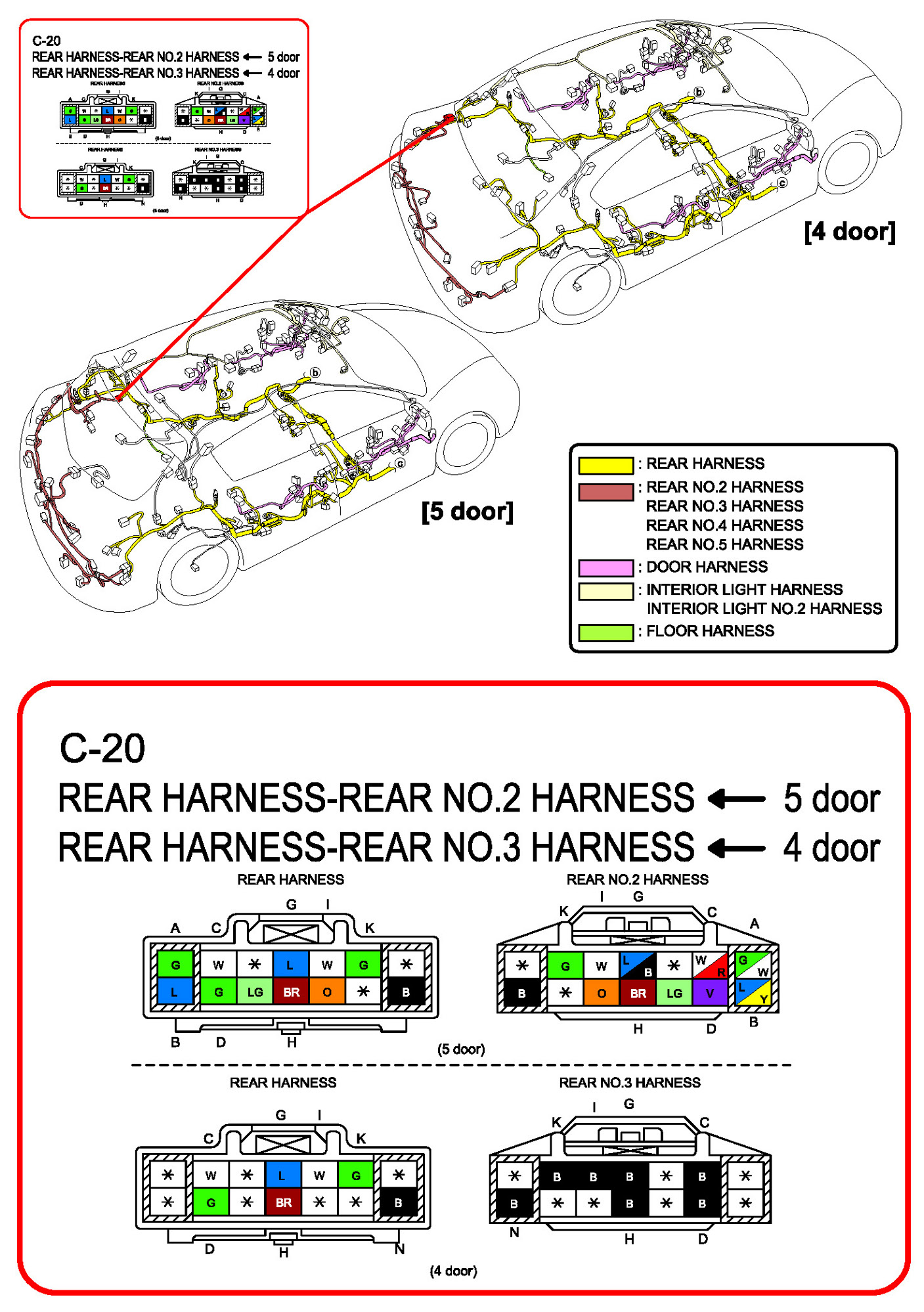

C-20 (Rear Harness-Rear No.2 Harness <-- 5 Door, Rear Harness-Rear No.3 Harness <-- 4 Door)
C-20 (Rear Harness-Rear No.2 Harness <-- 5 Door, Rear Harness-Rear No.3 Harness <-- 4 Door)
