Front Tilt Motor Inspection

FRONT TILT MOTOR INSPECTION

1. Remove the battery cover. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the negative battery cable and wait 1 min or more. Removal and Replacement Removal and Replacement Removal and Replacement

3. Disconnect the front tilt motor connector.

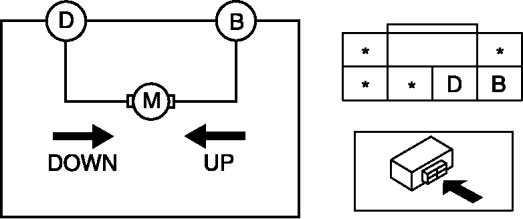

4. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation






- If not as specified, replace the front seat slide adjuster.
