Trunk End Trim Removal/Installation

TRUNK END TRIM REMOVAL/INSTALLATION

4SD

1. Remove the trunk mat. (See )

2. Remove the trunk board. (See )

3. Remove the fasteners.

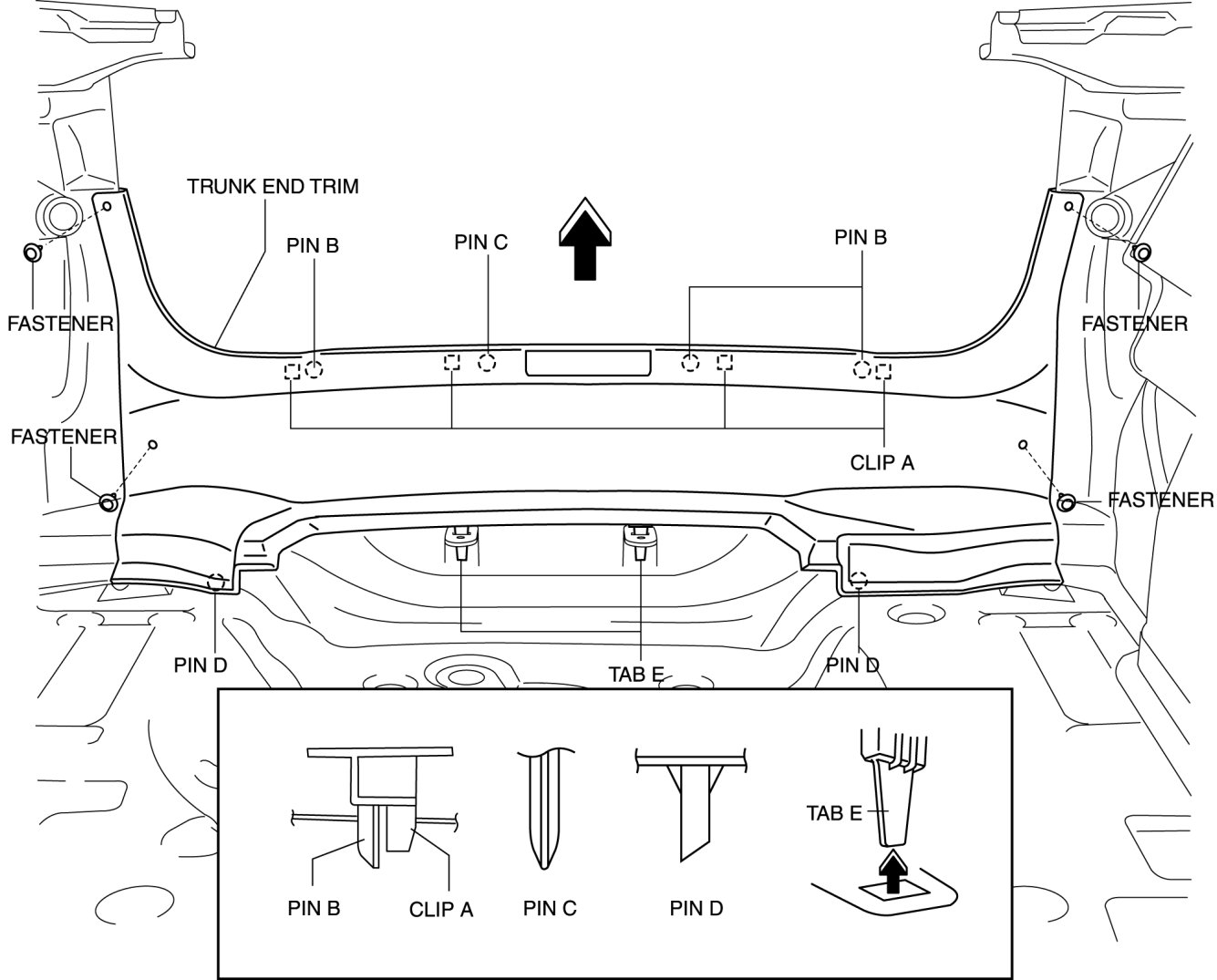

4. Pull the trunk end trim indicated in the arrow shown in the figure, then detach clips A, pins B, pin C, D and tabs E.






5. Remove the trunk end trim.

6. Install in the reverse order of removal.

5HB

1. Remove the trunk mat. (See )

2. Remove the trunk board. (See )

3. Remove the fasteners.

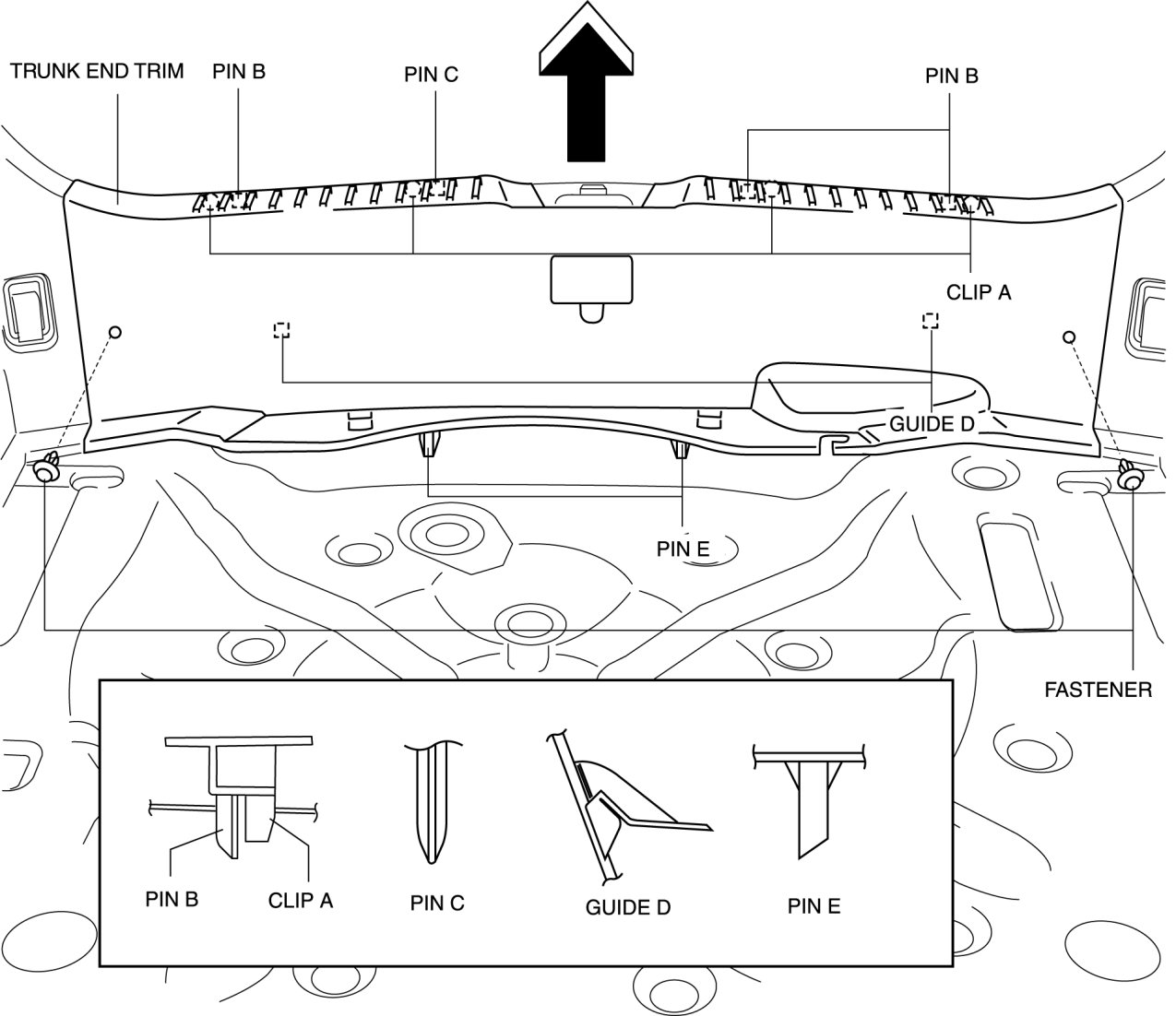

4. Pull the trunk end trim indicated in the arrow shown in the figure, then detach clips A, pins B, pin C, guides D and pins E.






5. Remove the trunk end trim.

6. Install in the reverse order of removal.
