Cabin Noise Sensor: Service and Repair

(R)

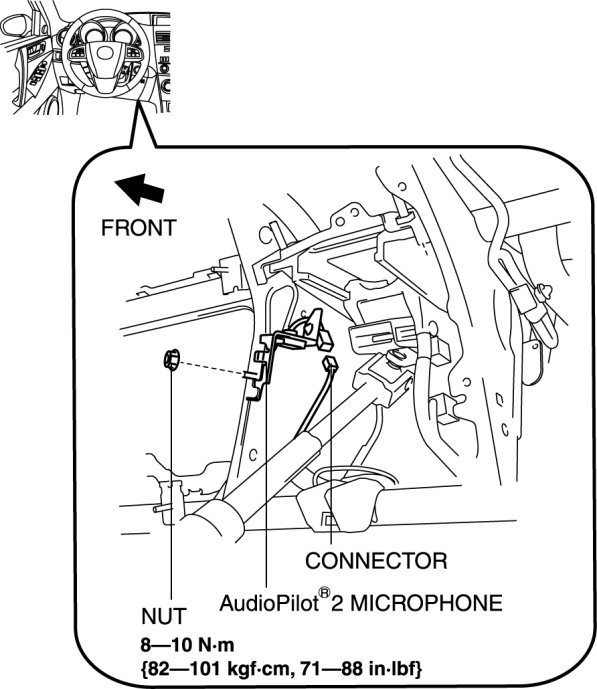

AudioPilot(R)2 MICROPHONE REMOVAL/INSTALLATION

NOTE:
- AudioPilot(R) 2 is a registered trademark of Bose(R) Corporation.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Disconnect the connector.

3. Remove the nut.






4. Remove the AudioPilot(R) 2 microphone.

5. Install in the reverse order of removal.
