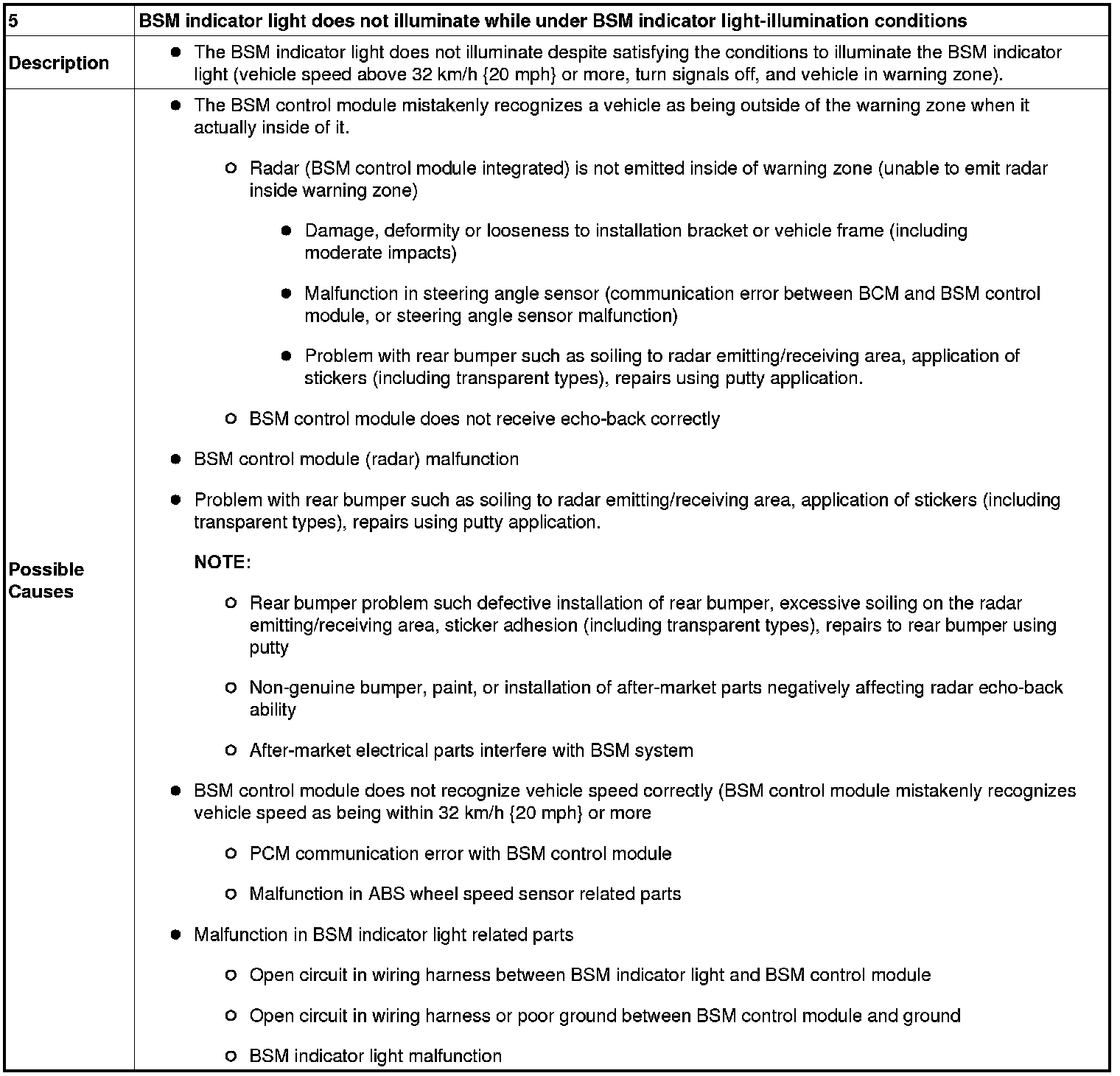

No. 5 BSM Indicator Light Does Not Illuminate While Under BSM Indicator Light-Illumination Conditions





NO.5 BSM INDICATOR LIGHT DOES NOT ILLUMINATE WHILE UNDER BSM INDICATOR LIGHT-ILLUMINATION CONDITIONS [BLIND SPOT MONITORING (BSM)]

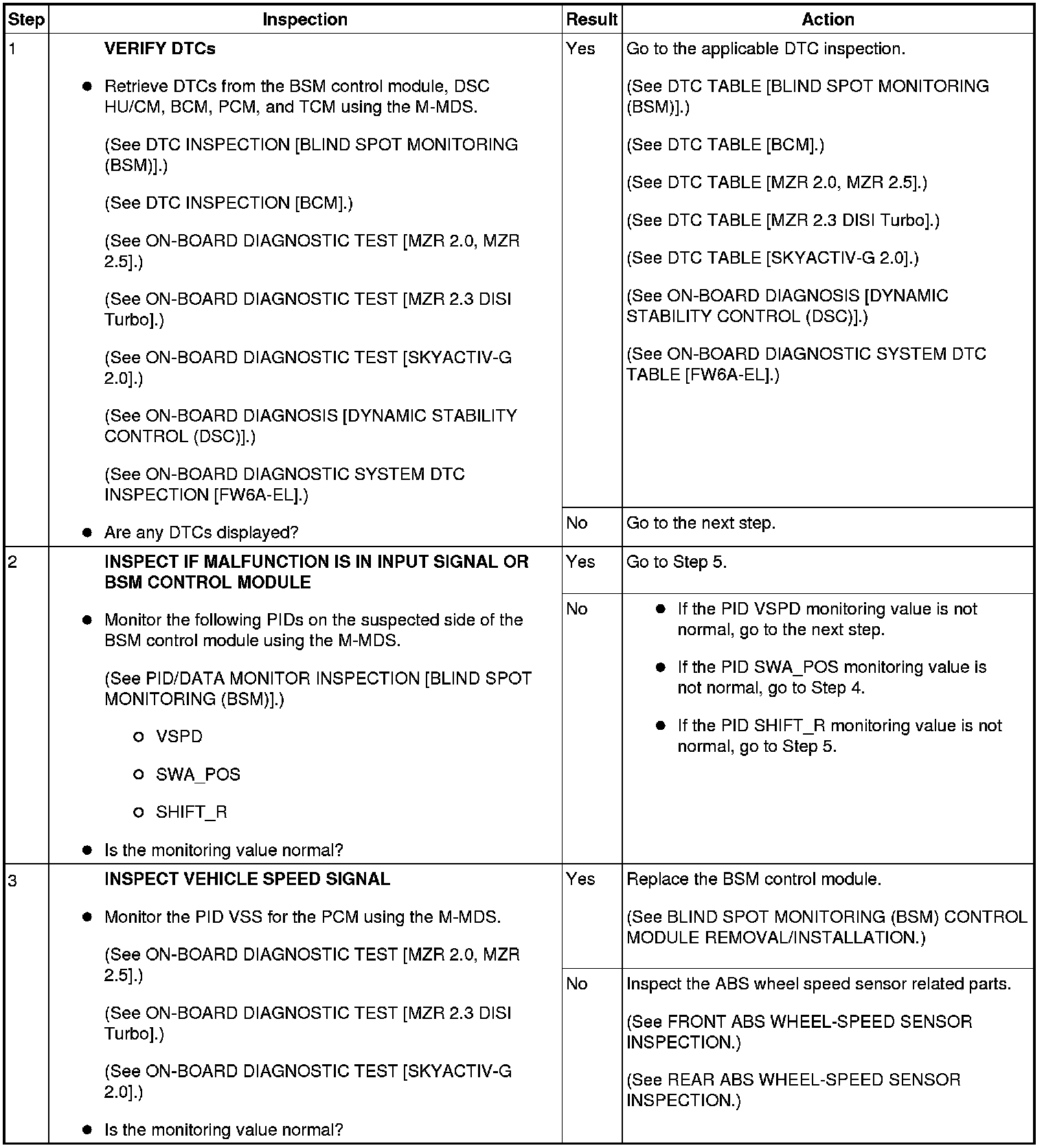

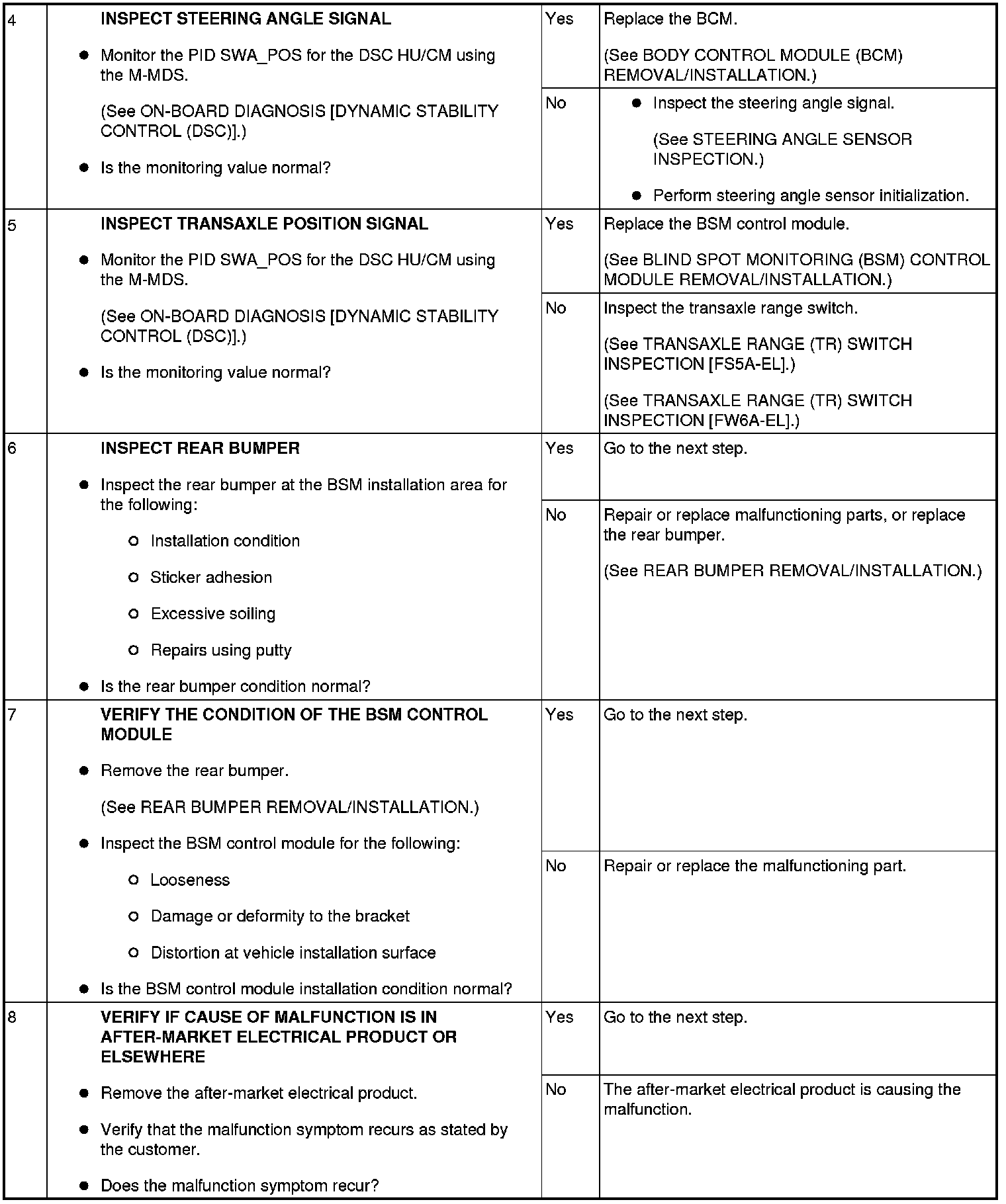

Diagnostic Procedure
