ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. A-pillar trim (RH) A-Pillar Trim Removal/Installation

b. Rear seat cushion (4SD) Rear Seat Cushion Removal/Installation

c. Rear scuff plate (RH) Rear Scuff Plate Removal/Installation

d. Tire house trim (RH) Tire House Trim Removal/Installation

e. Trunk side upper trim (5HB, RH)

f. Trunk side trim (5HB, RH)

g. C-pillar trim (RH) C-Pillar Trim Removal/Installation

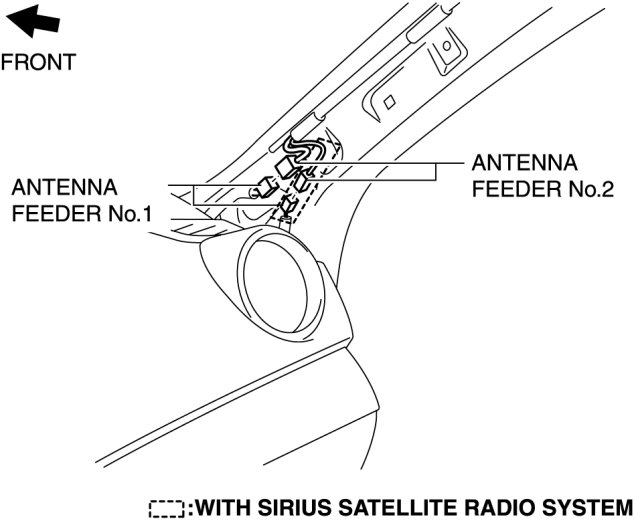

3. Disconnect the antenna feeder No.1.

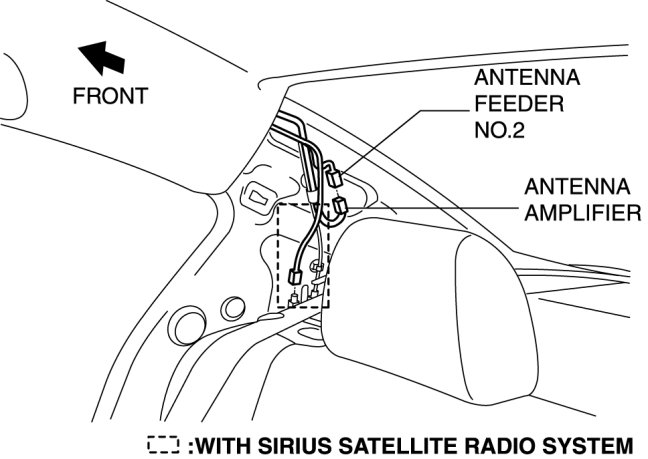

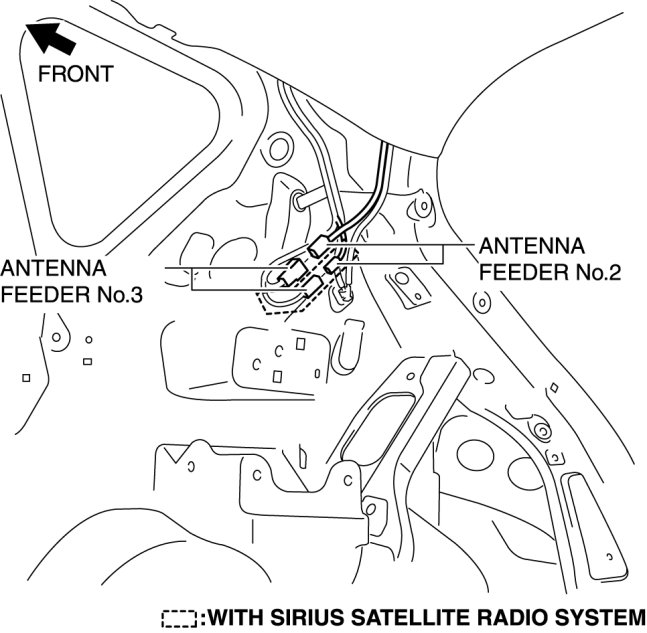

4. Disconnect the antenna amplifier (4SD)/ antenna feeder No.3 (5HB).
4SD





5HB

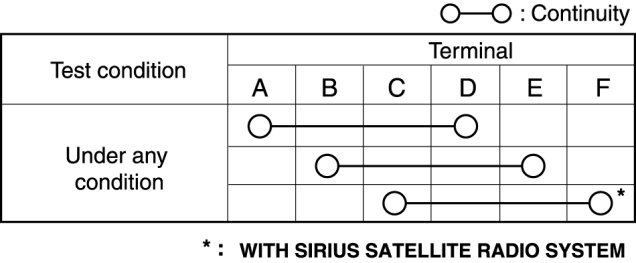

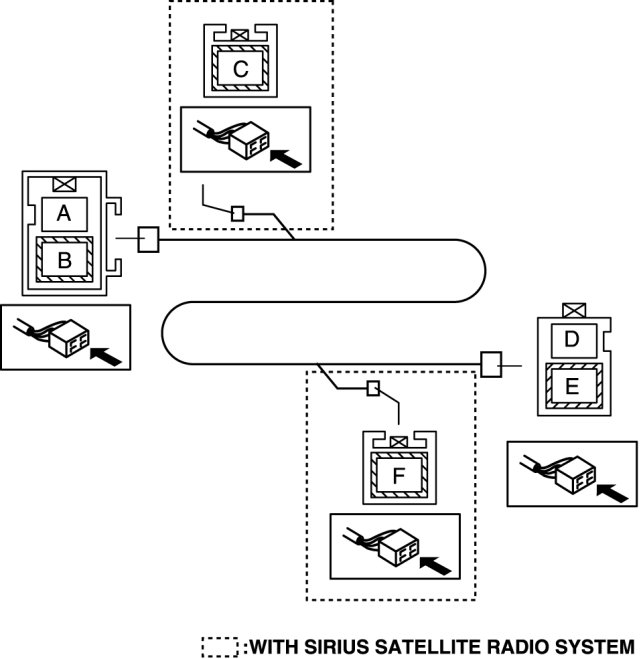

5. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.2.
