Brake Switch Inspection (MTX)

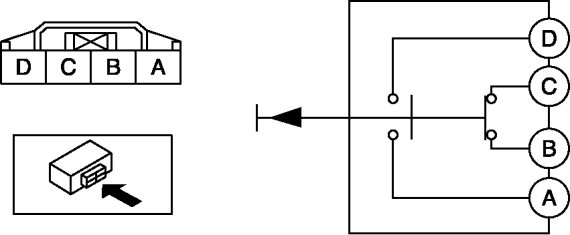

BRAKE SWITCH INSPECTION [MTX]

CAUTION:
- Inspect the brake switch with it installed to the brake pedal, otherwise the brake switch may not operate normally after inspection. If the brake switch is removed from the brake pedal, replace the brake switch with a new one.

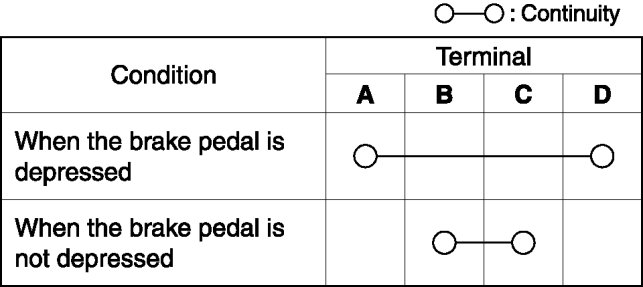

1. Verify that the continuity is as indicated in the table.











- If not as indicated in the table, replace the brake switch. Service and Repair
