Backup Lamp Switch: Service and Repair

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [F35M-R]

1. Disconnect the negative battery cable. Removal and Replacement

2. Drain the transaxle oil. Transaxle Oil Replacement

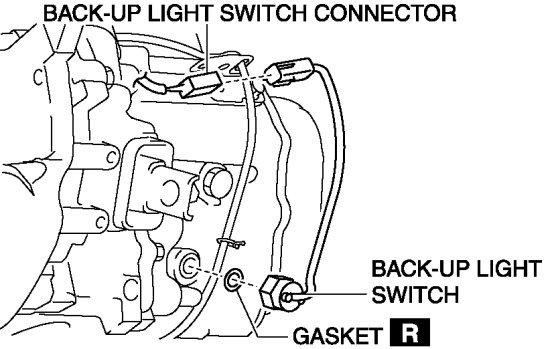

3. Disconnect the back-up light switch connector.






4. Remove the back-up light switch.

5. Install the back-up light switch (with a new gasket) to the transaxle case.

Tightening torque
- 20-29 Nm {2.1-2.9 kgf-m, 15-21 ft-lbf}

6. Add the specified amount and type of oil. Transaxle Oil Replacement

7. Connect the negative battery cable. Removal and Replacement
