Rear Buckle Removal/Installation

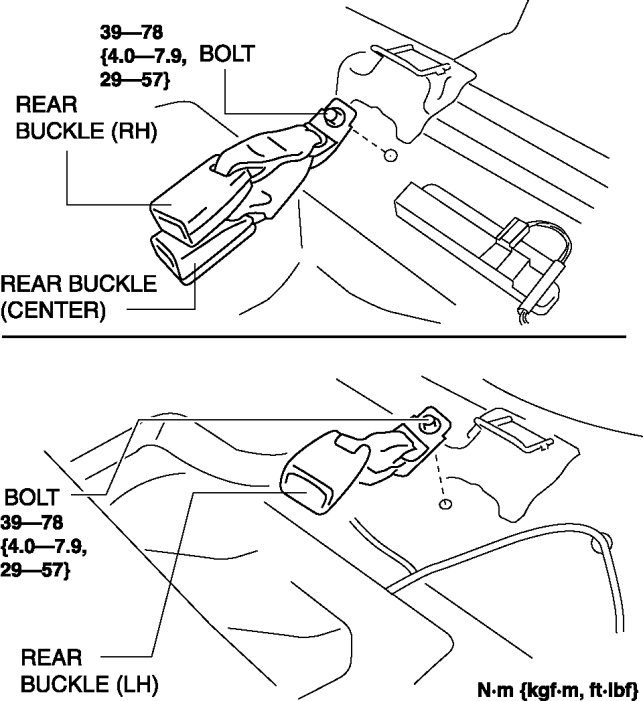

REAR BUCKLE REMOVAL/INSTALLATION

1. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

2. Remove the bolts.






3. Remove the rear buckle (RH) and rear buckle (center).

4. Remove the rear buckle (LH).

5. Install in the reverse order of removal.
