Home >> Mazda >> 2012 >> 2 L4-1.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 6 Instrument Cluster Illumination Does Not Illuminate

No. 6 Instrument Cluster Illumination Does Not Illuminate





NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE [INSTRUMENT CLUSTER]

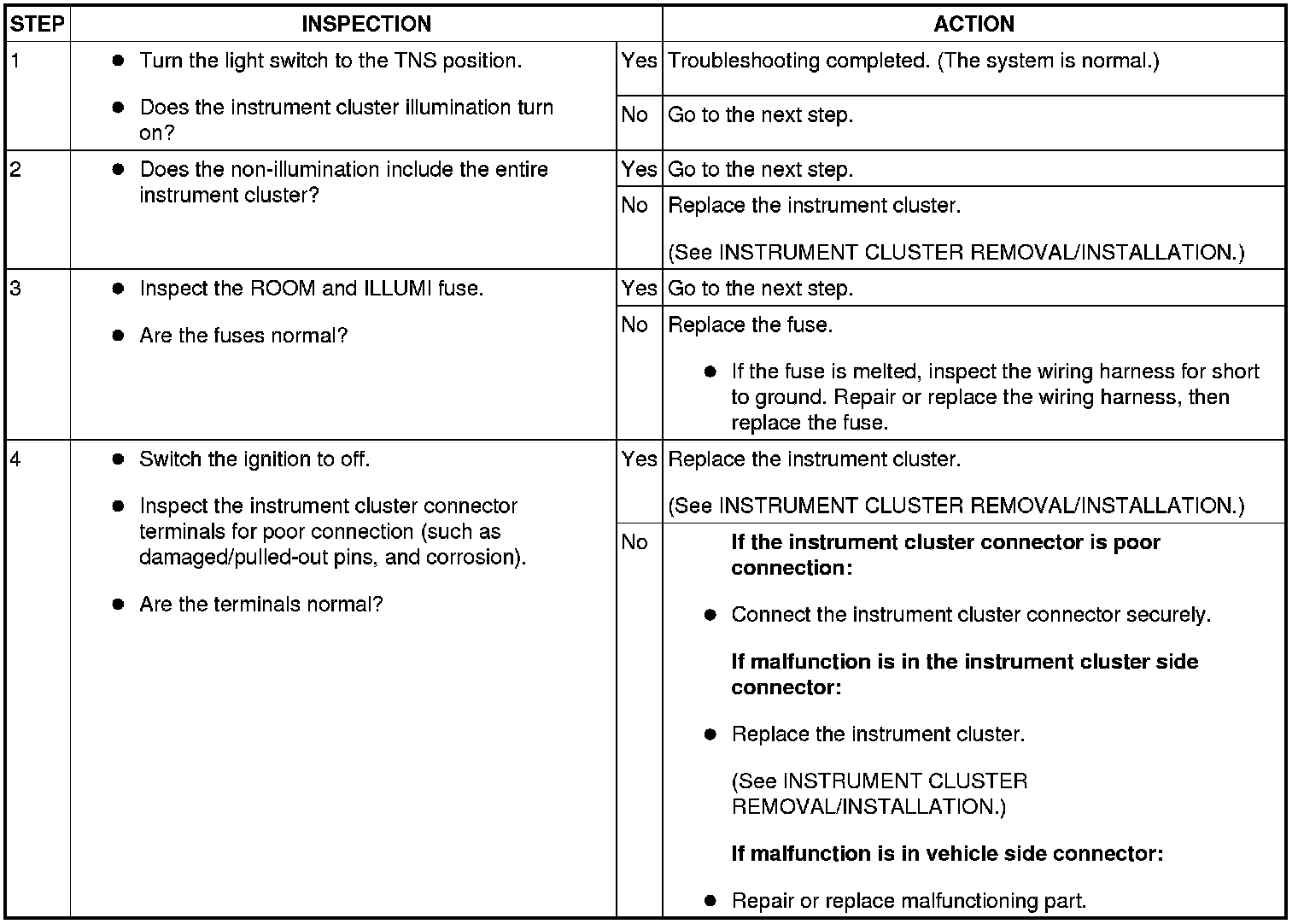

Diagnostic procedure
