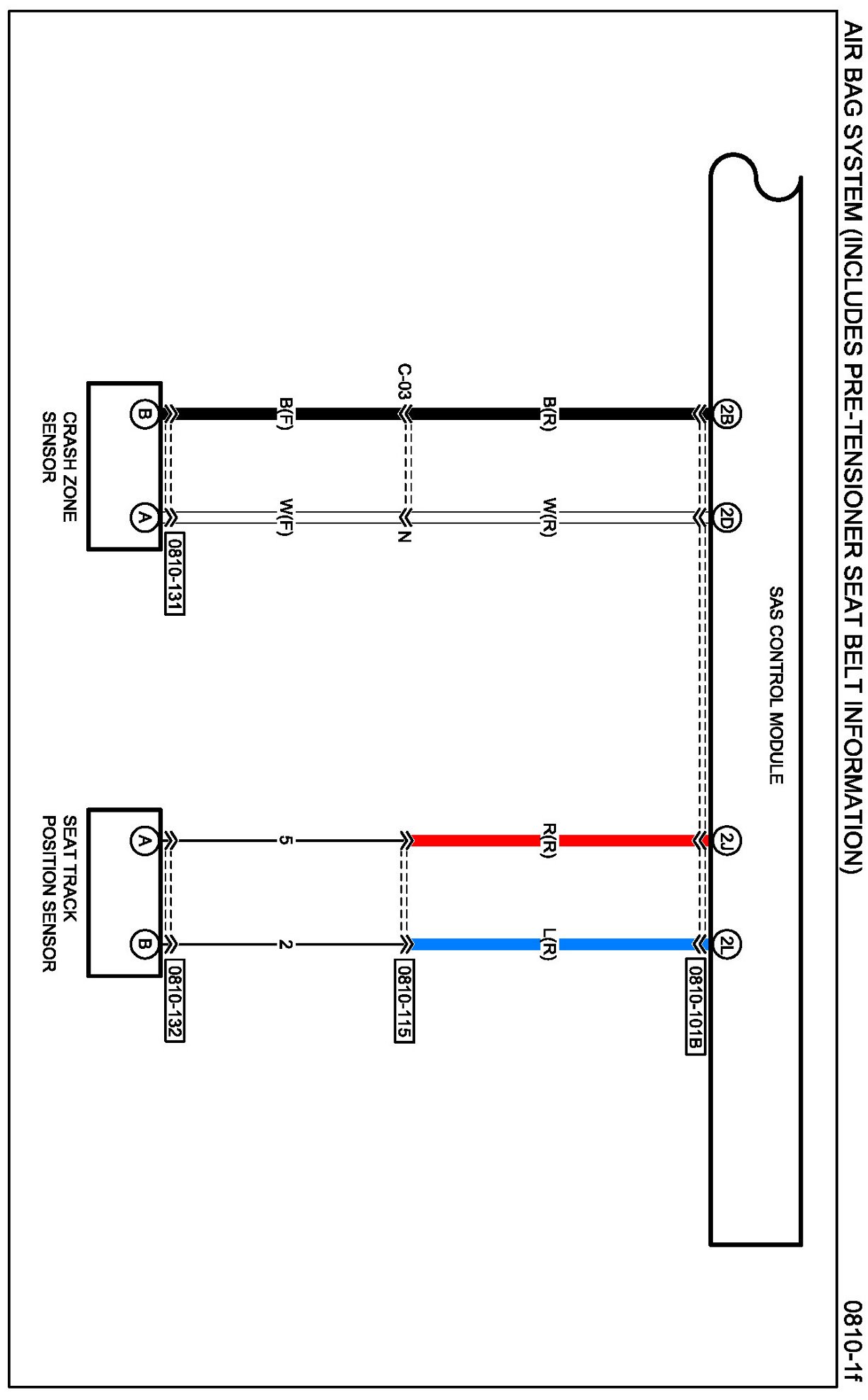

Diagram 0810-1f (Air Bag System (Includes Pre-Tensioner Seat Belt Information))
Diagram 0810-1f (Air Bag System (Includes Pre-Tensioner Seat Belt Information))
Diagram 0810-1f:
