B-Pillar Lower Trim Removal/Installation

B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

1. Remove the front scuff plate. Front Scuff Plate Removal/Installation

2. Remove the rear scuff plate. Rear Scuff Plate Removal/Installation

3. Partially peel back the seaming welt.

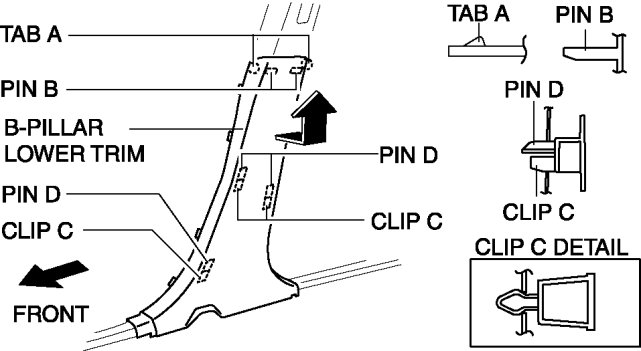

4. Pull the B-pillar lower trim in the direction of the arrow shown in the figure, detach tabs A, pins B, clips C, pins D, then remove the B-pillar lower trim.






5. Install in the reverse order of removal.
