Glove Compartment: Service and Repair

GLOVE COMPARTMENT REMOVAL/INSTALLATION

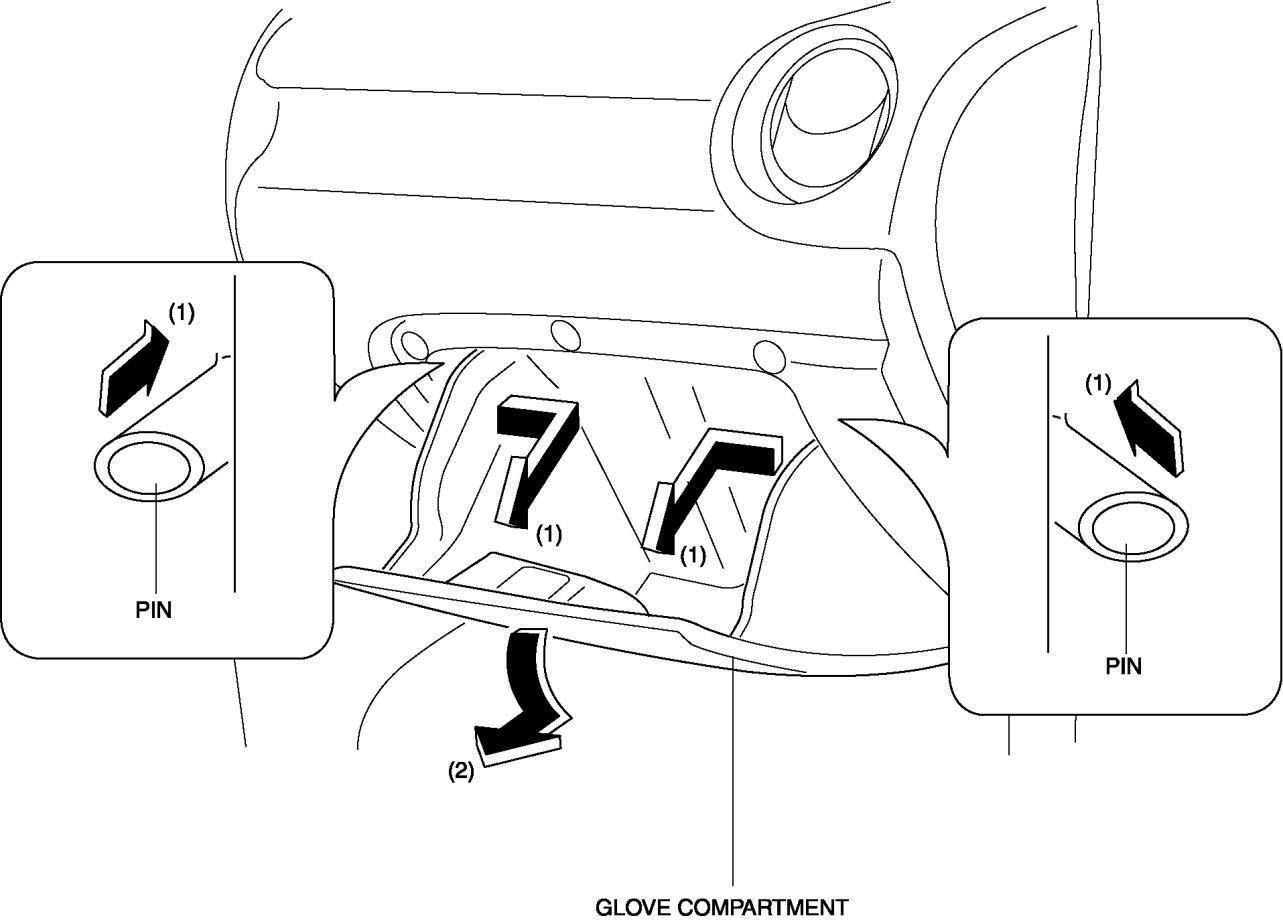

1. Push both ends of the inner-side glove compartment in the direction of the arrow (1) shown in the figure, detach the pins from the dashboard, and remove the glove compartment in the direction of the arrow (2).






2. Install in the reverse order of removal.
