Antenna Feeder No. 1 Inspection

ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Front side trim Front Side Trim Removal/Installation

c. Rear console Rear Console Removal/Installation

d. Side wall Side Wall Removal/Installation

e. Shift lever knob (MTX) Service and Repair

f. Front console component Front Console Component Removal/Installation

g. Glove compartment Service and Repair

h. Lower panel Lower Panel Removal/Installation

i. Center panel unit Center Panel Unit Removal/Installation

j. A-pillar trim (RH) A-Pillar Trim Removal/Installation

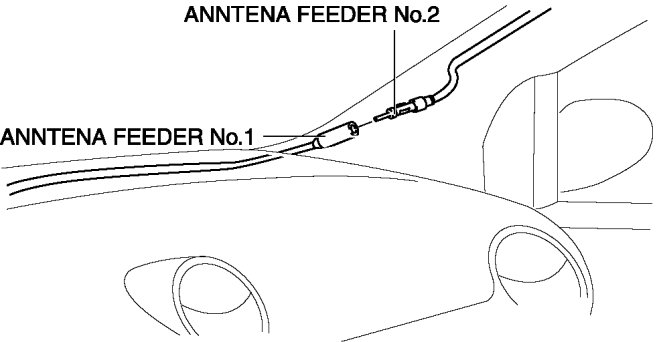

3. Disconnect antenna feeder No.2.

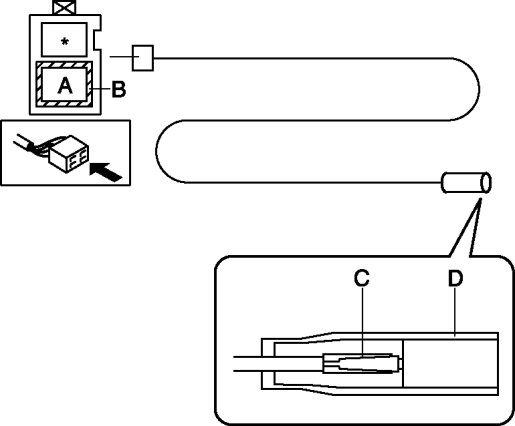

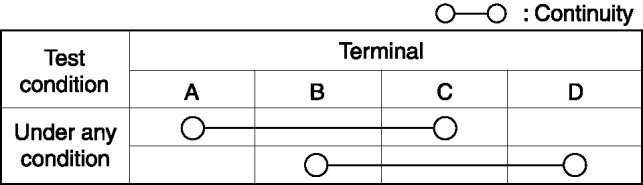

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.1.
