Antenna Feeder No. 1 Removal/Installation
ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Glove compartment Service and Repair
b. Dashboard under cover Dashboard Under Cover Removal/Installation
c. Heat duct (passenger side) Heater Duct Component Removal/Installation
d. Rear console Rear Console Removal/Installation
e. Shift lever knob (MTX) Service and Repair
f. Side wall Side Wall Removal/Installation
g. Front console component Front Console Component Removal/Installation
h. Front scuff plate Front Scuff Plate Removal/Installation
i. Front side trim Front Side Trim Removal/Installation
j. Hood release lever Service and Repair
k. Driver-side lower panel Lower Panel Removal/Installation
l. Knee bolster Knee Bolster Removal/Installation
m. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation
n. Steering wheel Service and Repair
o. Column cover Service and Repair
p. Meter hood Meter Hood Removal/Installation
q. Instrument cluster Removal and Replacement
r. Combination switch Removal and Replacement
s. Center panel unit Center Panel Unit Removal/Installation
t. Climate control unit Removal and Replacement
u. Shift lever (MTX) Service and Repair
v. Selector lever (ATX) Service and Repair
w. Interlock cable Service and Repair
x. Passenger-side lower panel Lower Panel Removal/Installation
y. Side panel Side Panel Removal/Installation
z. A-pillar trim A-Pillar Trim Removal/Installation
aa. Windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation
ab. Cowl grille Cowl Grille Removal/Installation
ac. Sail garnish Service and Repair
ad. Windshield wiper motor Windshield Wiper Motor Removal/Installation
ae. Steering shaft cover Service and Repair
af. Steering shaft Service and Repair
ag. Dashboard Dashboard Removal/Installation

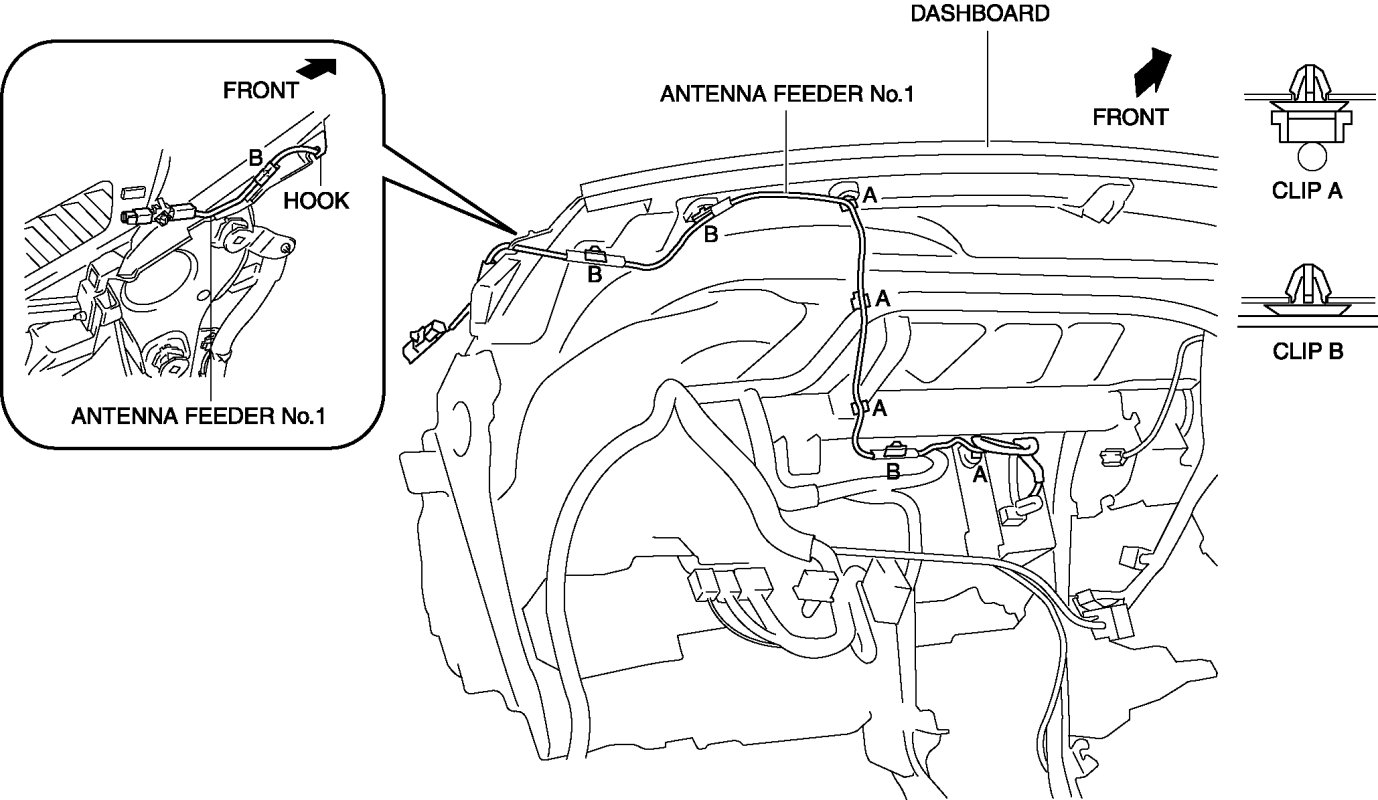

3. Remove clips A and B.
4. Remove the antenna feeder No.1 from the dashboard hook.
5. Remove antenna feeder No.1.
6. Install in the reverse order of removal.
