Pinpoint Test 3: No Power In Run

PINPOINT TEST 3: NO POWER IN RUN

Normal Operation

When the ignition switch is placed in RUN, fused ignition voltage is sent to:

- Smart junction box (SJB) J2280a pin 3, along circuit (V/G).
- SJB J2280e pin 1, along circuit (W/O).
- SJB J2280b pin 45, along circuit (W/O).
- Fuse 35 (10A) in the battery junction box (BJB) along circuit (W/O).

Possible Causes
- Wiring, terminals or connectors
- Ignition switch
- SJB

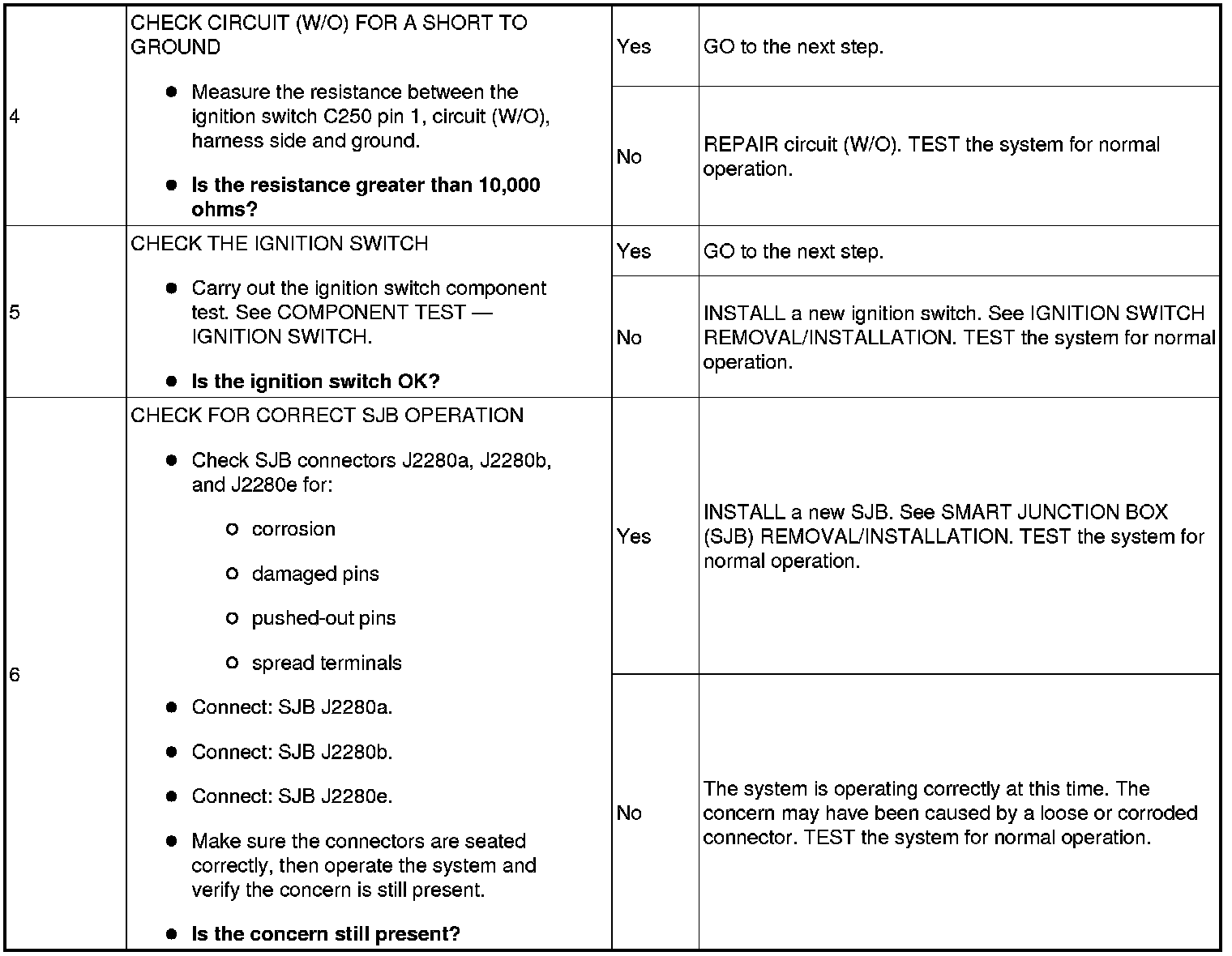

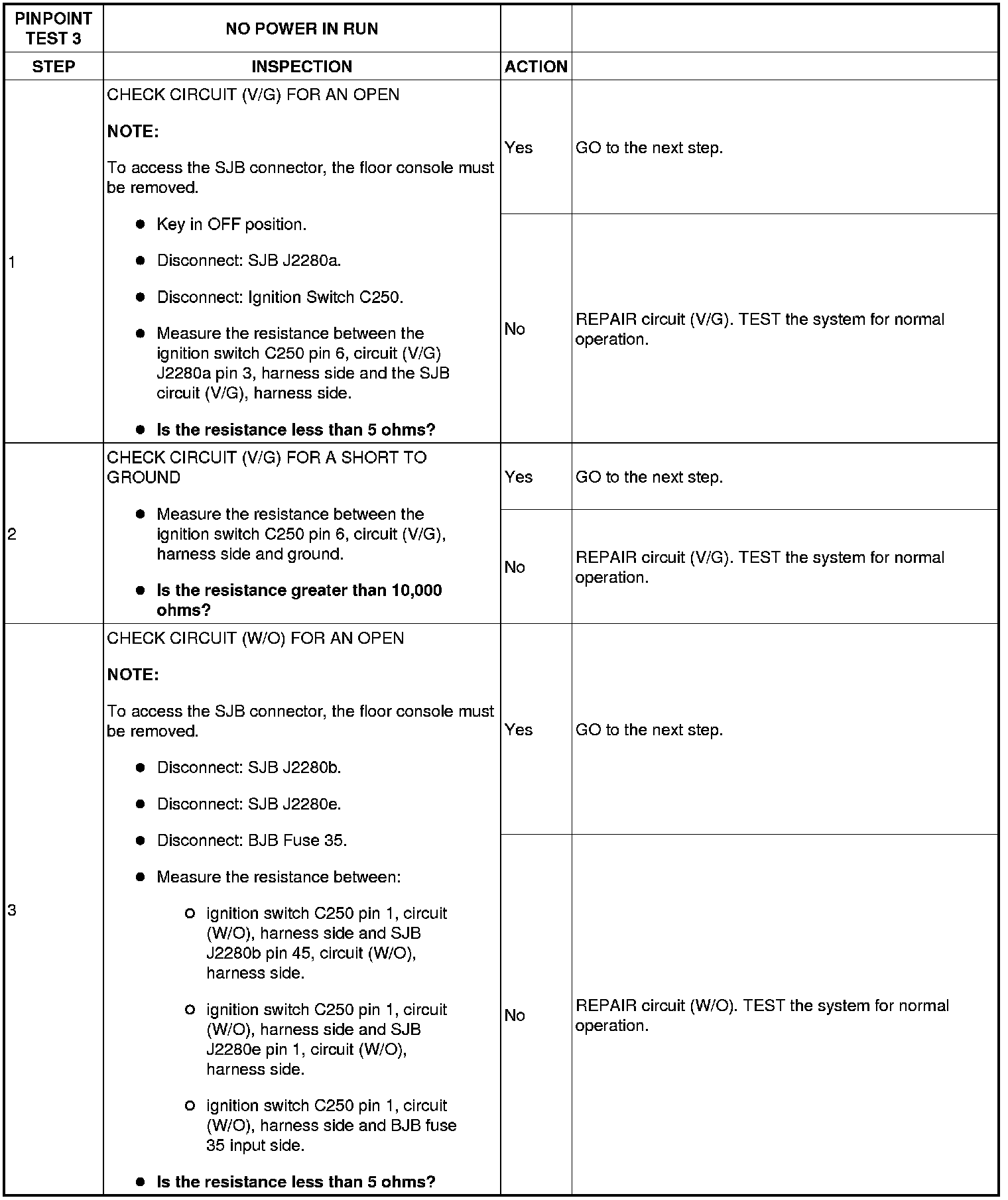

Diagnostic Procedure

CAUTION:Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
