Connector End Views - Parking, Rear And License Plate Lamps
Connector End Views - Parking, Rear And License Plate Lamps

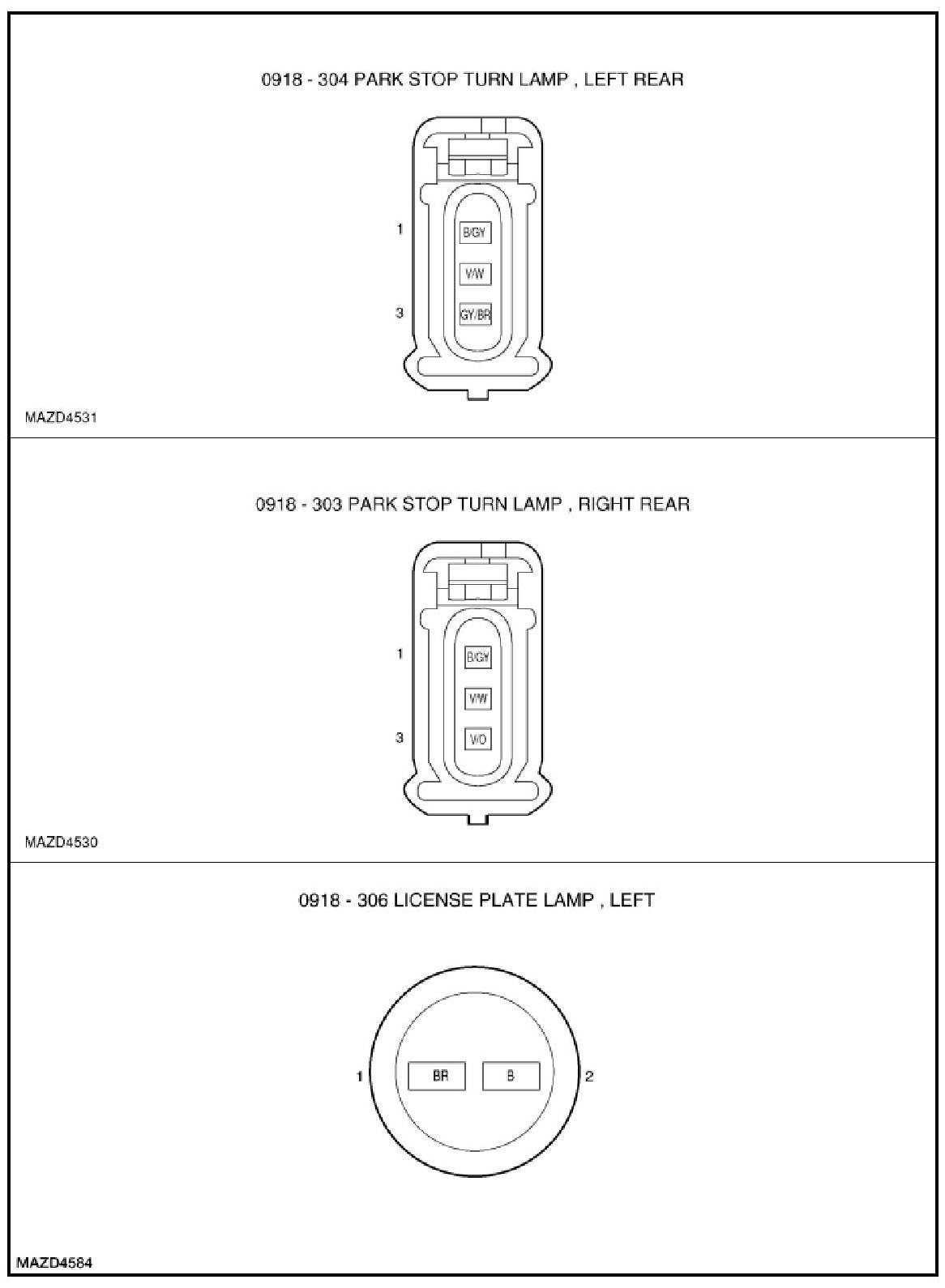

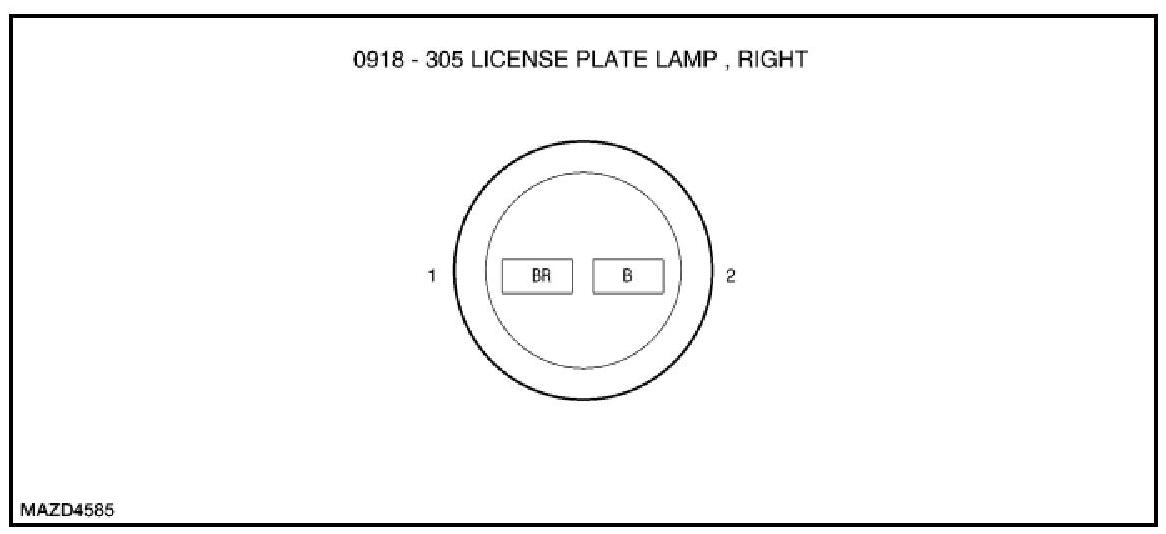

CONNECTOR END VIEWS - PARKING, REAR AND LICENSE PLATE LAMPS
