Wiper Pivot Arm - Front Removal/Installation

WIPER PIVOT ARM - FRONT REMOVAL/INSTALLATION

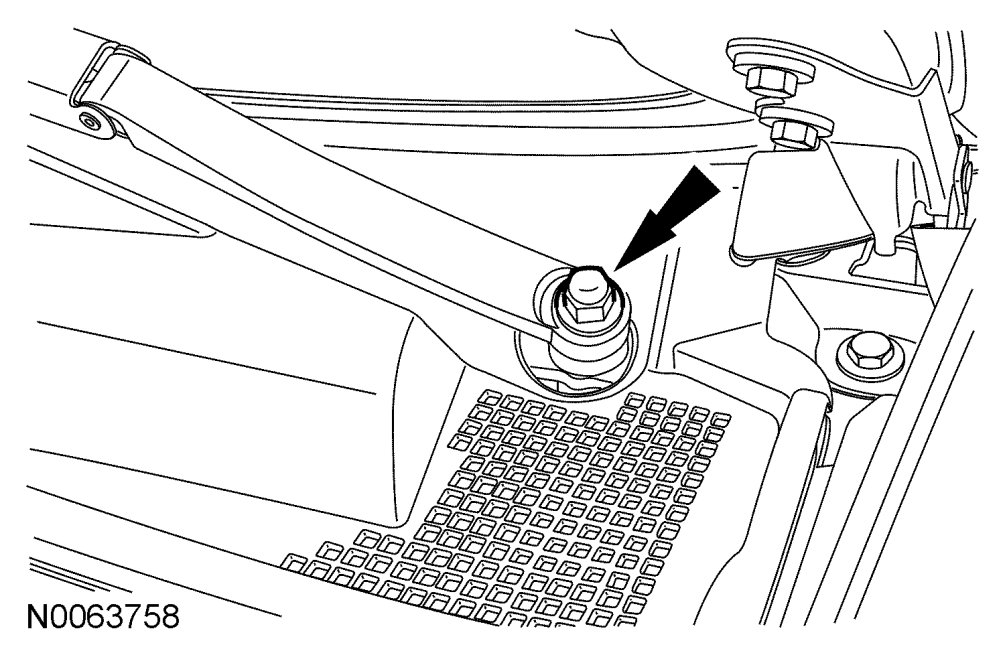

1. Remove the 2 wiper pivot arm nuts.

- To install, tighten to 40 Nm {4.0 kgf-m, 30 ft-lbf}.

NOTE:LH shown, RH similar.
2. Remove the LH and RH wiper pivot arms.

3. To install, reverse the removal procedure.

- Adjust the wiper pivot arms. See Windshield Wiper Blade And Pivot Arm Adjustment.
