Transmission Mode Switch: Testing and Inspection

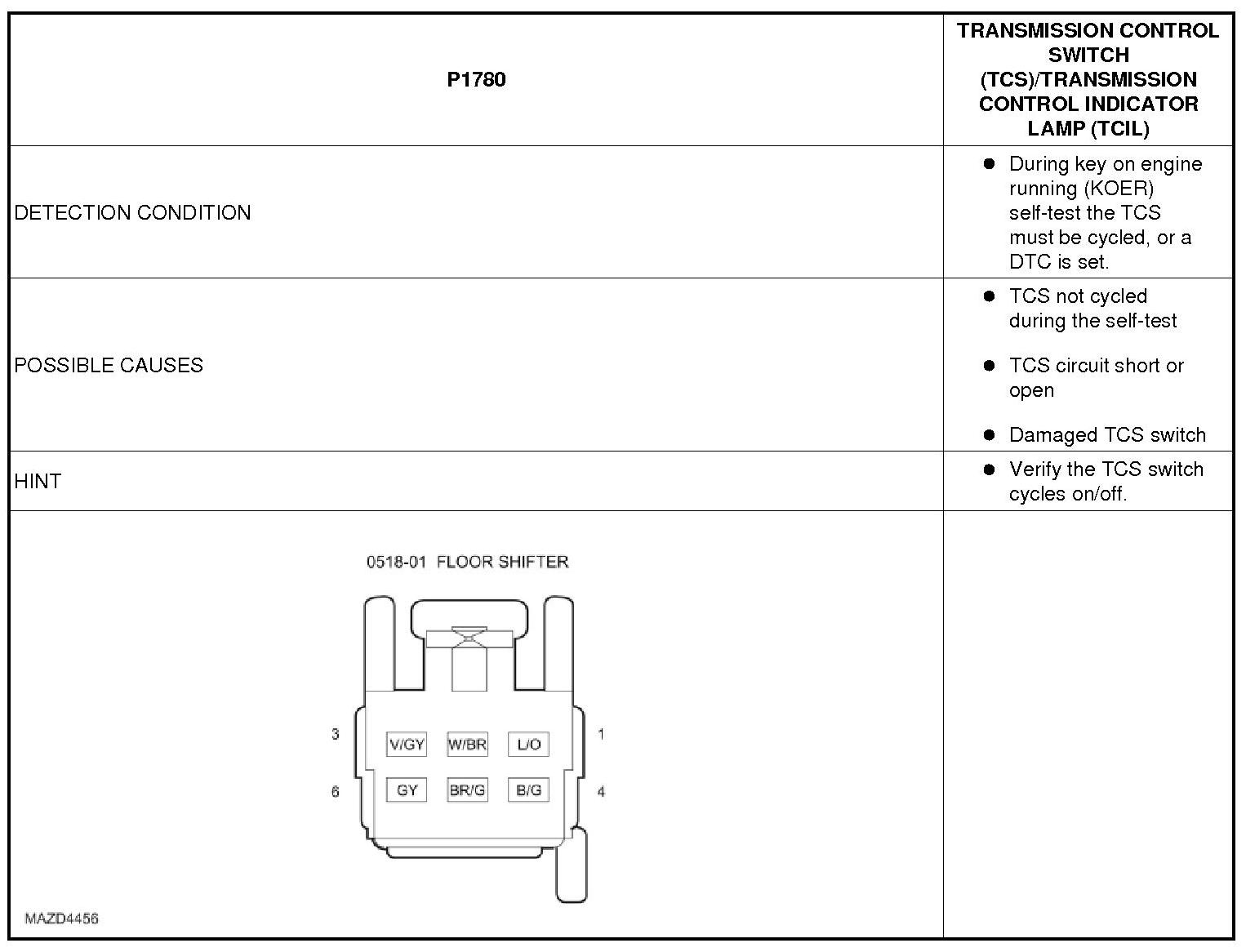

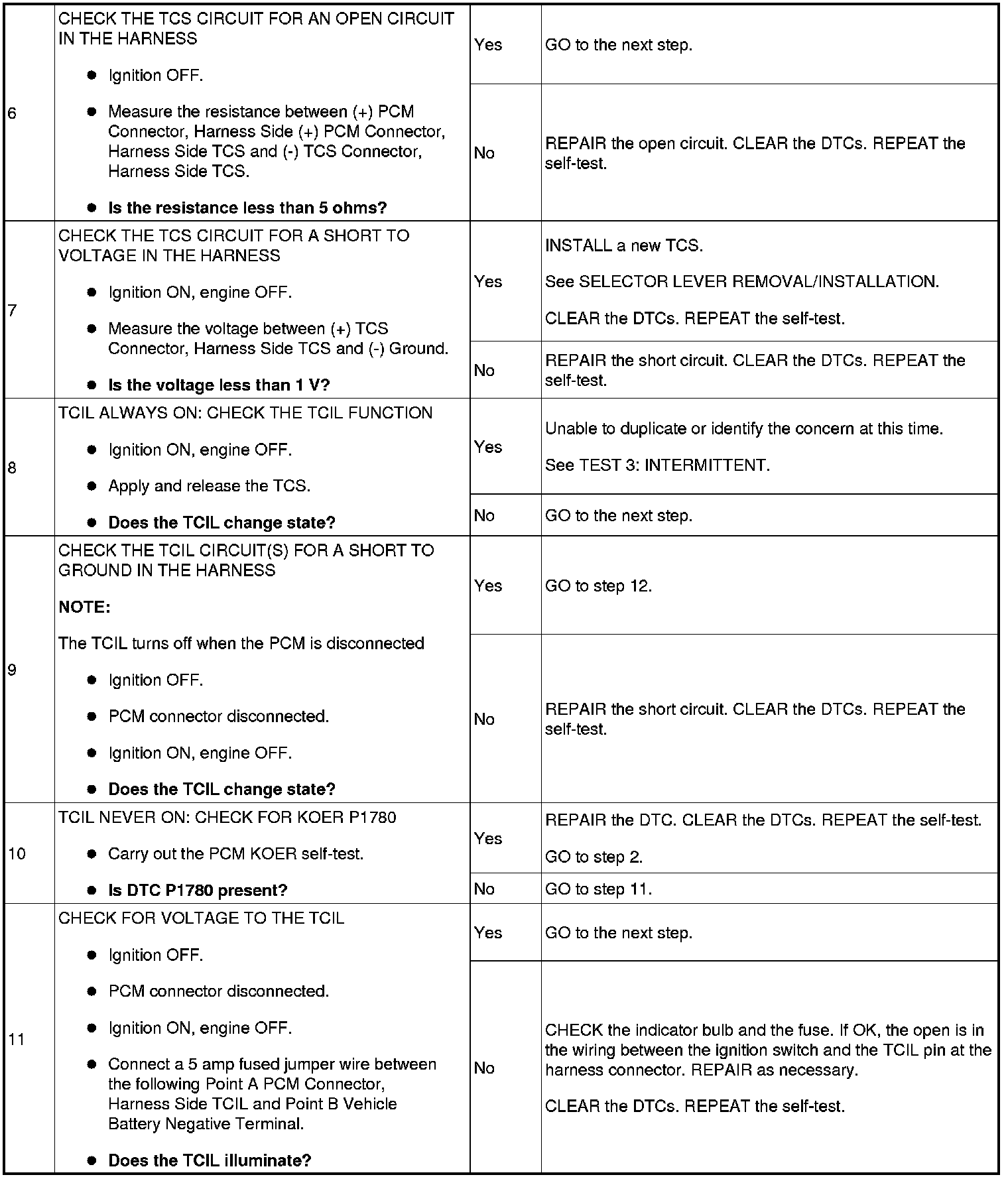

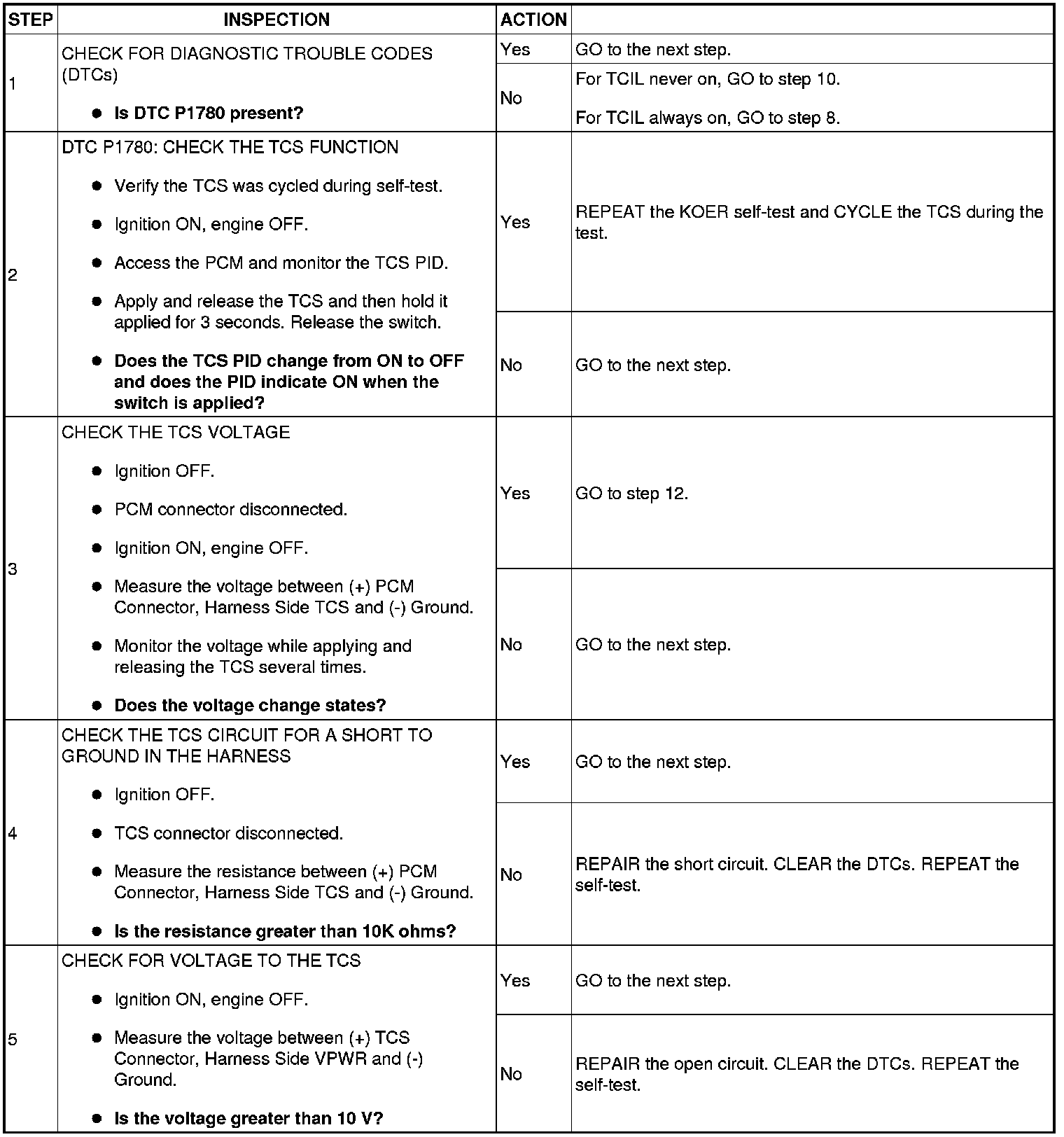

TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)
