Clutch

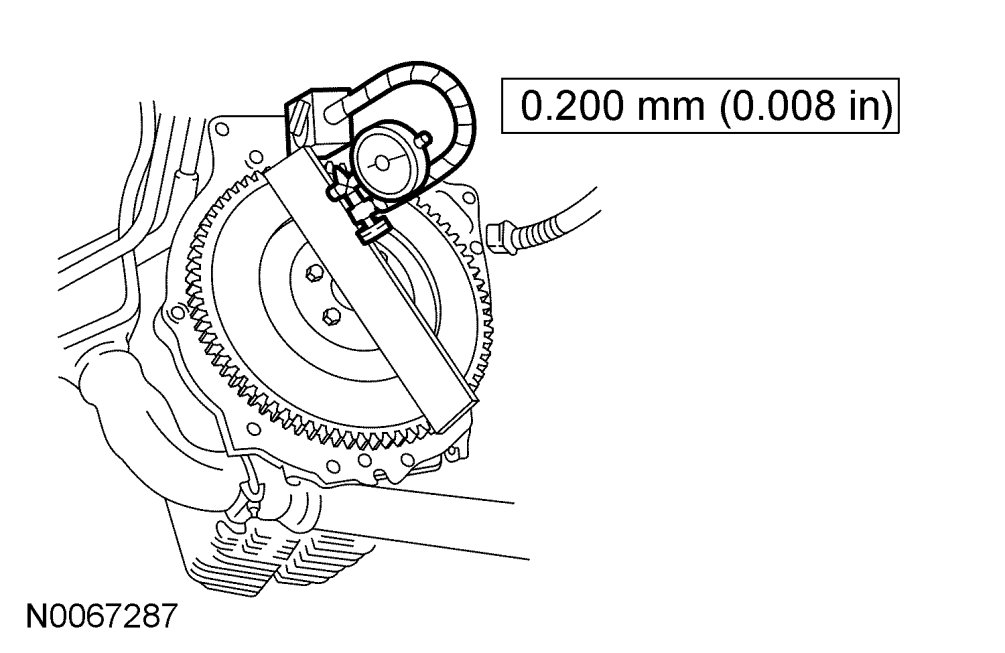

FLYWHEEL RUNOUT CHECK

1. Mount the special tool so that the indicator contact point rides on the straightedge which spans the clutch disc contact surface.





2. Rotate the flywheel and check the runout. If the runout exceeds the maximum allowance, install a new flywheel.
