Steering Column Multifunction Switch Removal/Installation

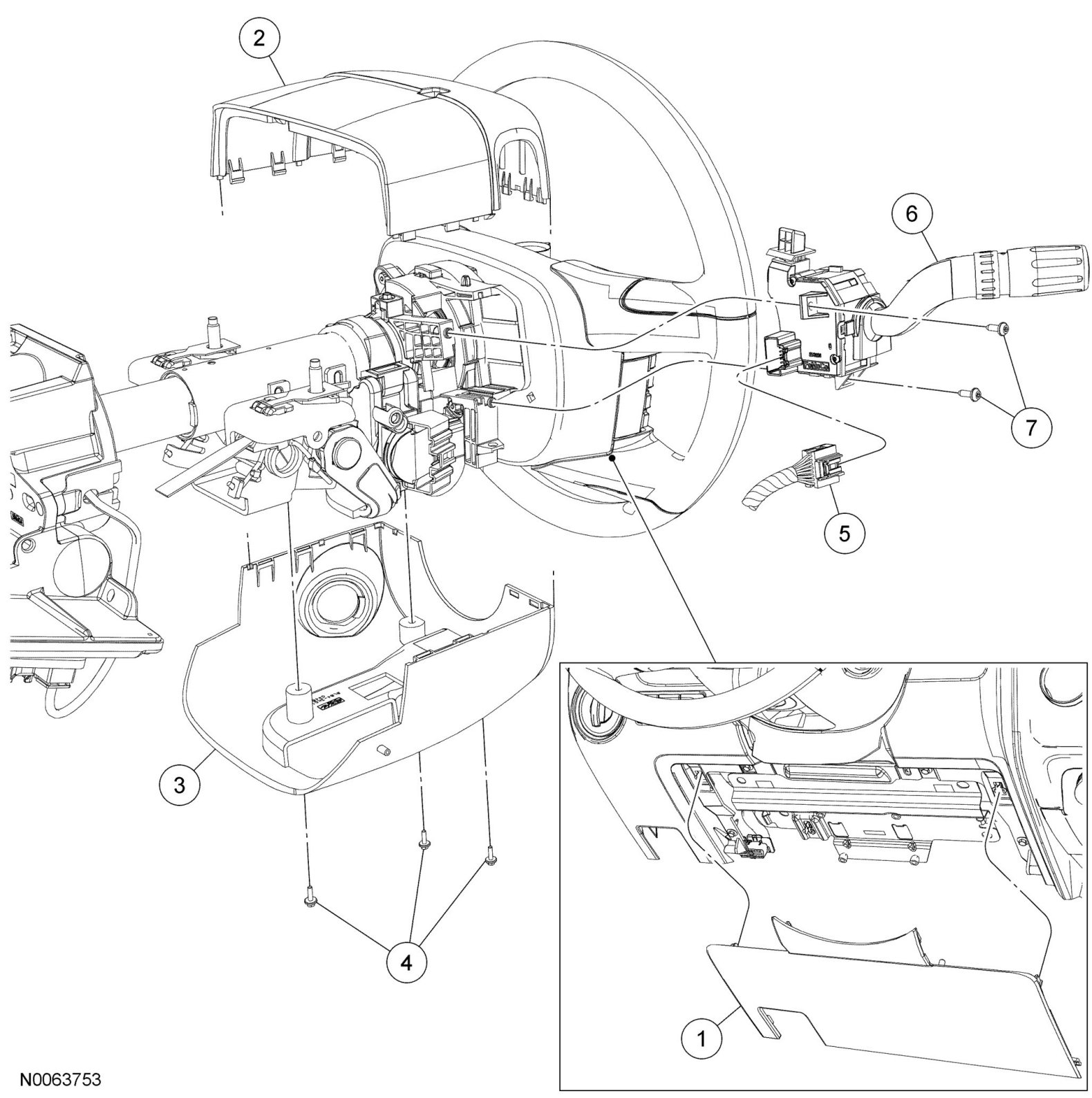

STEERING COLUMN MULTIFUNCTION SWITCH REMOVAL/INSTALLATION









1. Remove the steering column opening trim.

2. Remove the 3 lower steering column shroud screws.

3. Remove the upper and lower steering column shrouds.

4. Remove the 2 multifunction switch screws.

5. Disconnect the multifunction switch electrical connector and remove the switch.

6. To install, reverse the removal procedure.
