Pinpoint Test 8: An Individual Demand Lamp Is Inoperative

PINPOINT TEST 8: AN INDIVIDUAL DEMAND LAMP IS INOPERATIVE

Normal Operation

When the battery saver relay is energized, voltage is supplied to the demand lamps through circuit (Y/G). The demand lamps are provided ground through circuit (B/GY).

Possible Causes
- Wiring, terminals or connectors
- Sun visor
- Lamp assembly

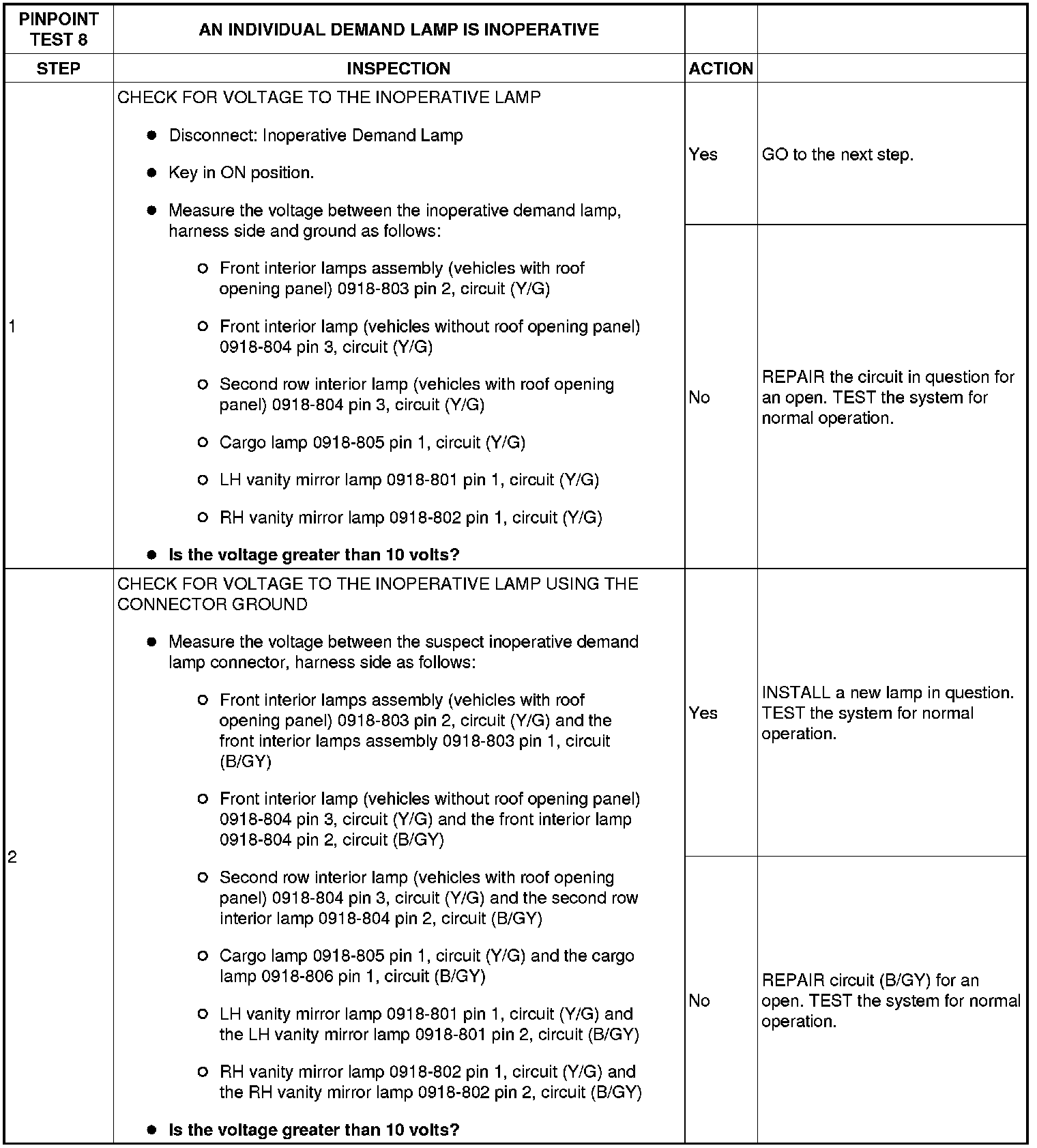

Diagnostic Procedure

CAUTION:Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
