Connector End Views - Interior Lighting
Connector End Views - Interior Lighting

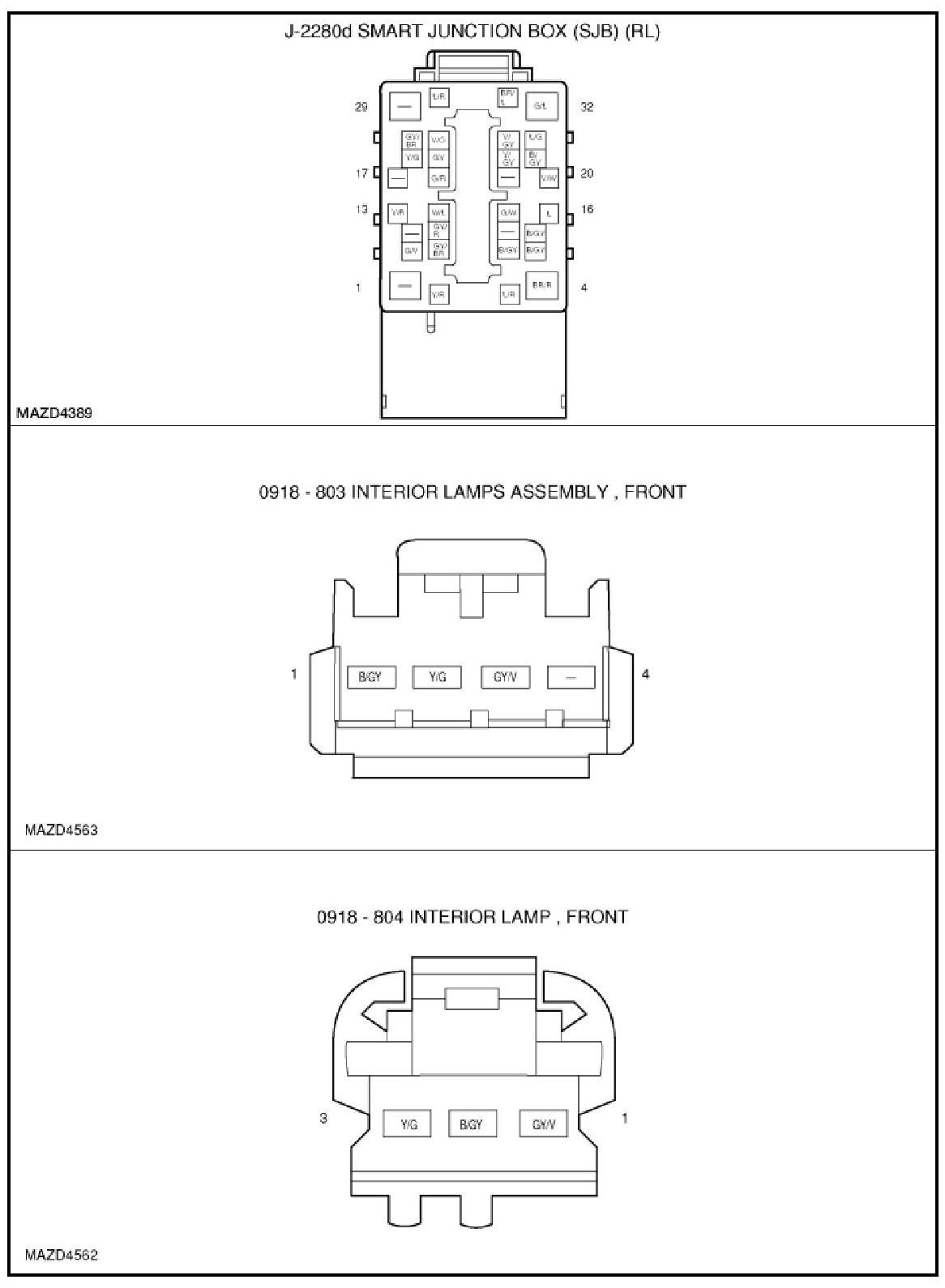

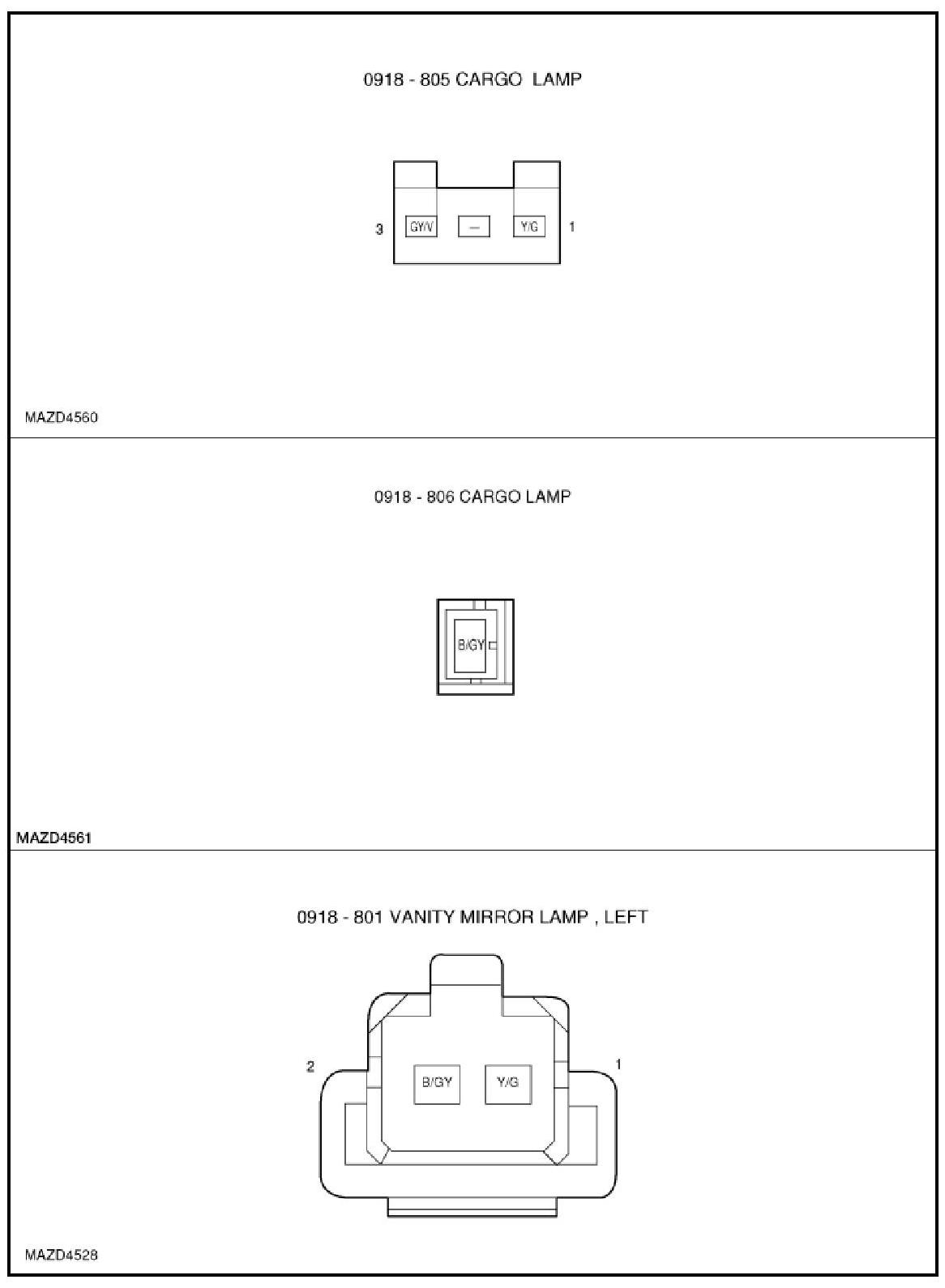

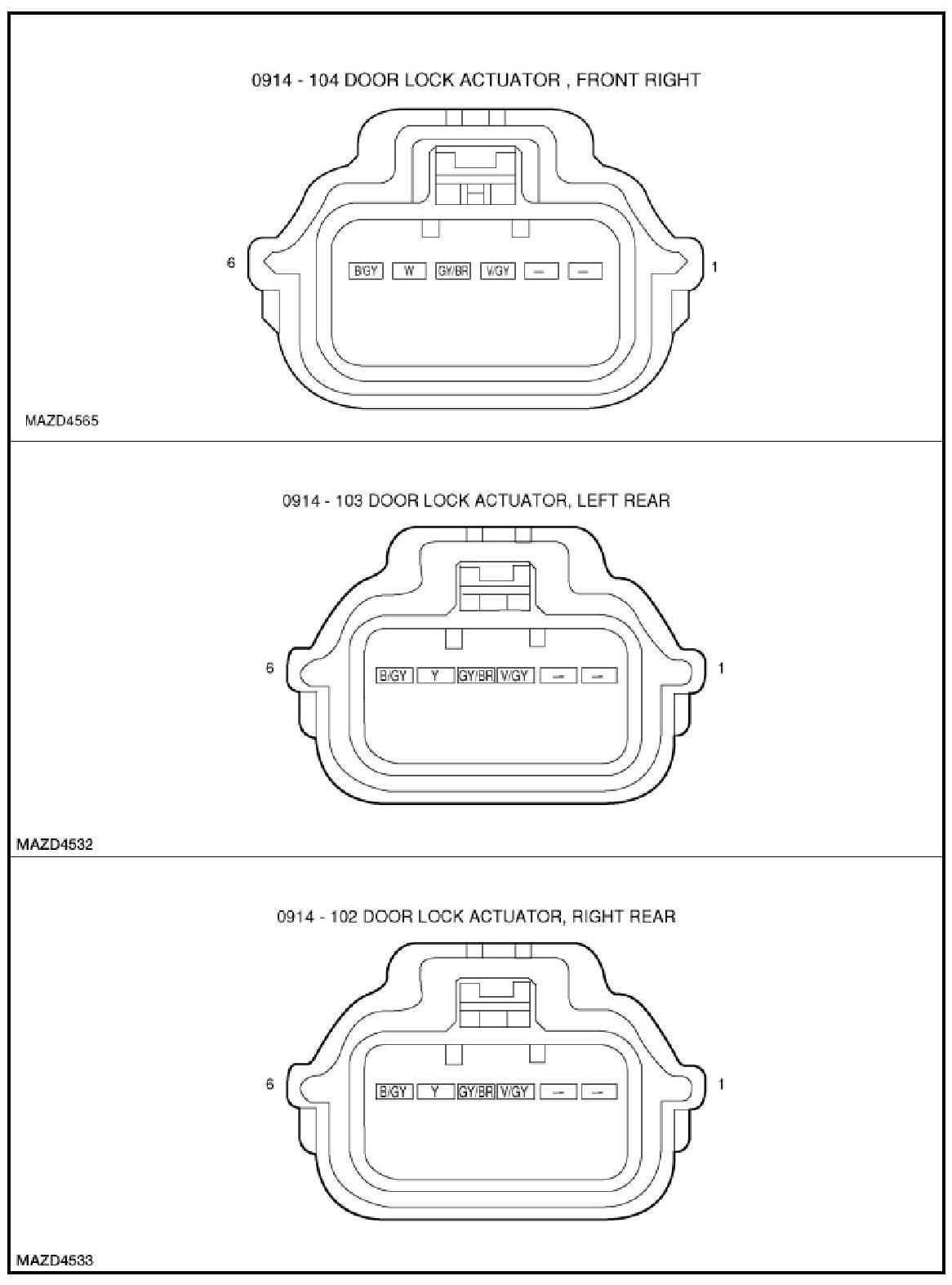

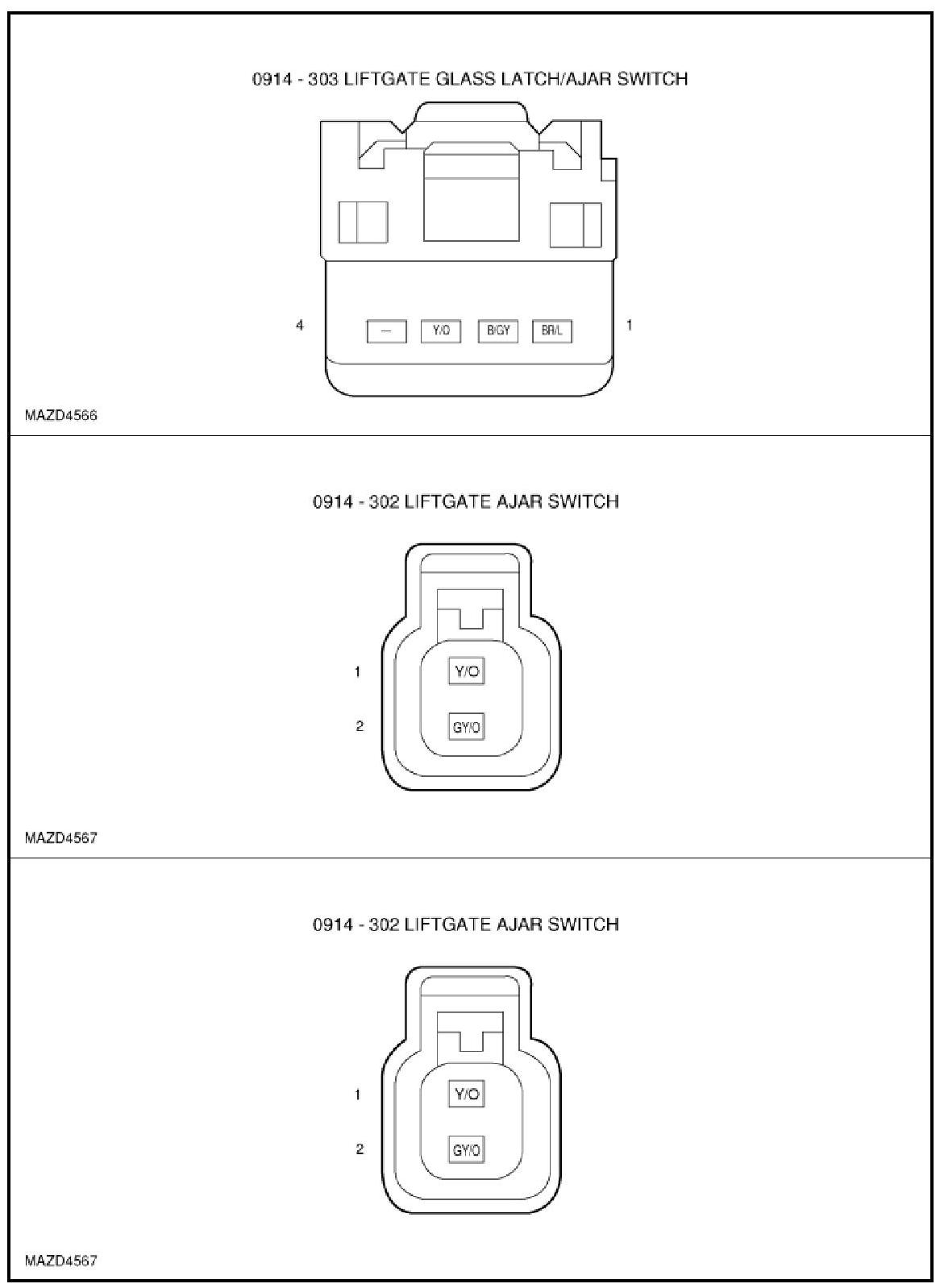

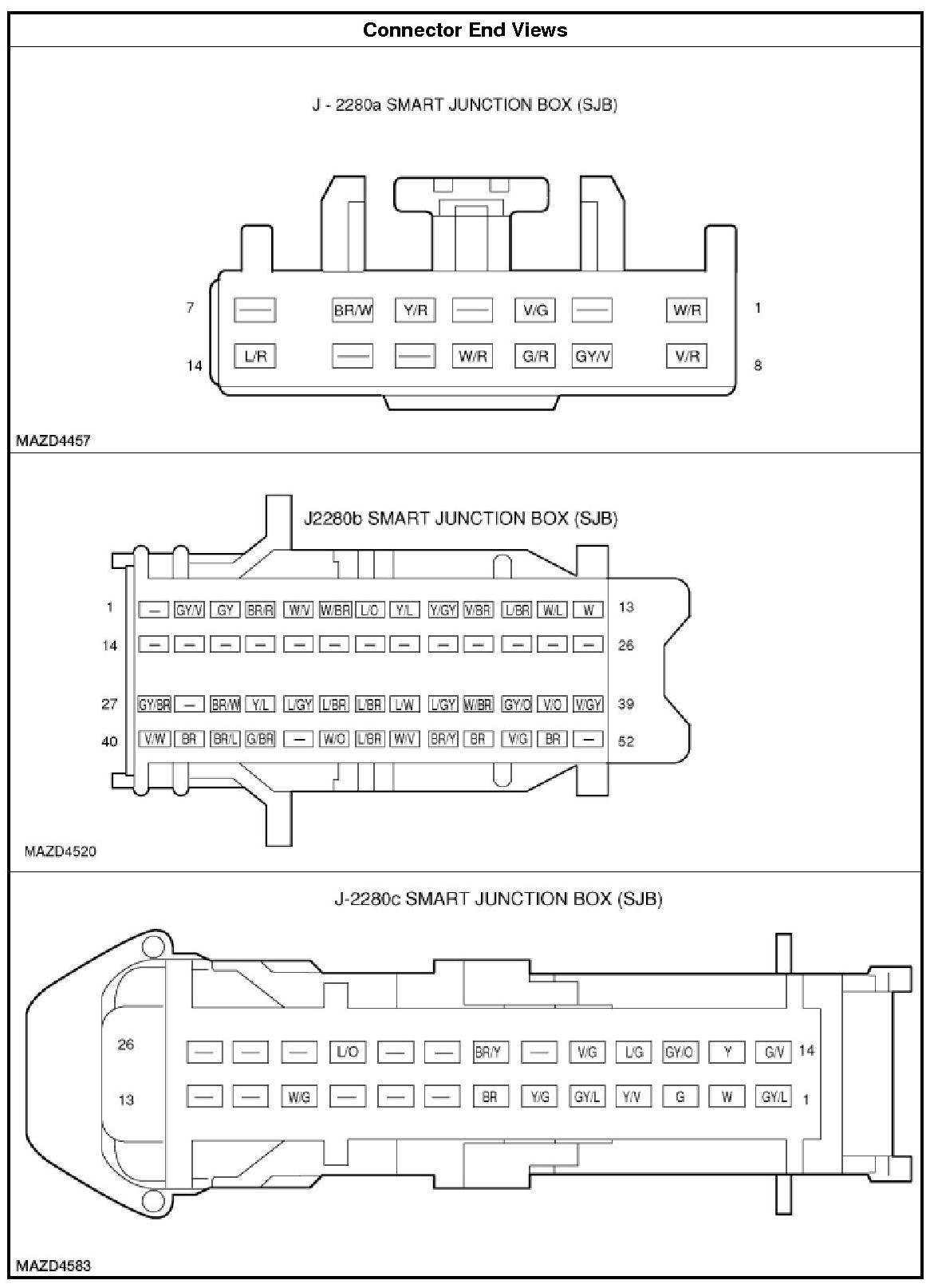

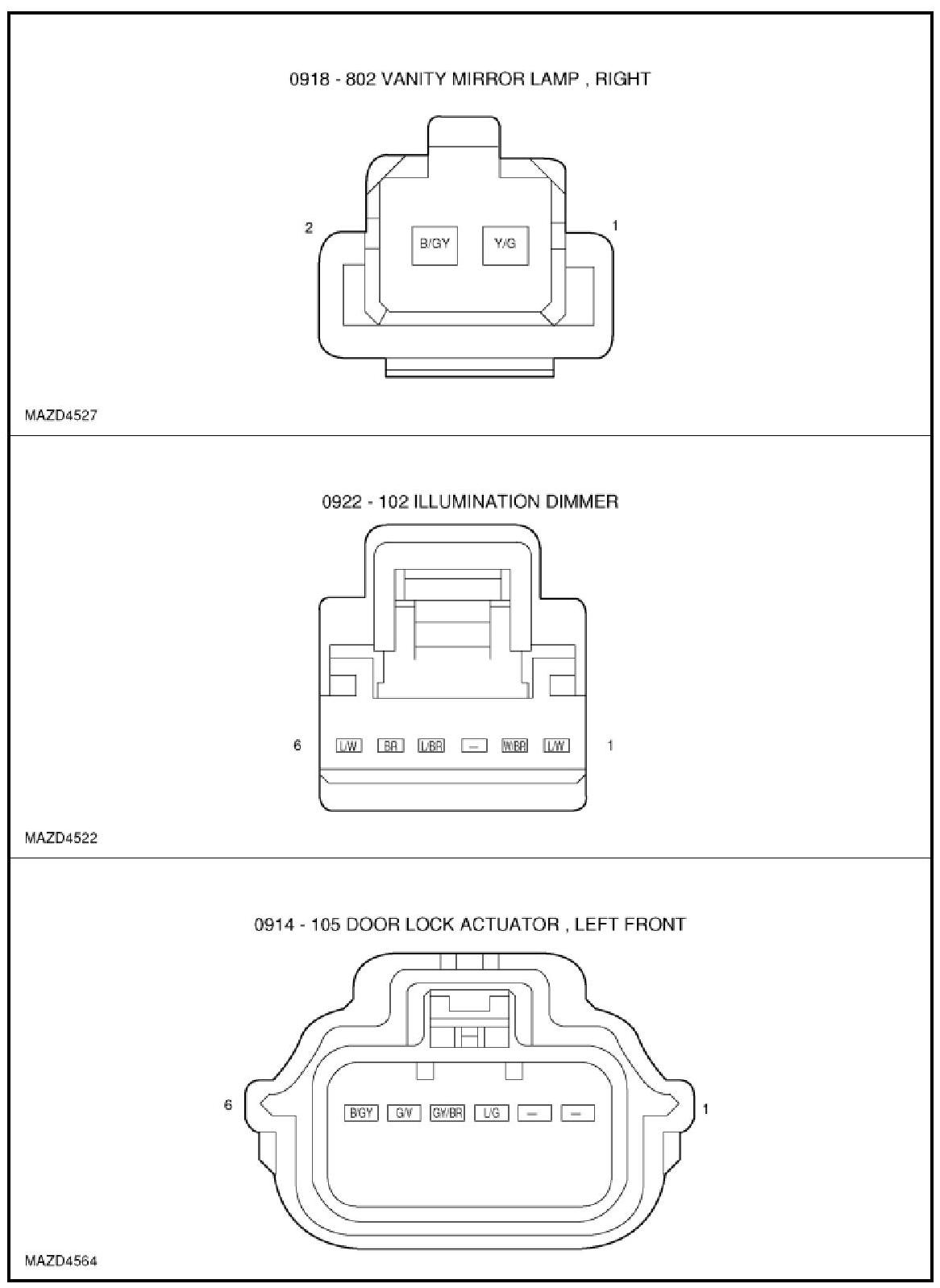

CONNECTOR END VIEWS - INTERIOR LIGHTING
