Interior Light/MAP Light (Without Roof Opening Panel)
Diagram 0918-8b:

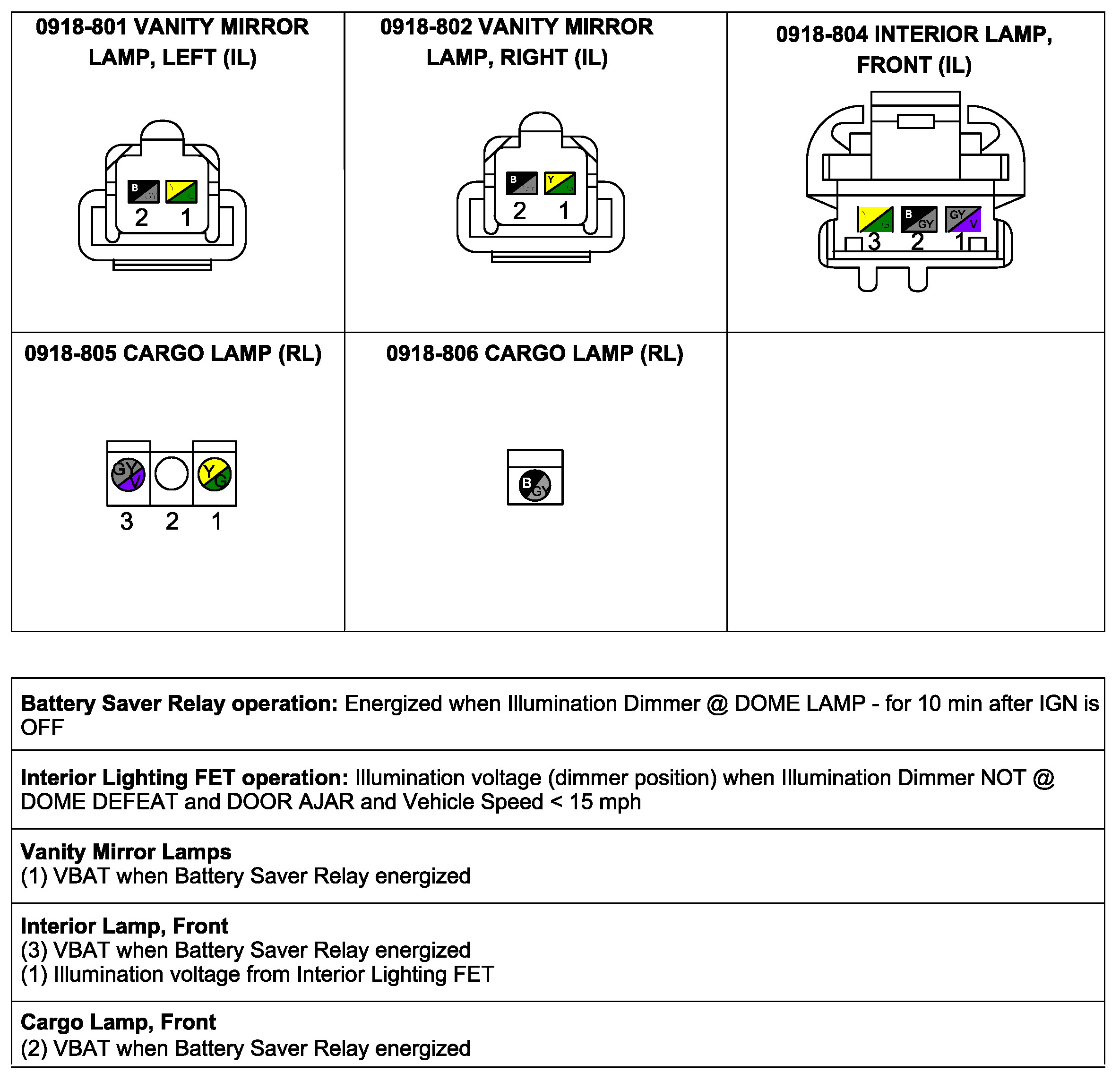

Connectors 0918-8b:
Routing View 0918-8b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
