Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH REMOVAL/INSTALLATION









1. Remove the instrument cluster finish panel. See Instrument Cluster Finish Panel Removal/Installation.

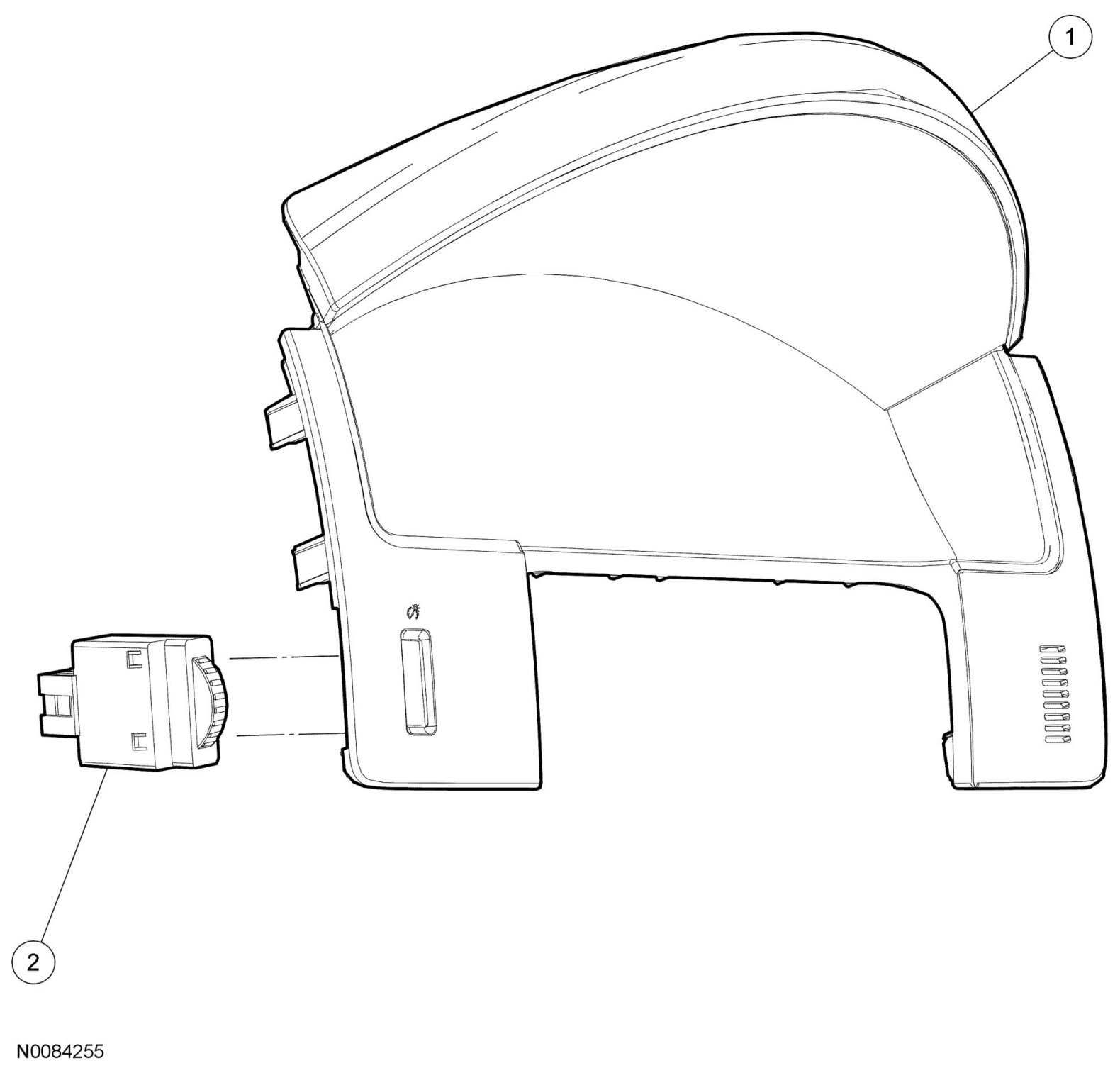

2. Release the tabs and remove the instrument panel dimmer switch.

NOTE:The instrument panel dimmer switch is removed by releasing the tabs and pulling from behind.
3. Pull the instrument cluster finish panel straight out to release the retainer clips and remove the finish panel.

- To install, reverse the removal procedure.
