Connector End Views - Instrument Cluster And Panel Illumination

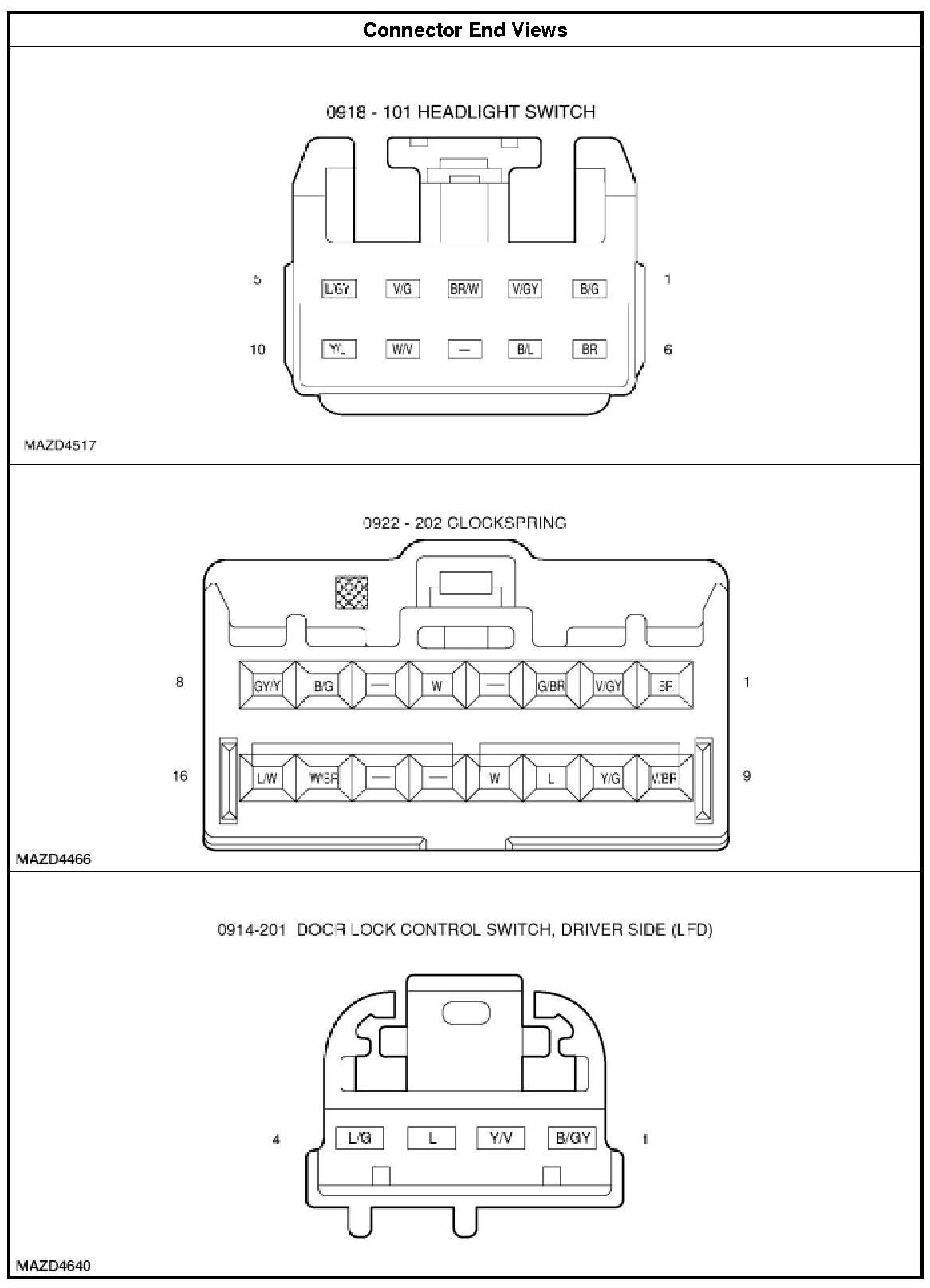

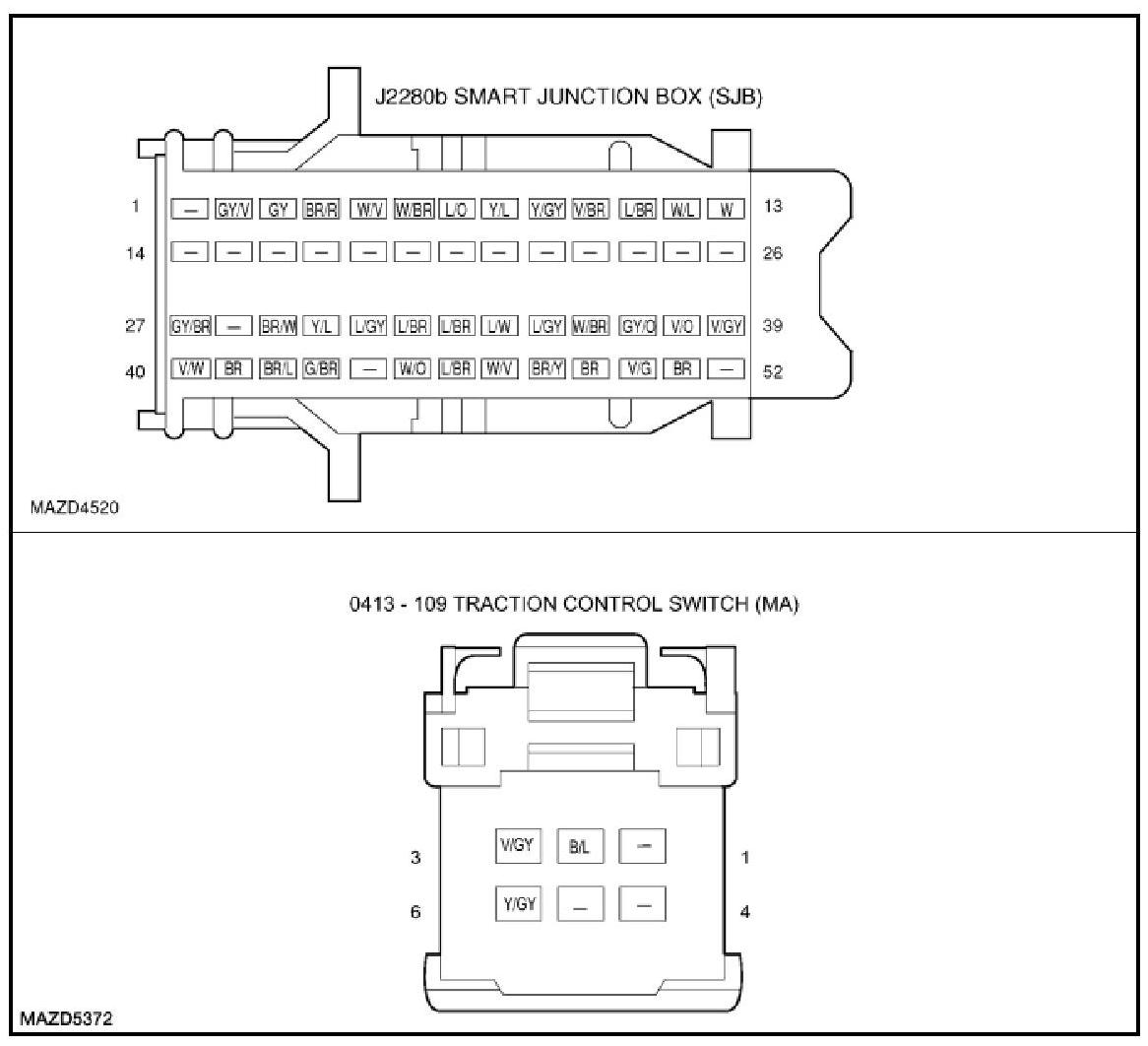

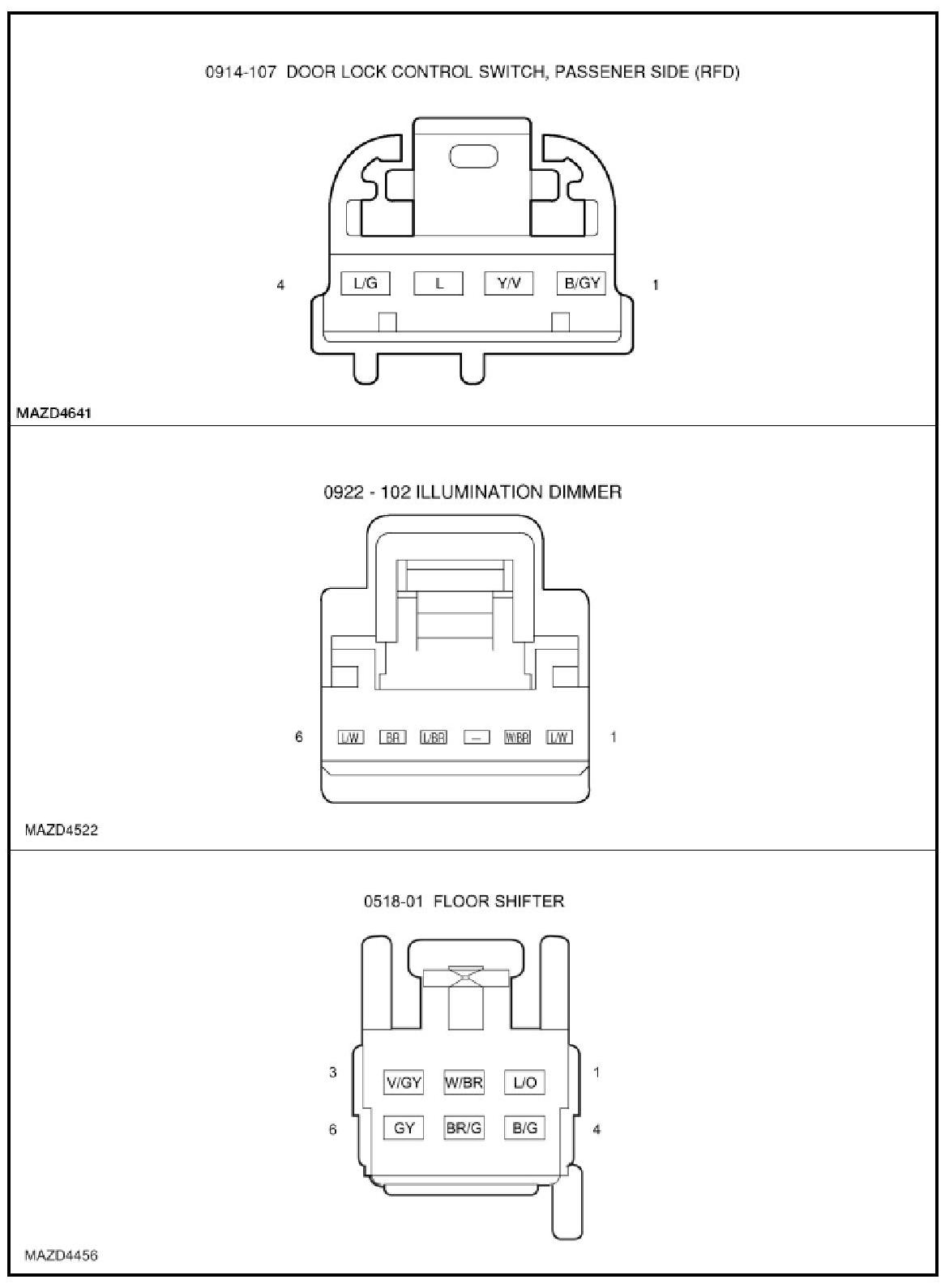

CONNECTOR END VIEWS - INSTRUMENT CLUSTER AND PANEL ILLUMINATION
