Piston Pin Diameter




PISTON PIN DIAMETER

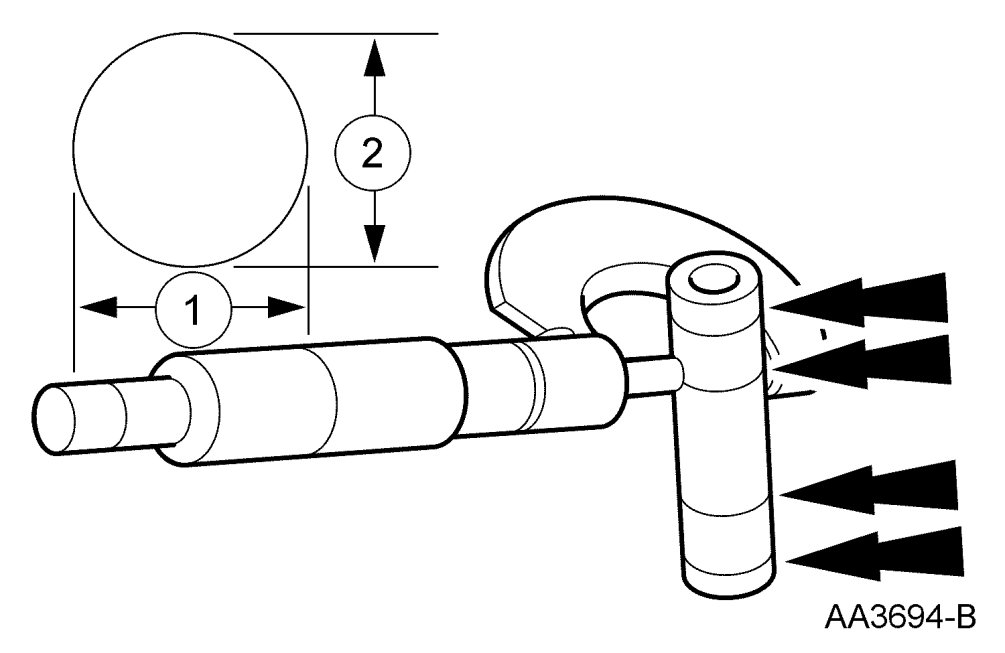

1. Measure the piston pin diameter in 2 directions at the points shown. Verify the diameter is within specification. See Engine Technical Data.
