Piston Pin Bore Diameter




PISTON PIN BORE DIAMETER

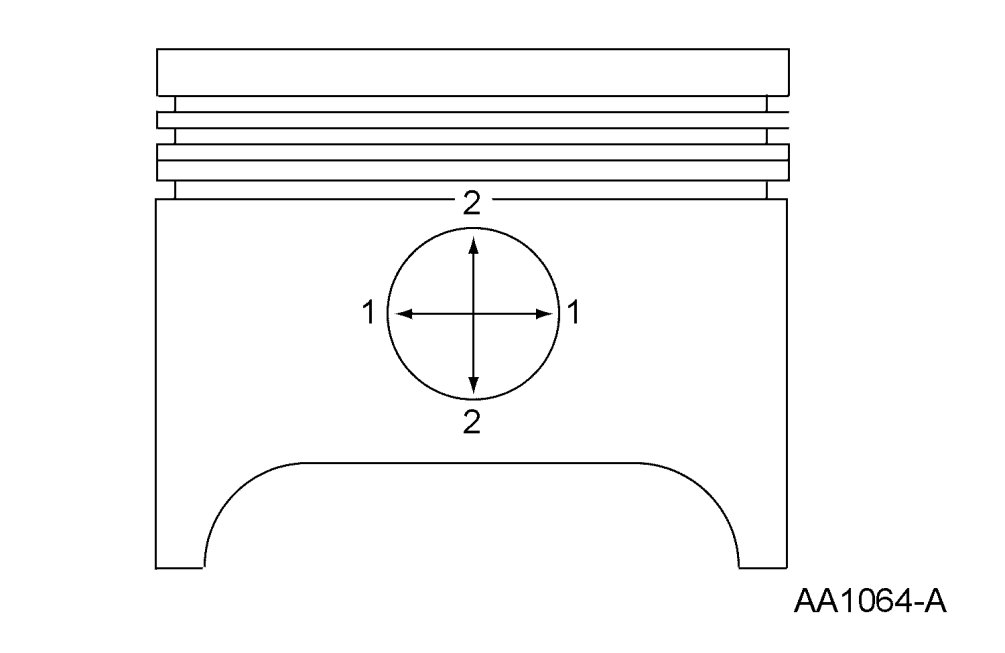

1. Measure the piston pin bore diameter in 2 directions on each side. Verify the diameter is within specifications. See Engine Technical Data.

NOTE:Piston and piston pins are a matched set and should not be interchanged.
