Piston Diameter

PISTON DIAMETER

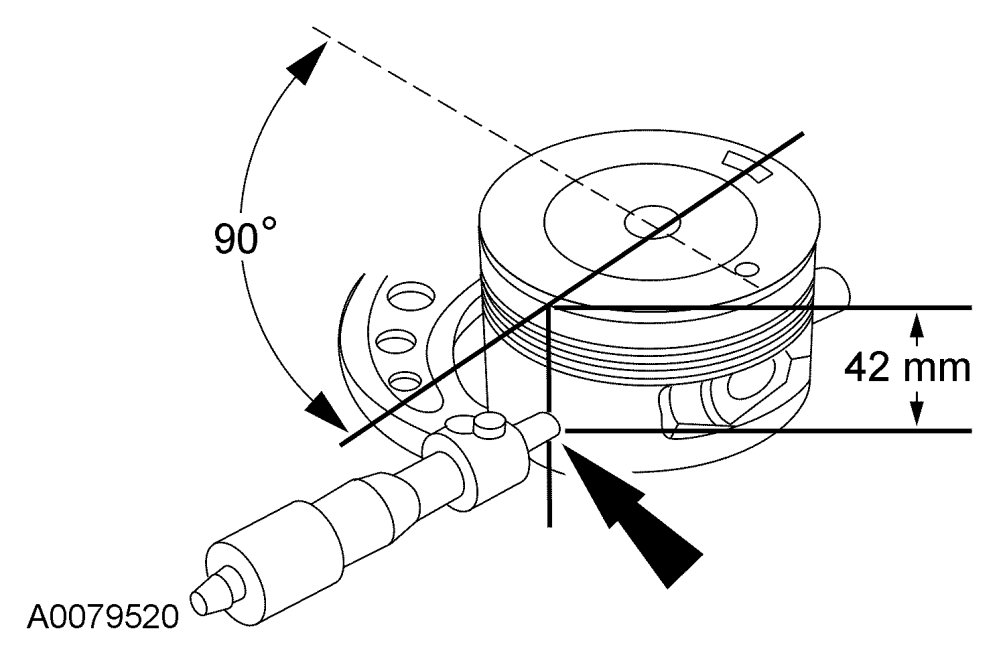

1. Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated. See Engine Technical Data.
