Valve Tappet Inspection




VALVE TAPPET INSPECTION - 2.5L

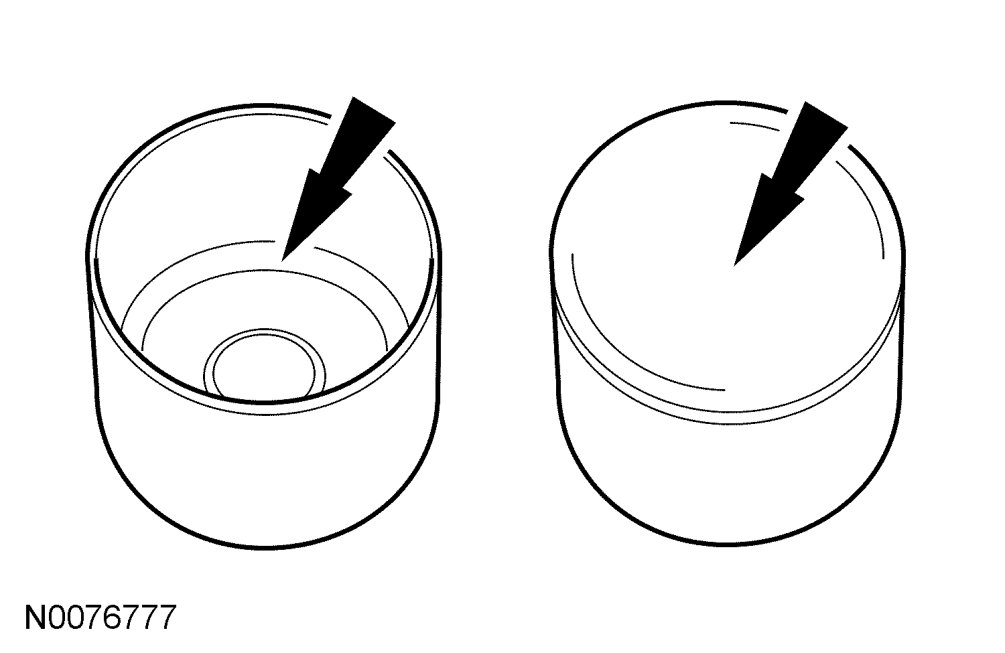

1. Inspect the valve tappet for damage, especially in the indicated areas. If any damage is evident, inspect the camshaft lobes and valves for damage. Install new components as necessary.
