Camshaft Runout

CAMSHAFT RUNOUT

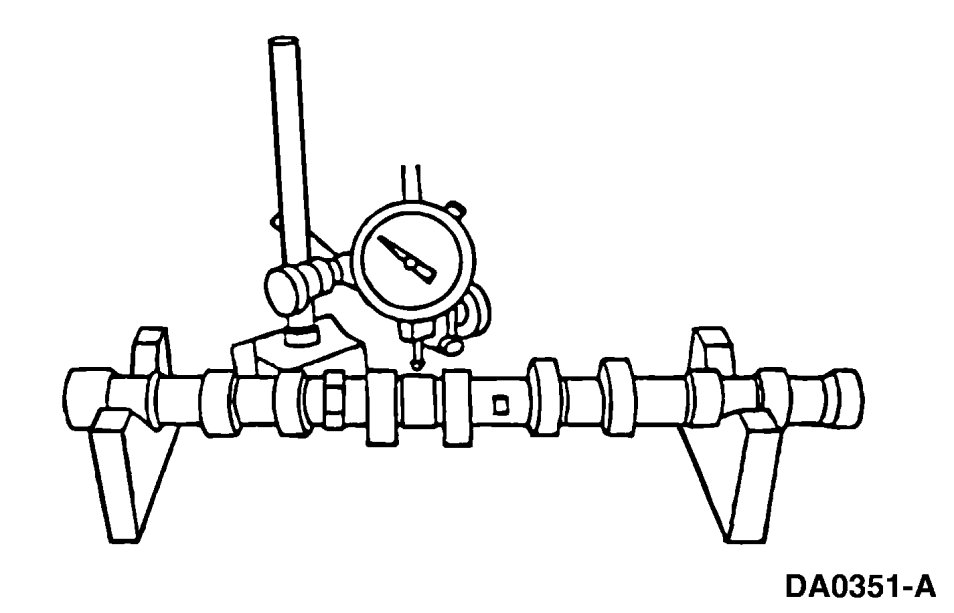

1. Using a special tool, measure the camshaft runout.

- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.

NOTE:Camshaft journals must be within specifications before checking runout.
