Camshaft Lobe Lift




CAMSHAFT LOBE LIFT

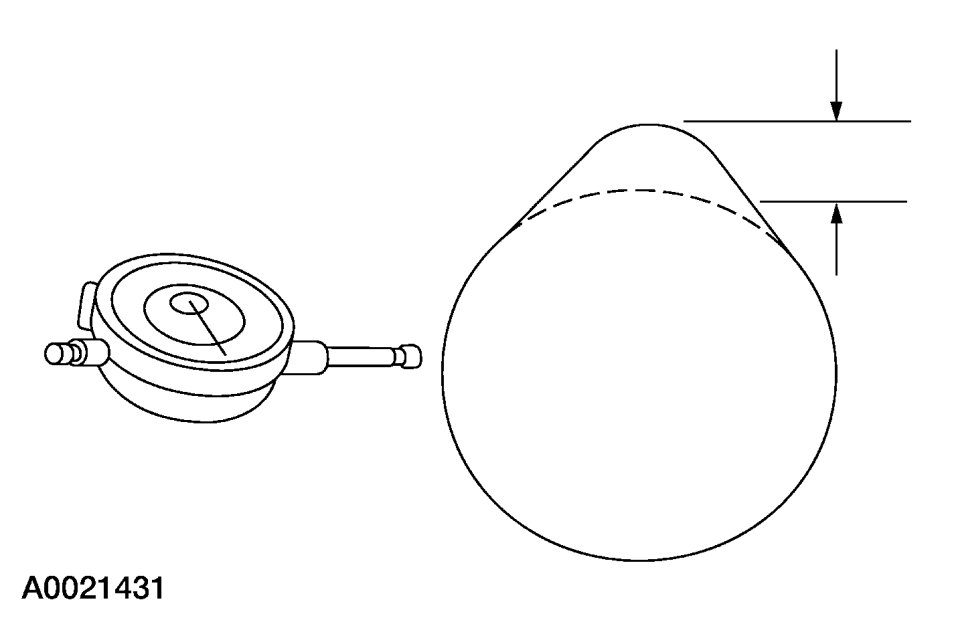

1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.

- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
