Instrument Cluster

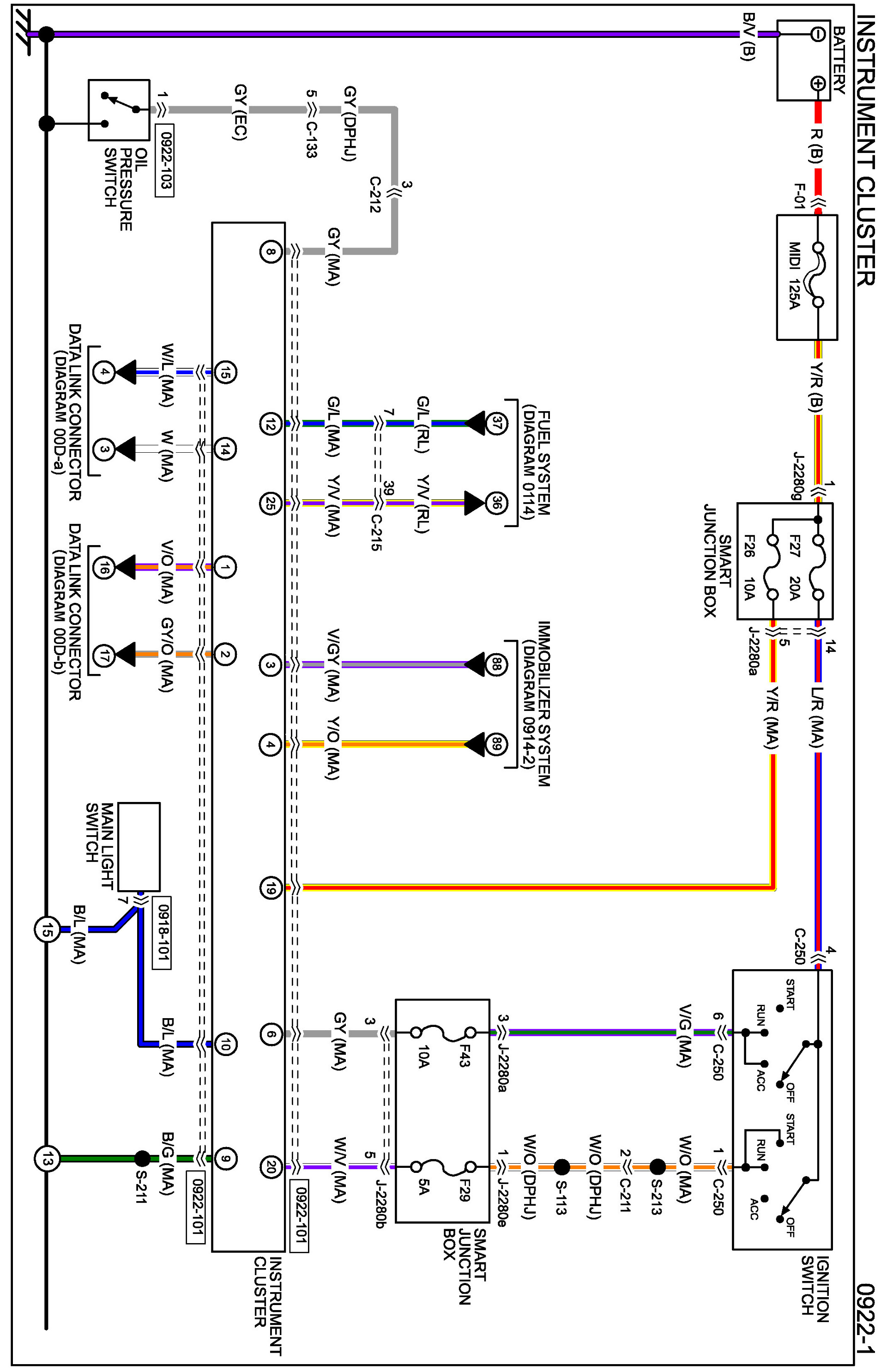

Diagram 0922-1:

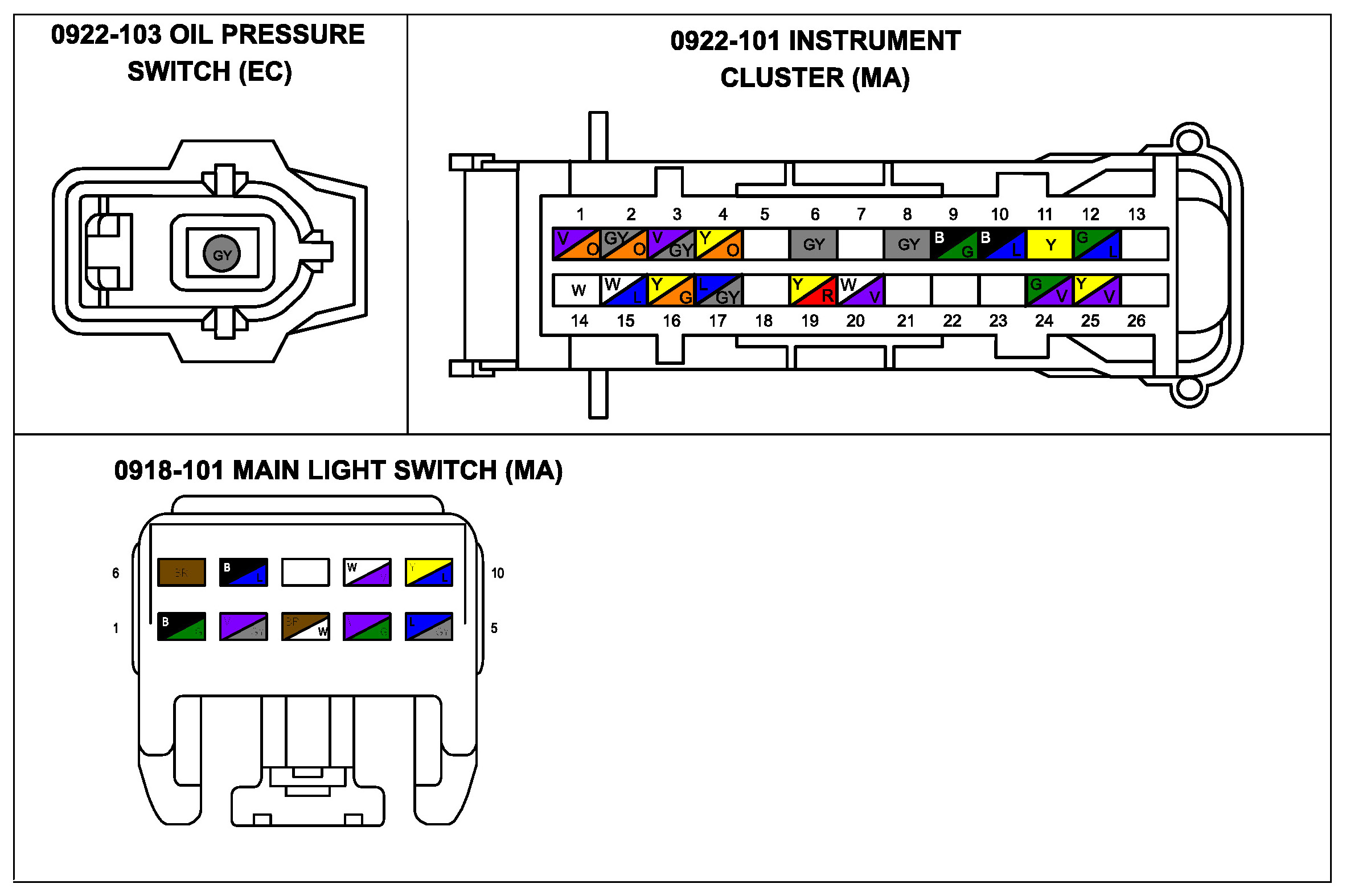

Connectors 0922-1:

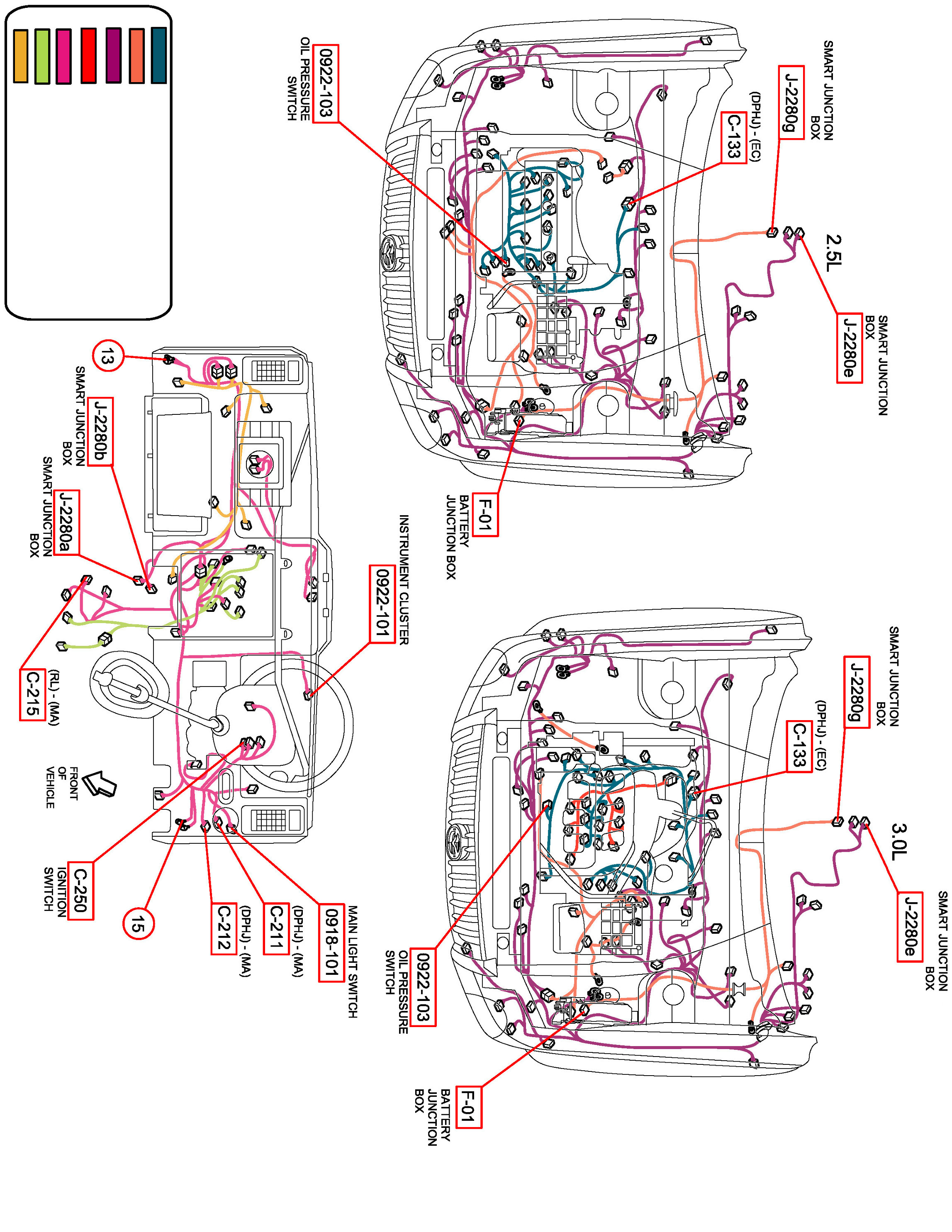

Routing View 0922-1:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
