Parking Brake Cable - Rear Removal/Installation

PARKING BRAKE CABLE - REAR REMOVAL/INSTALLATION

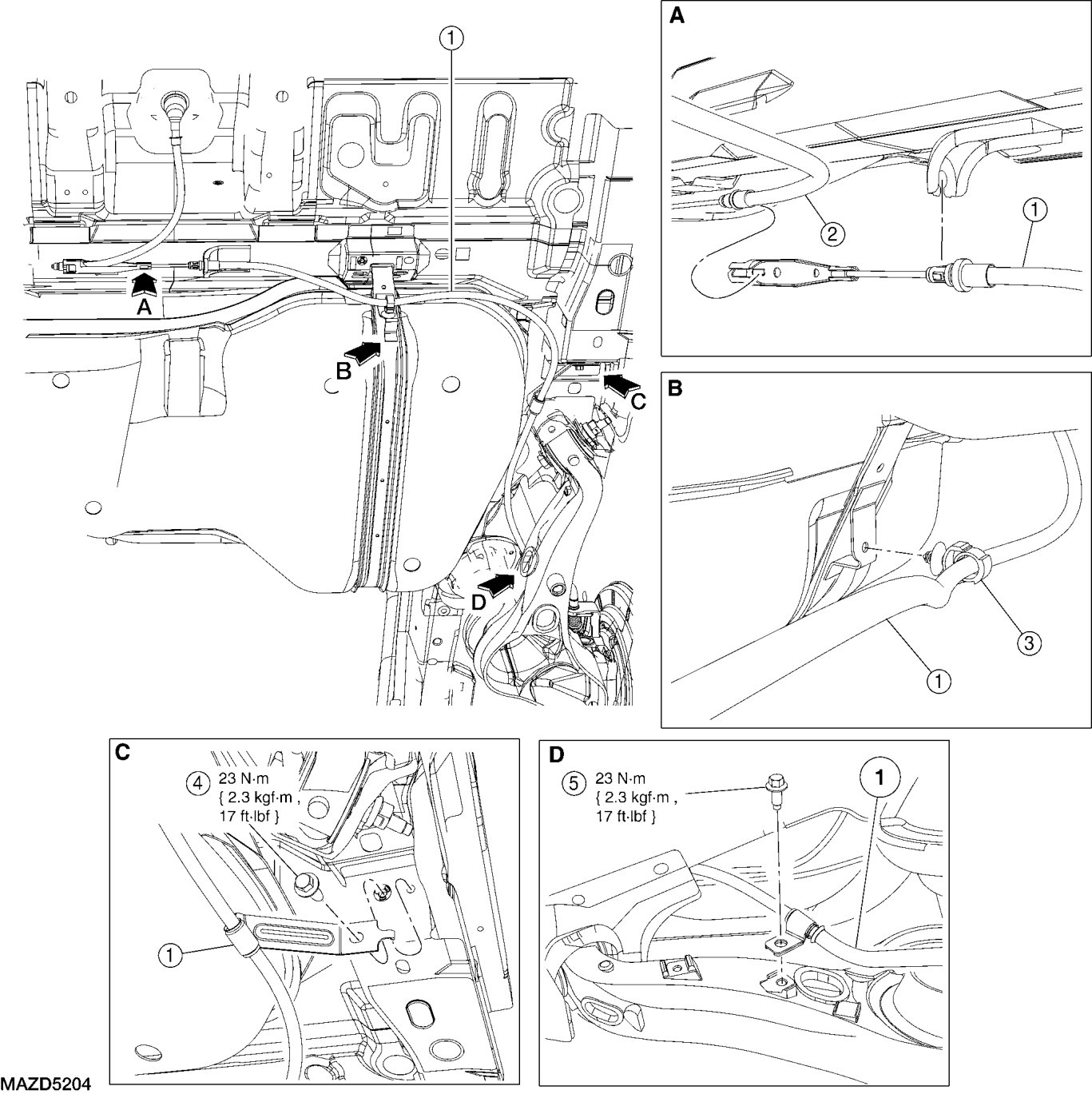

Parking Brake Cable - Rear, LH

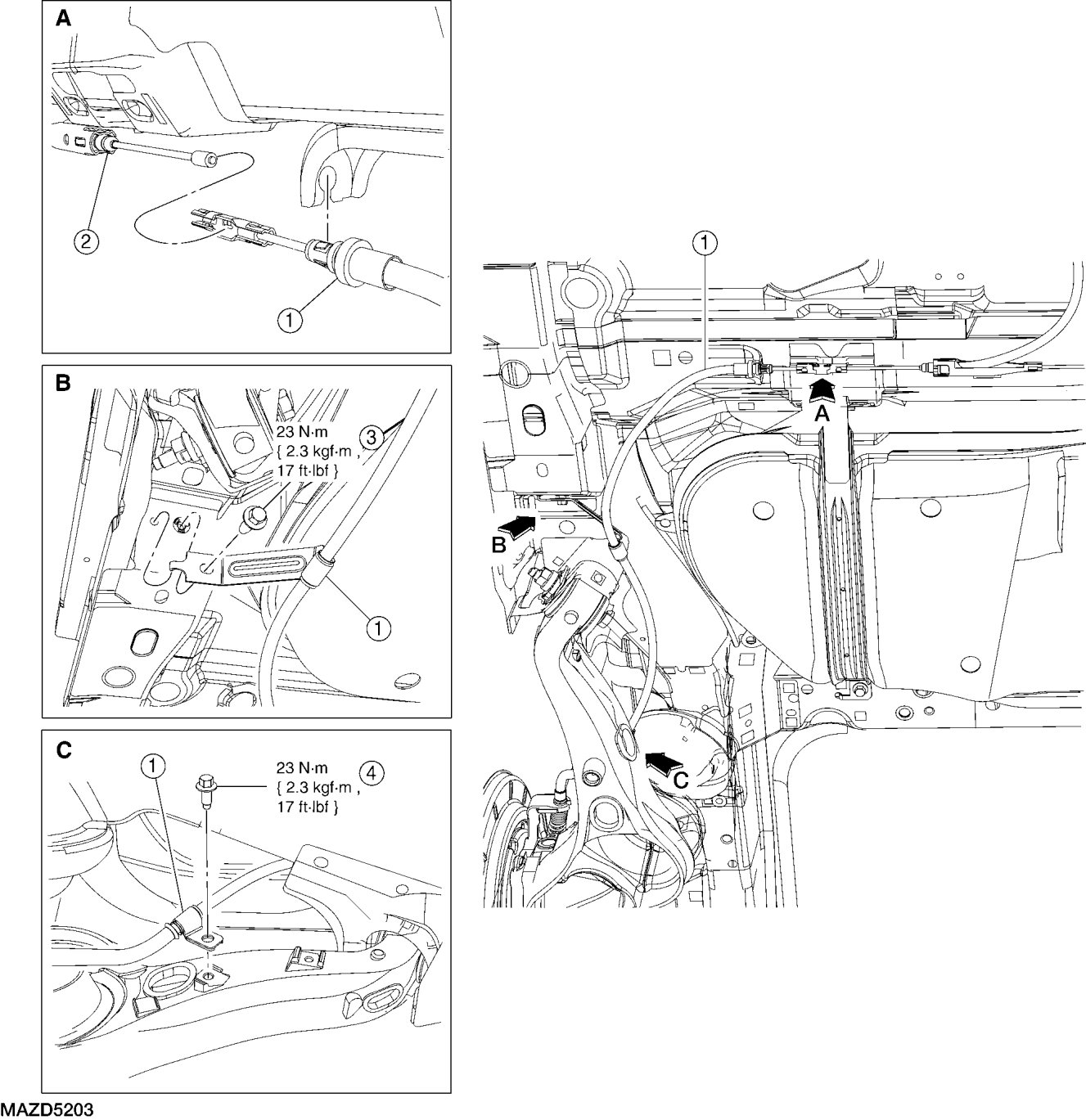

Parking Brake Cable - rear, RH










Removal/Installation

LH or RH parking brake cable

1. Release the parking brake cable tension. See Procedures.

1. Remove the rear drum brake shoes. See Service and Repair.

2. Disconnect the parking brake cable from the cable connector and the equalizer bracket by compressing the cable conduit locking tabs.

Parking brake cable - rear, LH

1. Detach the cable-to-fuel tank strap pin-type retainer.

LH or RH parking brake cable

1. Remove the 2 parking brake cable bracket bolts.

- To install, tighten to 23 Nm {2.3 kgf-m, 17 ft-lbf}.





2. Compress the rear parking brake cable conduit locking tabs and pull the cable assembly through the brake backing plate.

3. To install, reverse the removal procedure.
