Rear Door Hinge: Adjustments

HINGE ADJUSTMENT - REAR DOOR

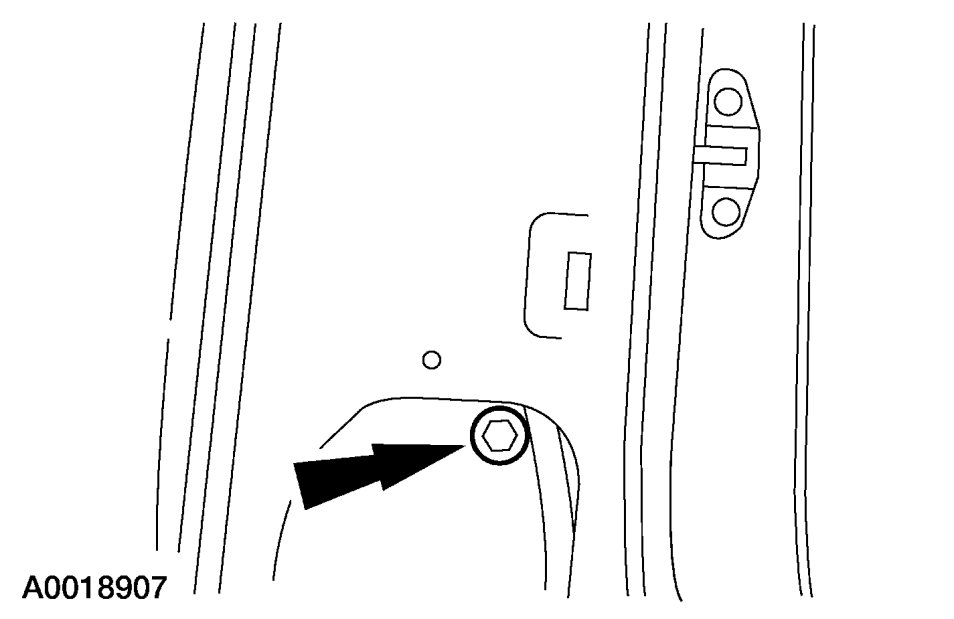

1. Remove the front seat safety belt retractor. See Front Safety Belt Retractor Removal/Installation.

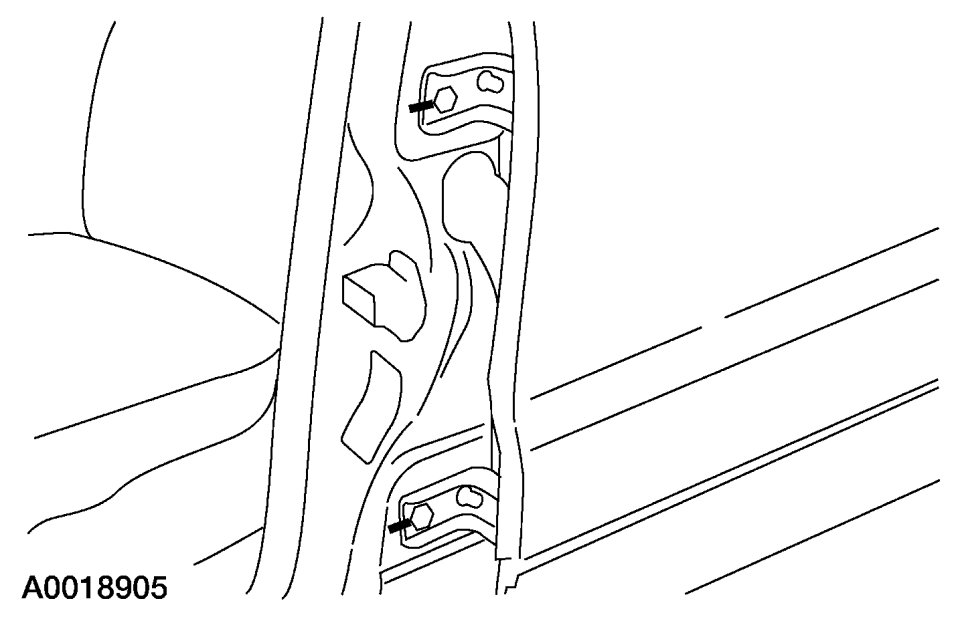

2. Mark the positions of the rear door hinges to use as reference points.

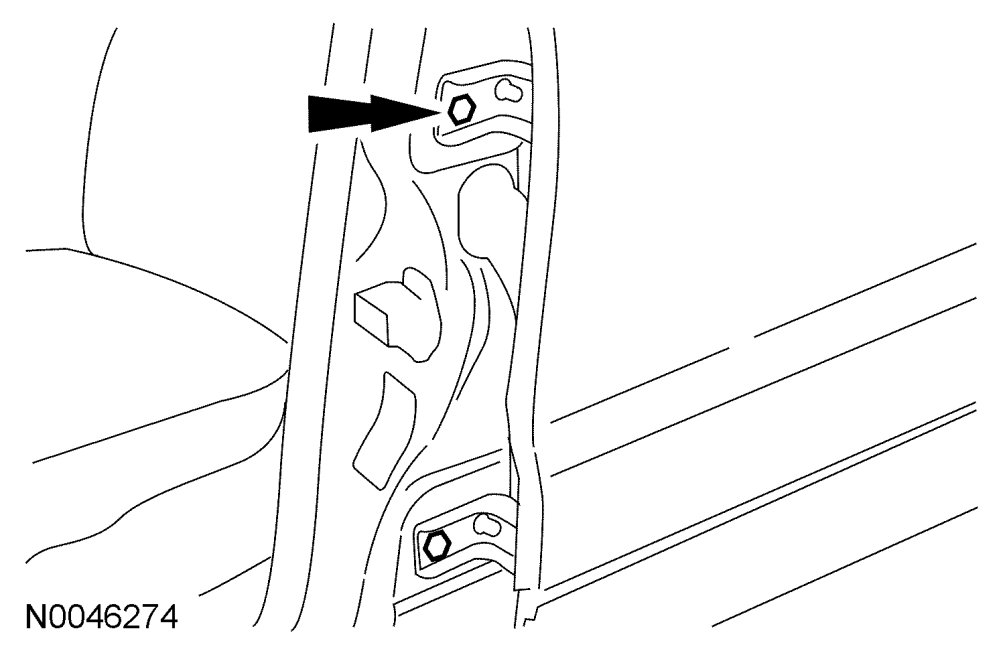

3. Loosen the rear door hinge-to-body bolts just enough to permit movement.





4. Loosen the two rear door hinge-to-body bolts just enough to permit movement.

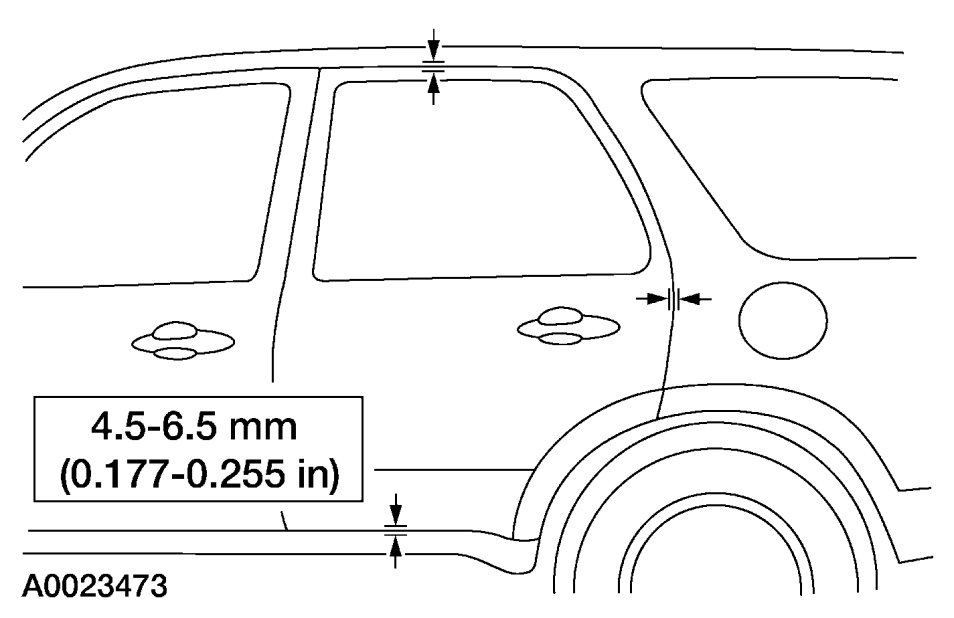

5. Adjust the rear door to specification.

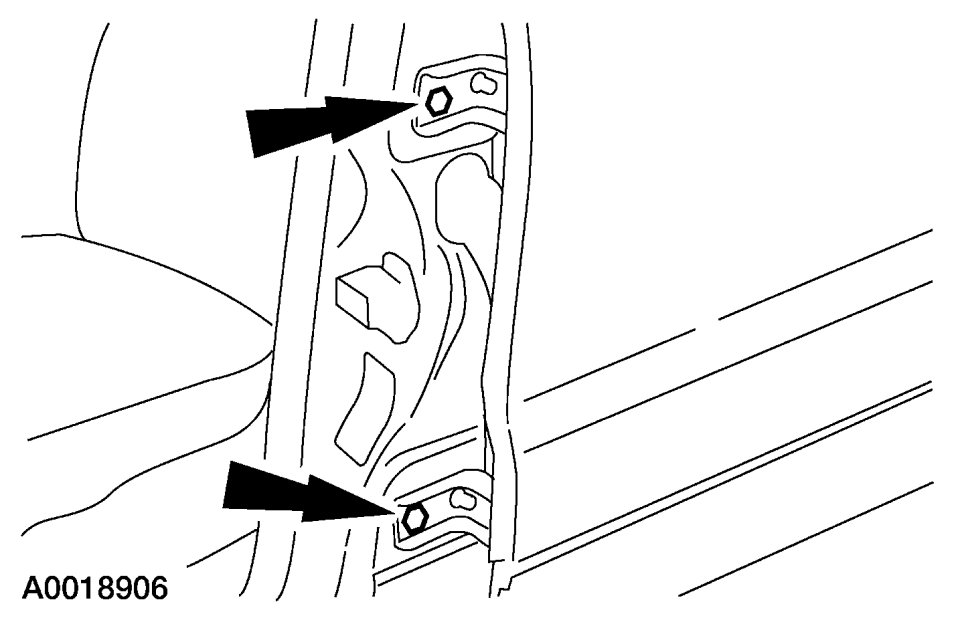

6. Install the 2 bolts and tighten to 24 Nm {2.4 kgf-m, 18 ft-lbf}.

7. Check the front door adjustments. See - Adjustments.

8. Install the front seat safety belt retractor. See Front Safety Belt Retractor Removal/Installation.
