Remote Switch: Service and Repair

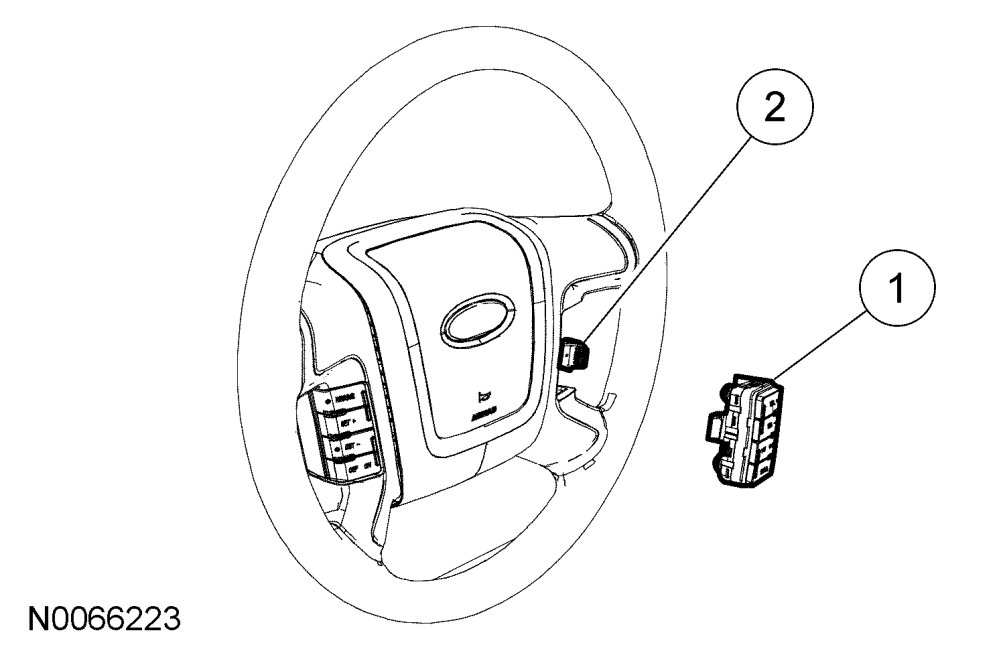

STEERING WHEEL CONTROLS REMOVAL/INSTALLATION









1. Using a suitable tool, pry the steering wheel controls out of the steering wheel.

NOTE:It is not necessary to remove the driver air bag module during this procedure.
2. Remove the steering wheel controls.

NOTE:Do not allow the electrical connector to fall back into the steering wheel.
3. To install, reverse the removal procedure.
