Antenna - Satellite Radio Removal/Installation

ANTENNA - SATELLITE RADIO REMOVAL/INSTALLATION









1. Remove the RH A-pillar trim panel. See - Locations.

2. Remove the RH sun visor.

3. Lower the front of the headliner enough to gain access to the satellite radio antenna electrical connector.

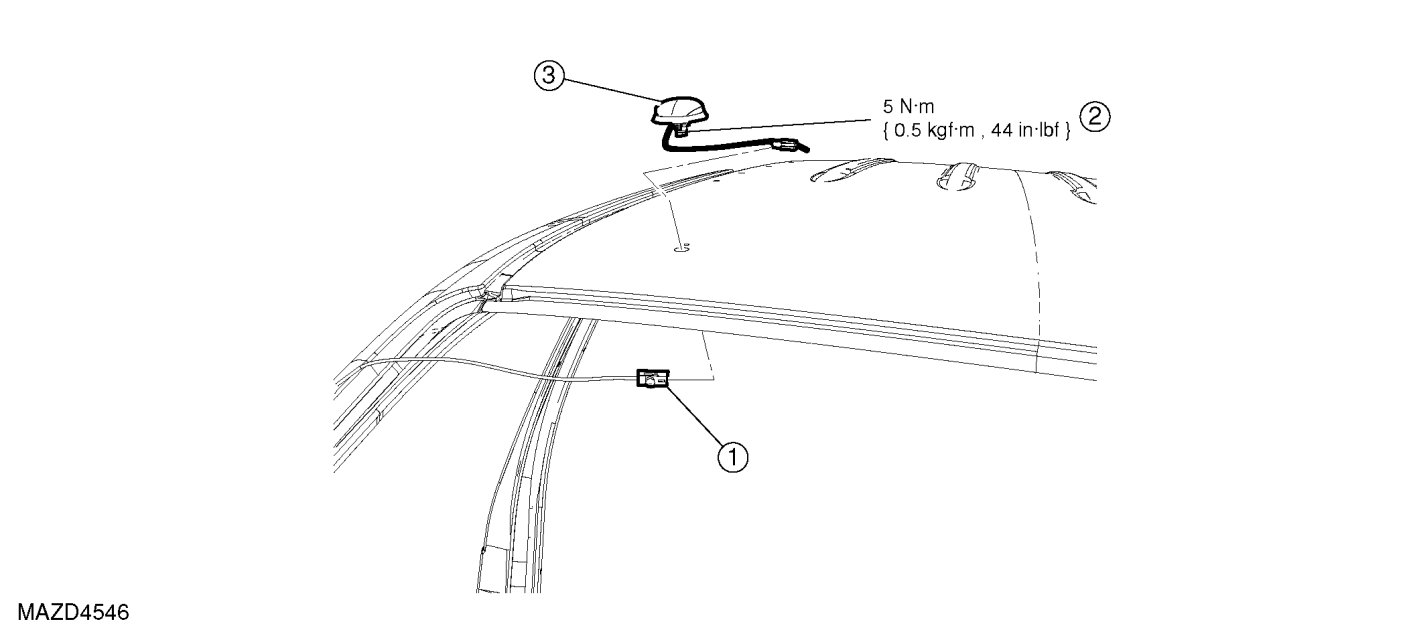

4. Remove the satellite radio antenna.

- Disconnect the electrical connector.
- Loosen the antenna bolt.

- To install, tighten to 5 Nm {0.5 kgf-m, 44 in-lbf}.

- Compress the tabs and release the satellite radio antenna from the roof panel.

5. To install, reverse the removal procedure.
