Antenna - AM/FM Removal/Installation

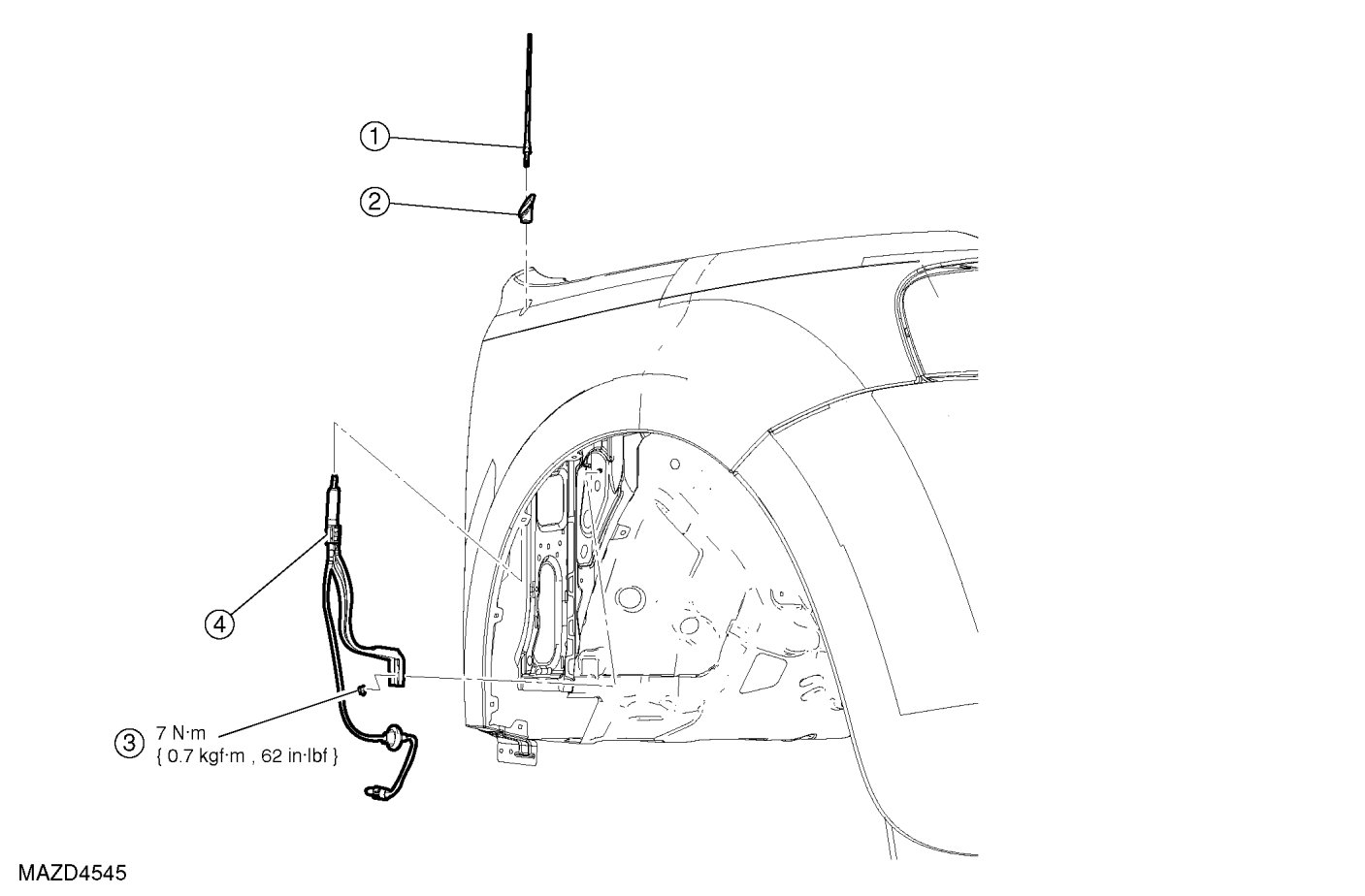

ANTENNA - AM/FM REMOVAL/INSTALLATION









1. Remove the antenna mast.

2. Using a suitable tool, remove the stanchion.

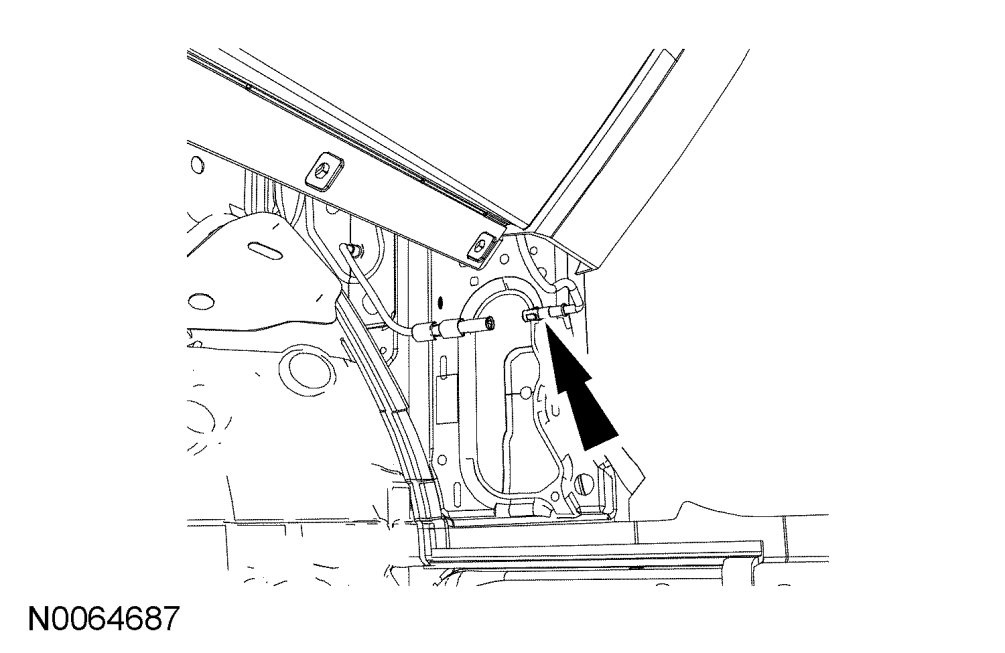

3. Disconnect the antenna cable from the antenna lead-in cable.

NOTE:Access the antenna cable connection behind the RH cowl side trim panel.
4. Release the antenna cable grommet from the vehicle body.

5. Remove the RH fender splash shield. See Fender Splash Shield Removal/Installation.

6. Remove the nut and the AM/FM antenna.

- To install, tighten to 7 Nm {0.7 kgf-m, 62 in-lbf}.

7. To install, reverse the removal procedure.
