Antenna Cable - Satellite Radio Removal/Installation

ANTENNA CABLE - SATELLITE RADIO REMOVAL/INSTALLATION

















1. Remove the RH A-pillar trim panel. See - Locations.

2. Remove the sun visor.

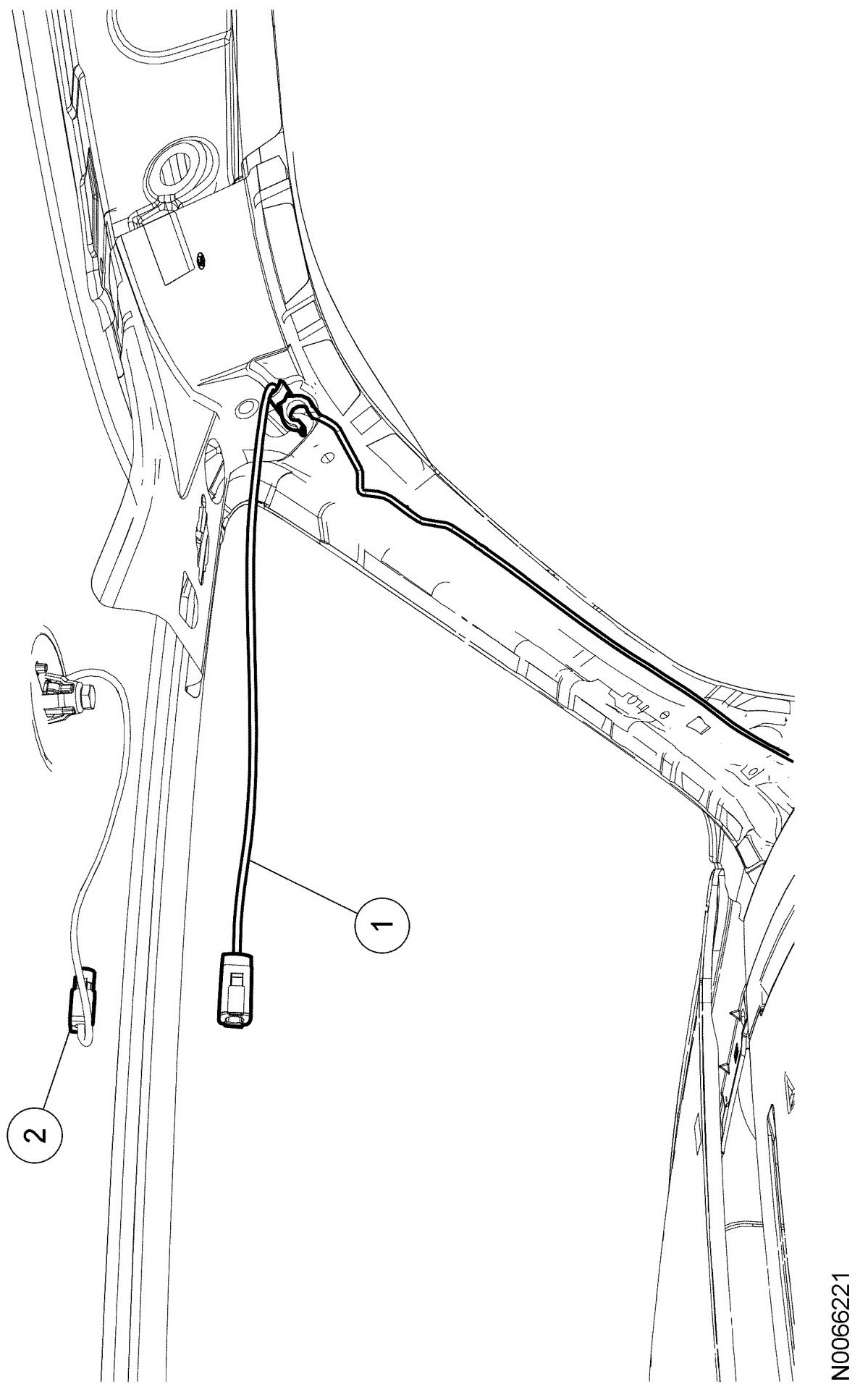

3. Lower the front of the headliner enough to gain access to the satellite radio antenna electrical connector.

4. Disconnect the satellite radio antenna electrical connector.

5. Remove the satellite radio antenna.

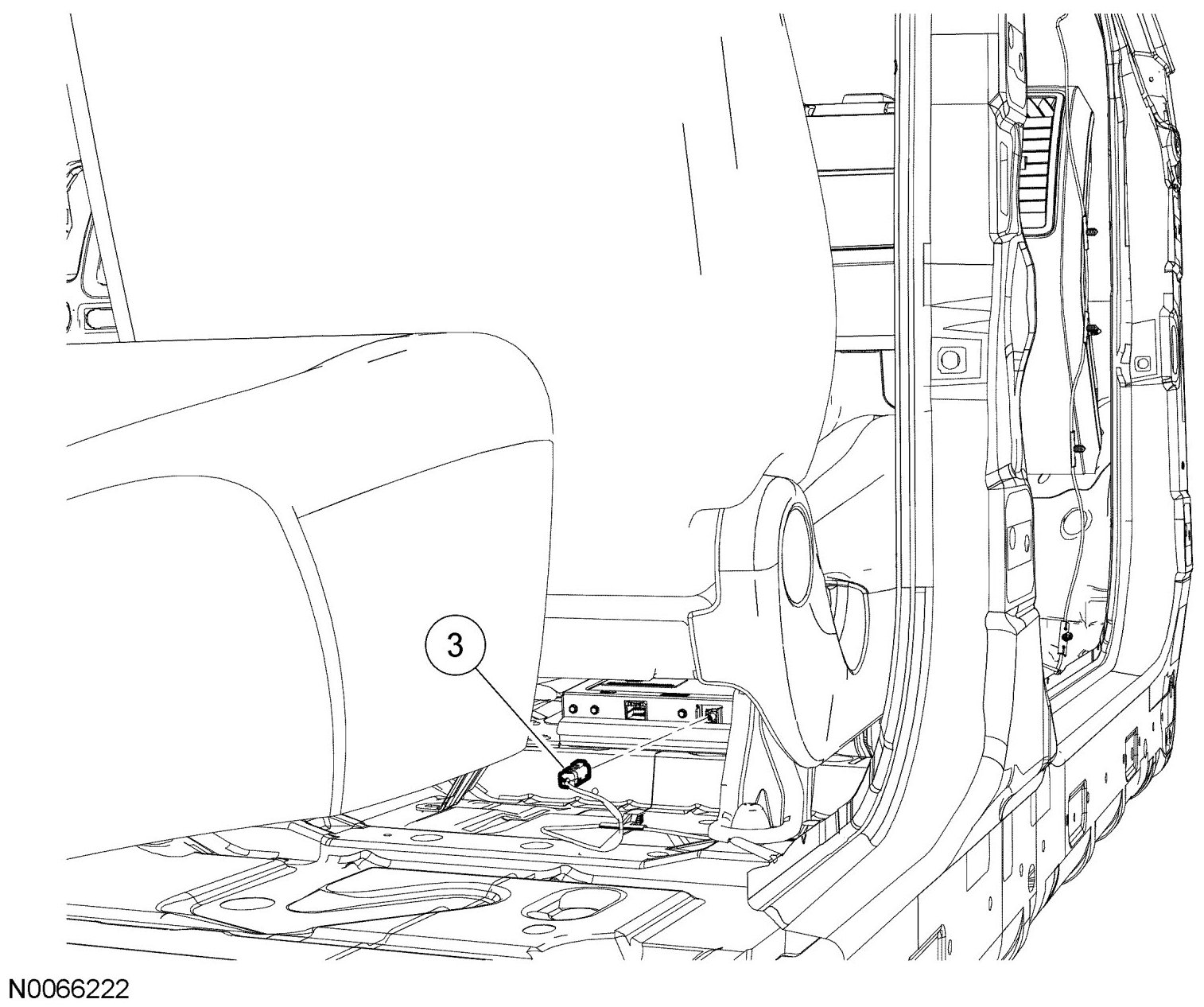

- Disconnect the satellite radio antenna cable-to-satellite digital audio receiver system (SDARS) module electrical connector.

6. To install, reverse the removal procedure.
