Antenna Cable - AM/FM Removal/Installation

ANTENNA CABLE - AM/FM REMOVAL/INSTALLATION

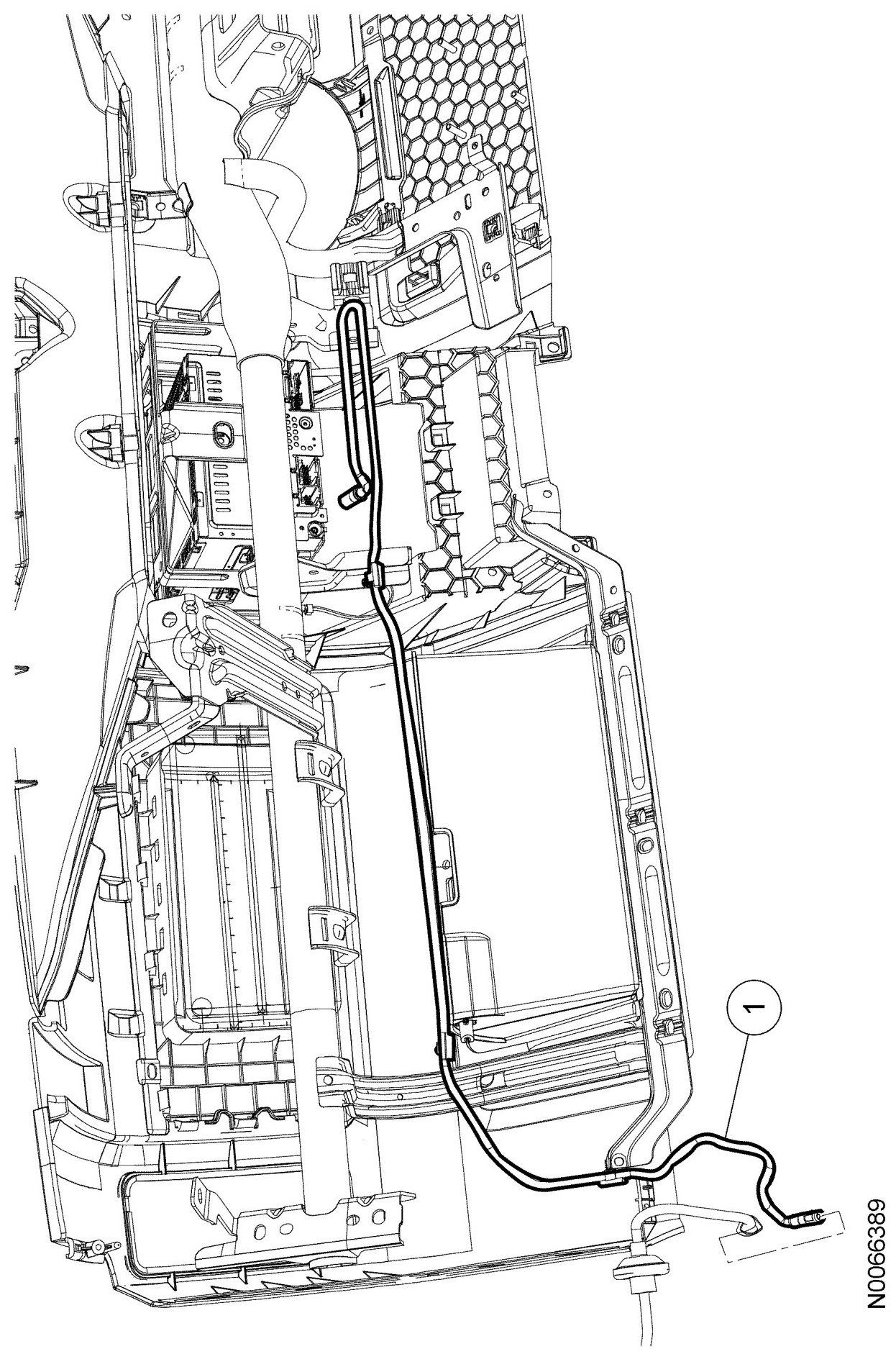

NOTE:View shown from behind instrument panel for clarity.










1. Remove the audio control module (ACM).

2. Disconnect the AM/FM antenna cable from the AM/FM antenna.

3. Release the AM/FM antenna cable pin-type retainers.

NOTE:Lower the glove compartment completely to access the pin-type retainers.
4. Remove the AM/FM antenna cable.

5. To install, reverse the removal procedure.
