Pilot Bearing: Testing and Inspection

PILOT BEARING INSPECTION

NOTE:
- Inspect the pilot bearing when it is installed to the eccentric shaft.

1. Remove the clutch unit so that the pilot bearing can be inspected. Removal and Replacement

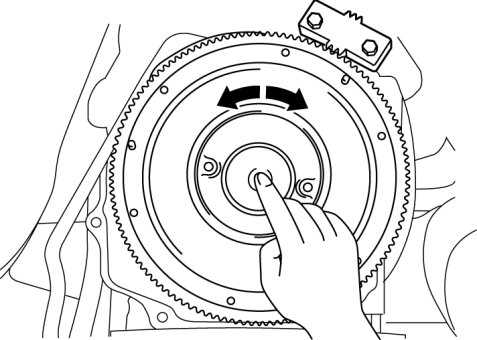

2. Inspect the pilot bearing for damage, wear, and proper rotation.






- If there is any malfunction, replace the pilot bearing.
