Steering Angle Sensor: Testing and Inspection

TORQUE SENSOR INSPECTION

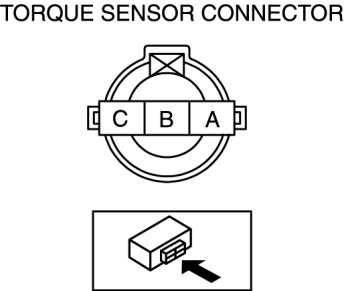

1. Measure the resistance between torque sensor connector terminals A and B, and B and C.






- If there is any malfunction, replace the steering gear and linkage.

Standard
- A-B: 12-15 ohms
- B-C: 12-15 ohms
