Key Reminder Switch: Service and Repair

KEY REMINDER SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND START SYSTEM]

1. Disconnect the negative battery cable.

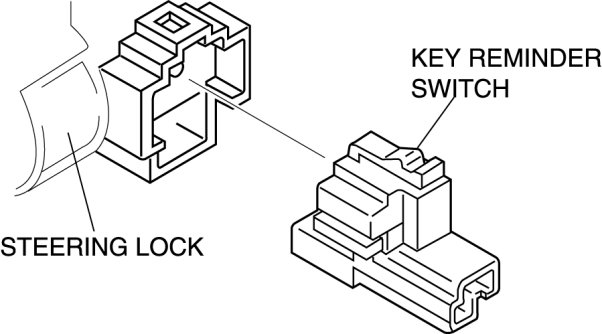

2. Remove the column cover. Service and Repair

3. Disconnect the key reminder switch connector.

4. Remove the key reminder switch.






5. Install in the reverse order of removal.
