Lateral Accelerometer: Service and Repair

COMBINED SENSOR REMOVAL/INSTALLATION

CAUTION:
- The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

1. Remove the rear console. Removal and Replacement

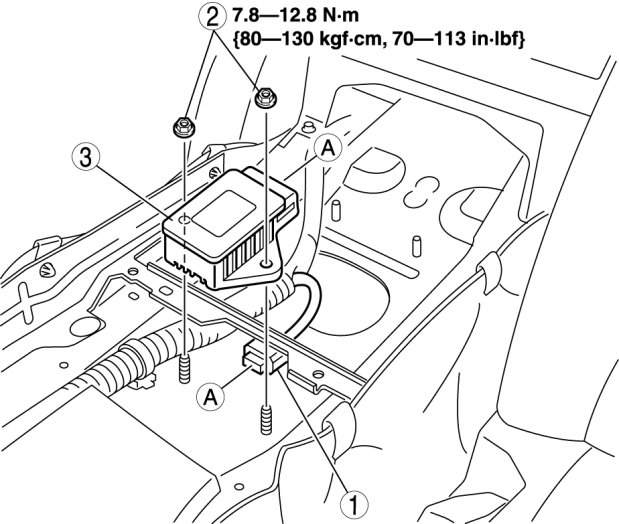

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

4. After installation, perform the combined sensor initialization procedure. Programming and Relearning
