Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the shift lever knob (MT). Transmission Removal/Installation

3. Remove the rear console. Removal and Replacement

4. Remove the upper panel. Removal and Replacement

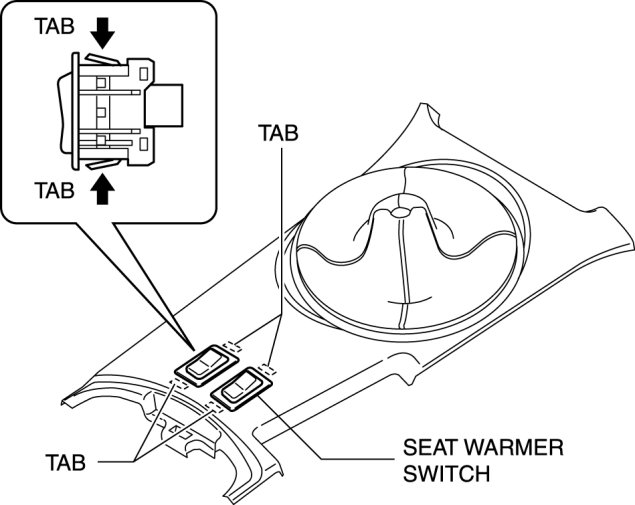

5. Squeeze the tabs of seat warmer switch and pull it outward to remove it.






6. Remove the seat warmer switch.

7. Install in the reverse order of removal.
