No. 3 Passenger Air Bag Deactivation (PAD) Indicator Light Illuminates Incorrectly

NO.3 PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR LIGHT ILLUMINATES INCORRECTLY

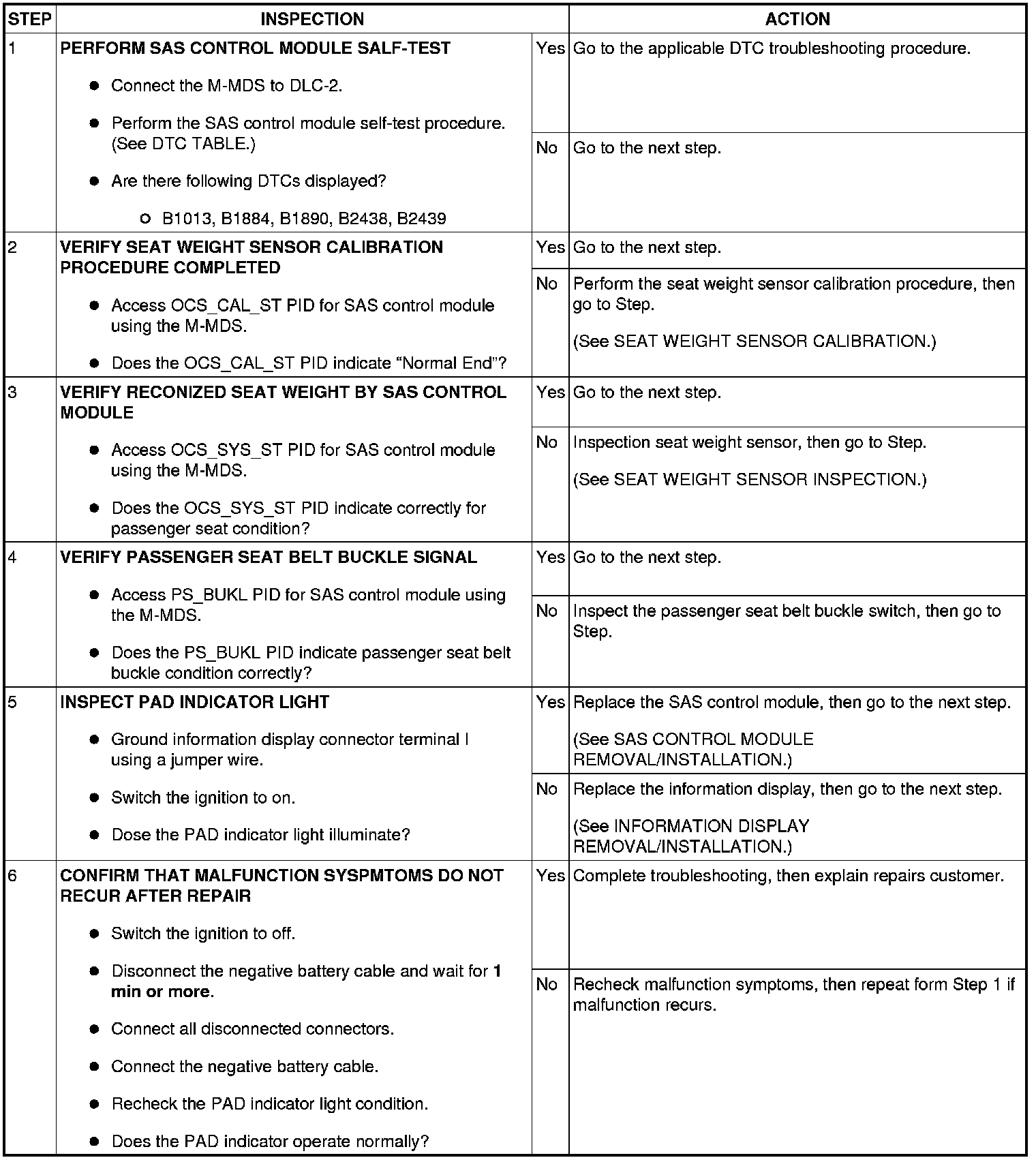

Diagnostic Procedure
