Backup Lamp Switch: Testing and Inspection

BACK-UP LIGHT SWITCH INSPECTION

1. Disconnect the back-up light switch connector.

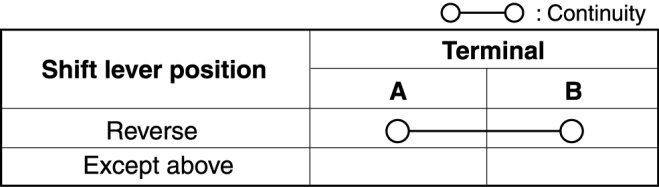

2. Verify that the continuity between the back-up light switch terminals is as indicated in the table.






- If not as indicated in the table, replace the back-up light switch.
