Instrument Panel Illumination

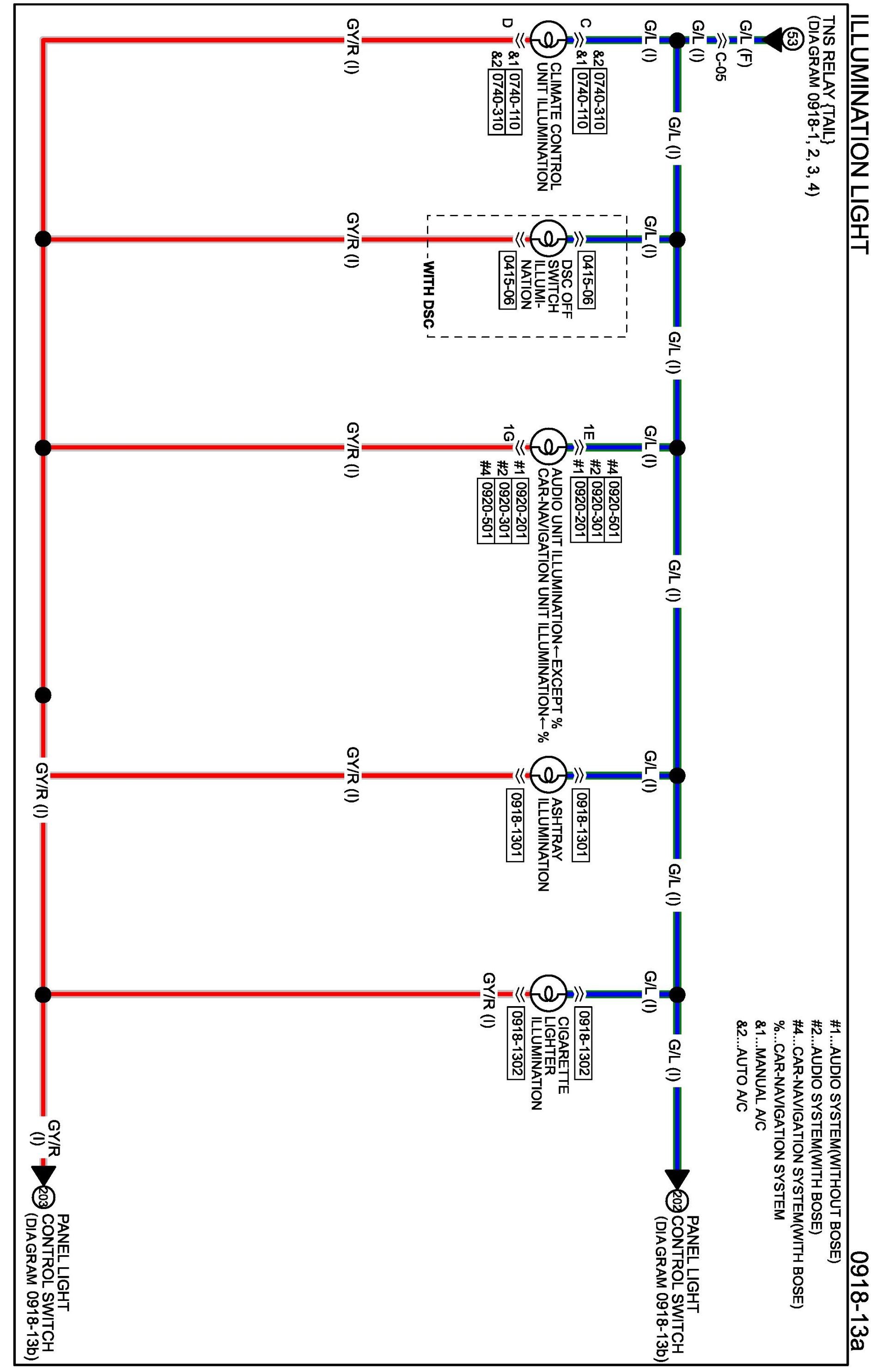

Diagram 0918-13a:

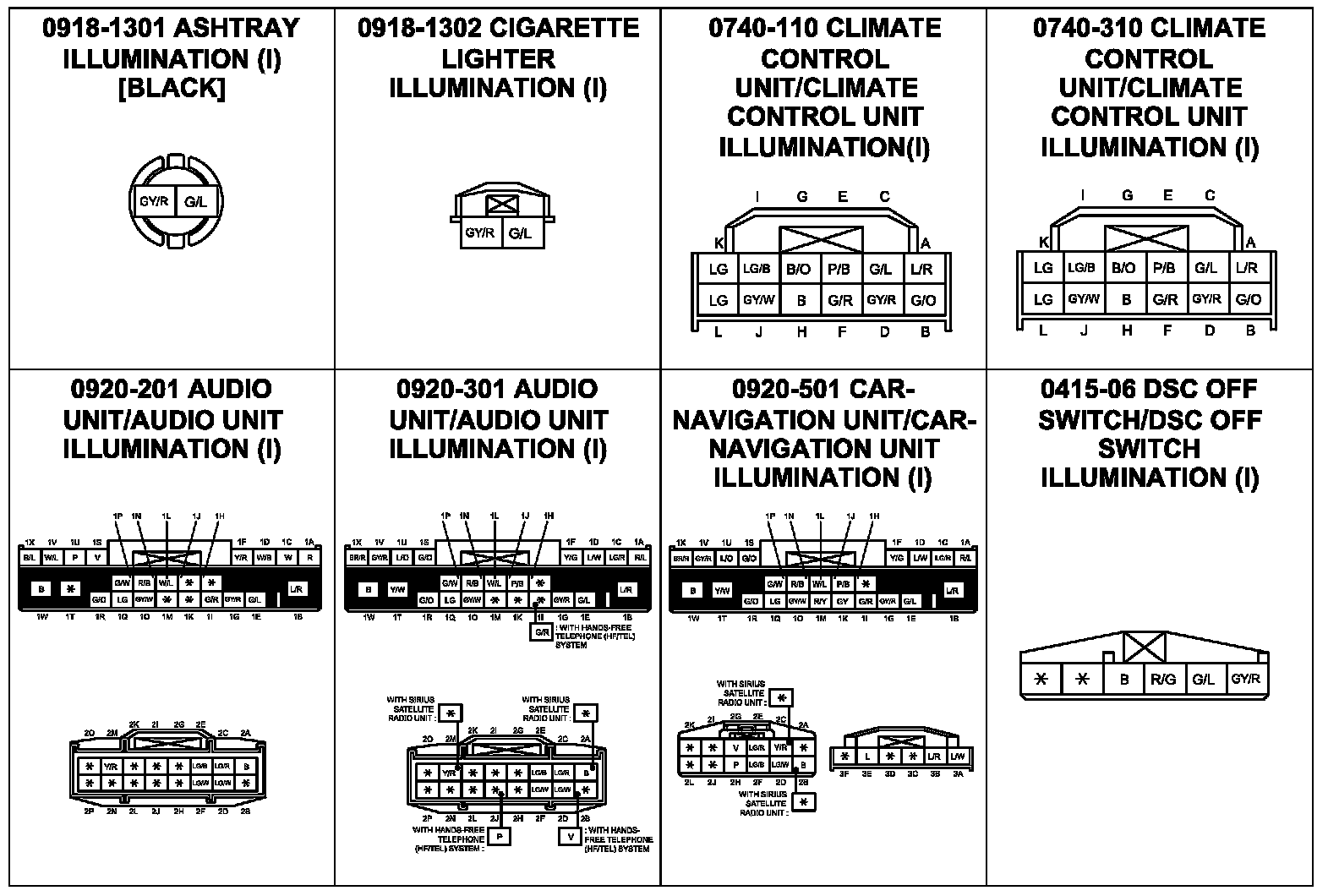

Connectors 0918-13a:

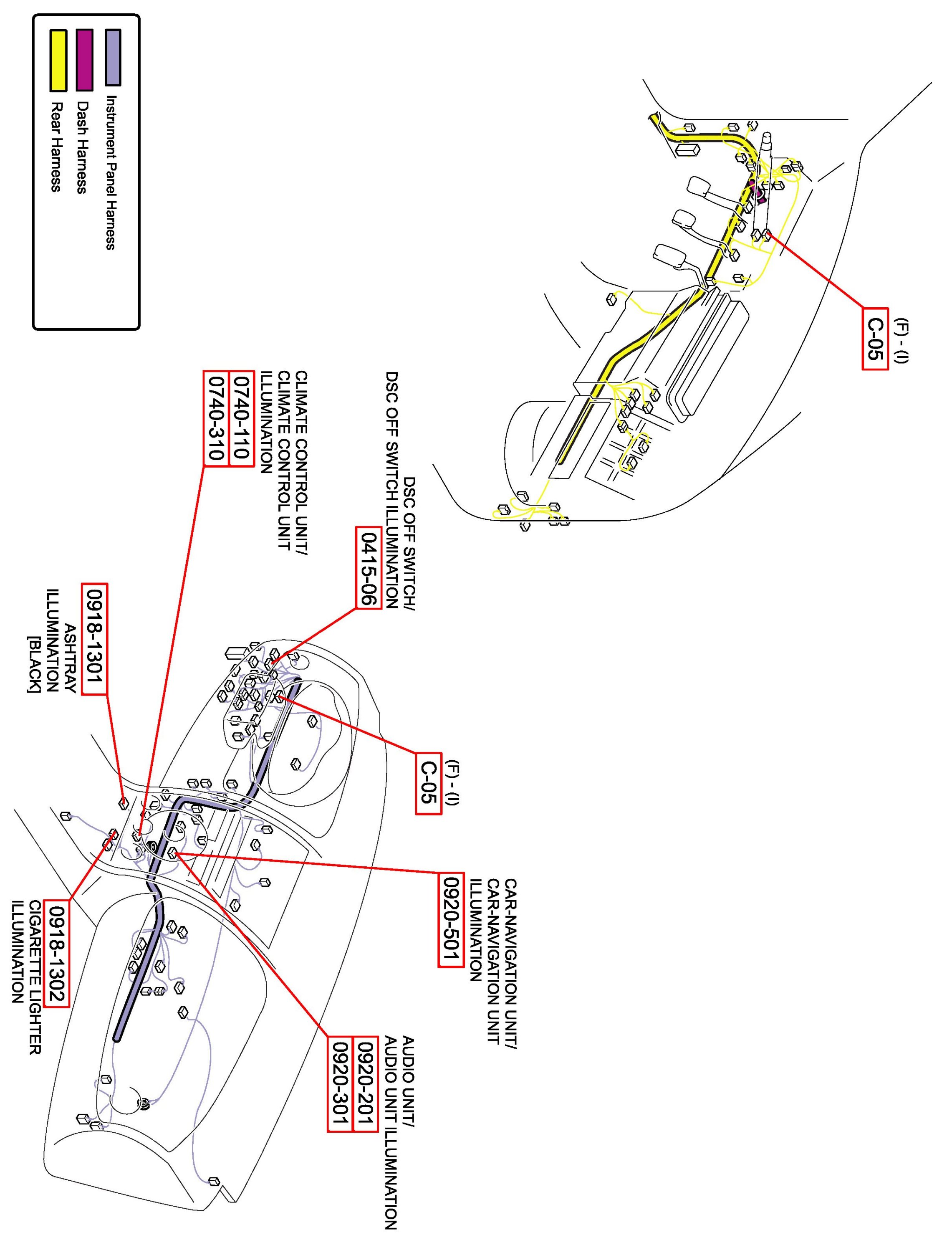

Routing View 0918-13a:

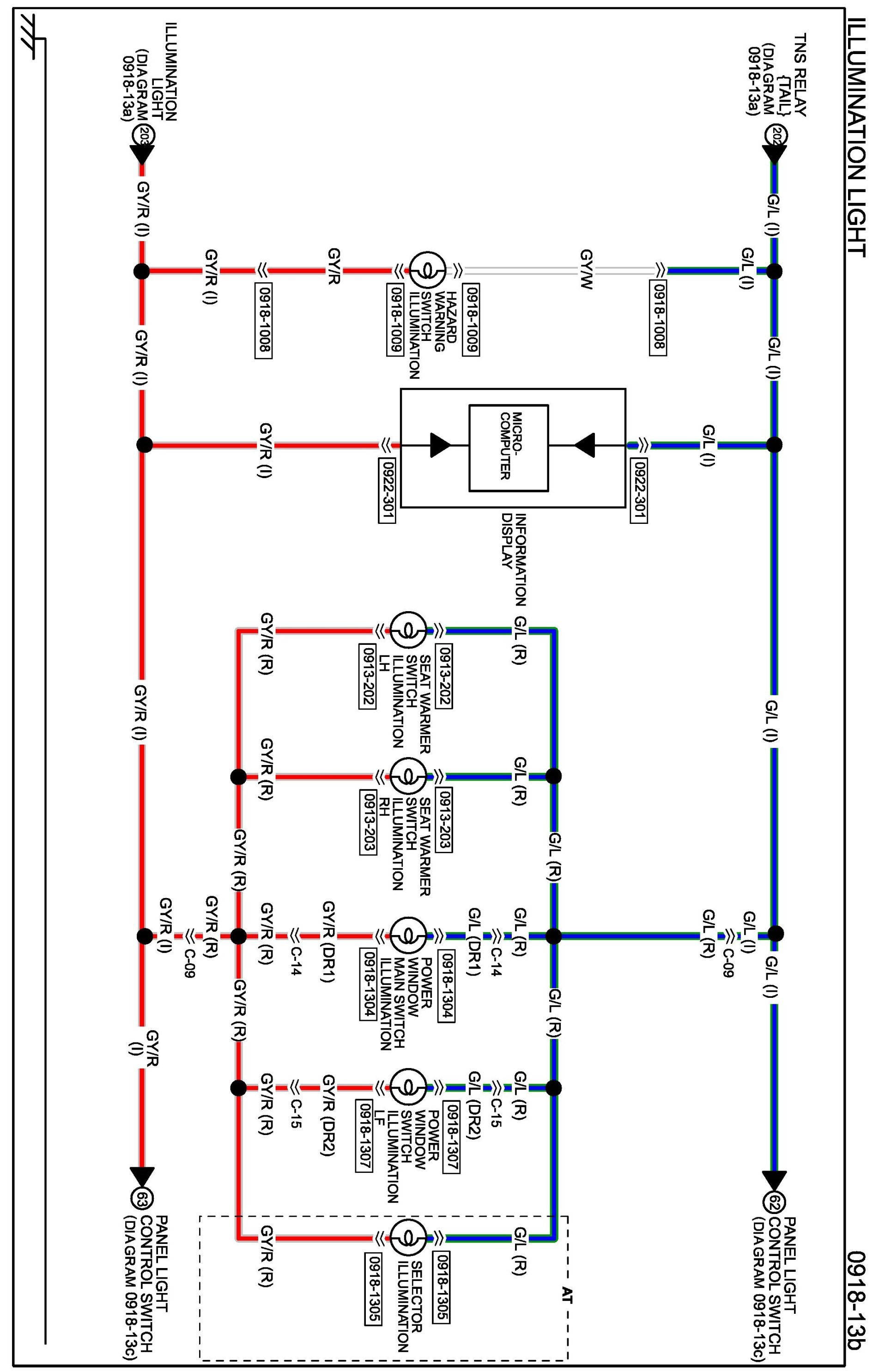

Diagram 0918-13b:

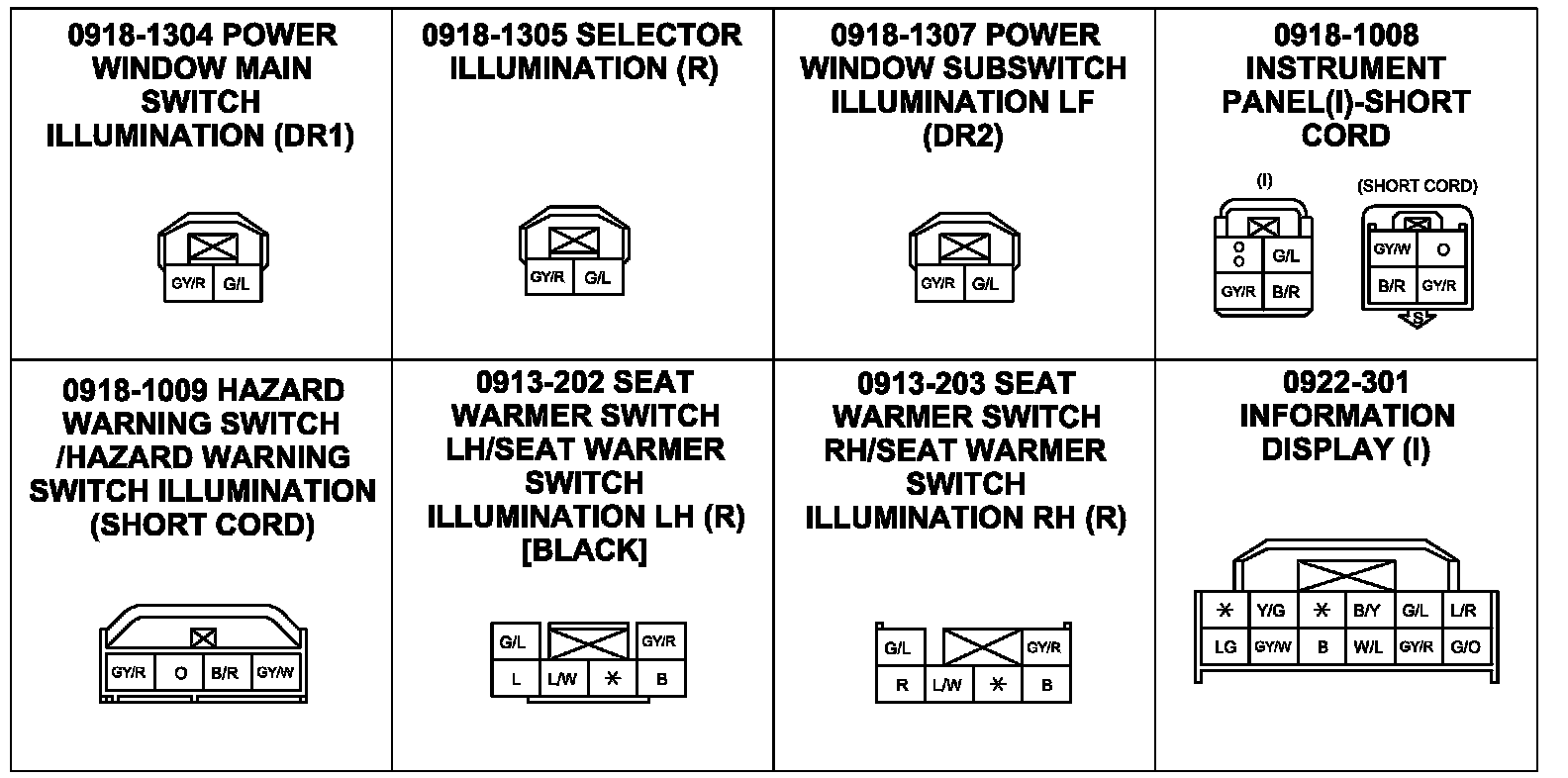

Connectors 0918-13b:

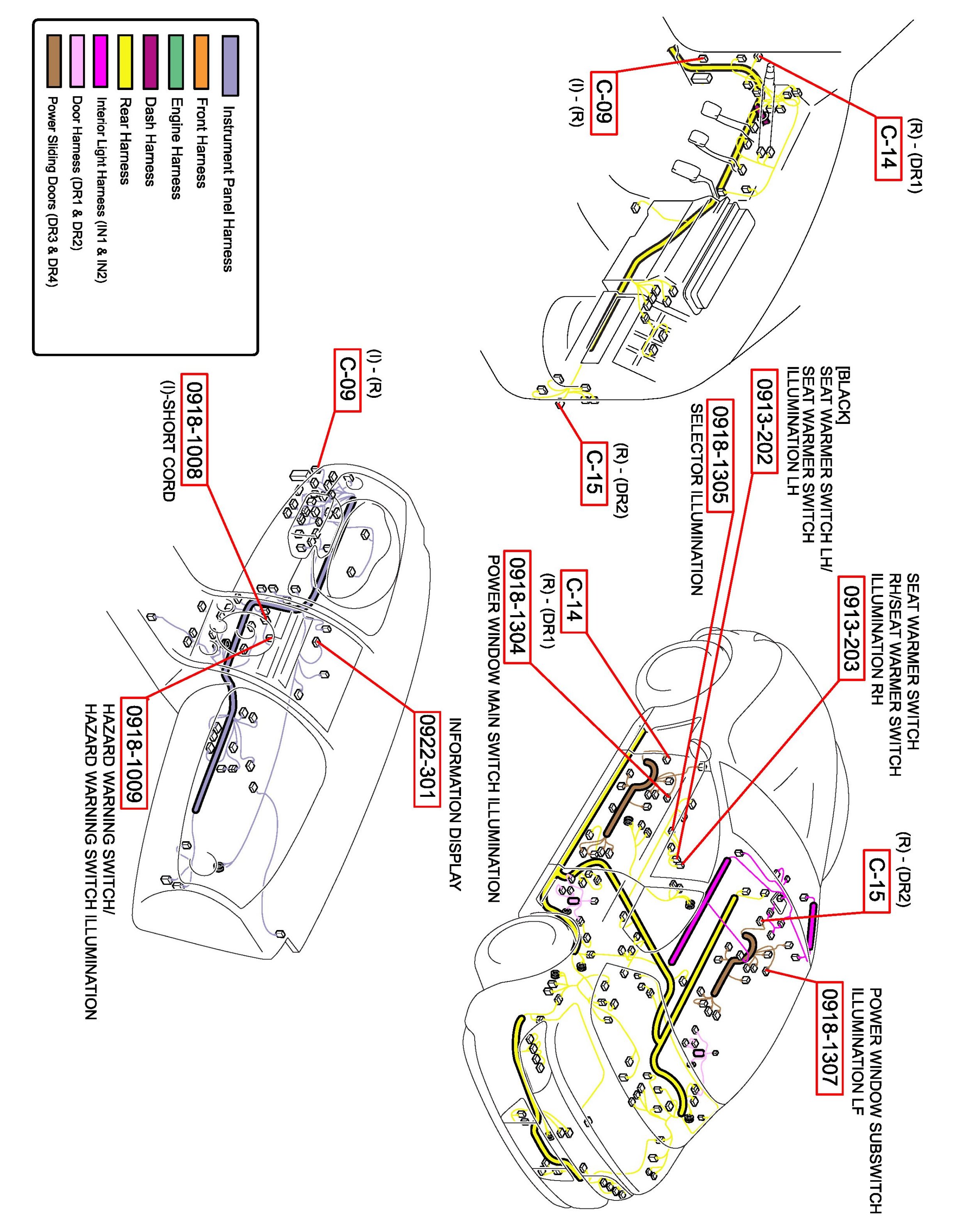

Routing View 0918-13b:

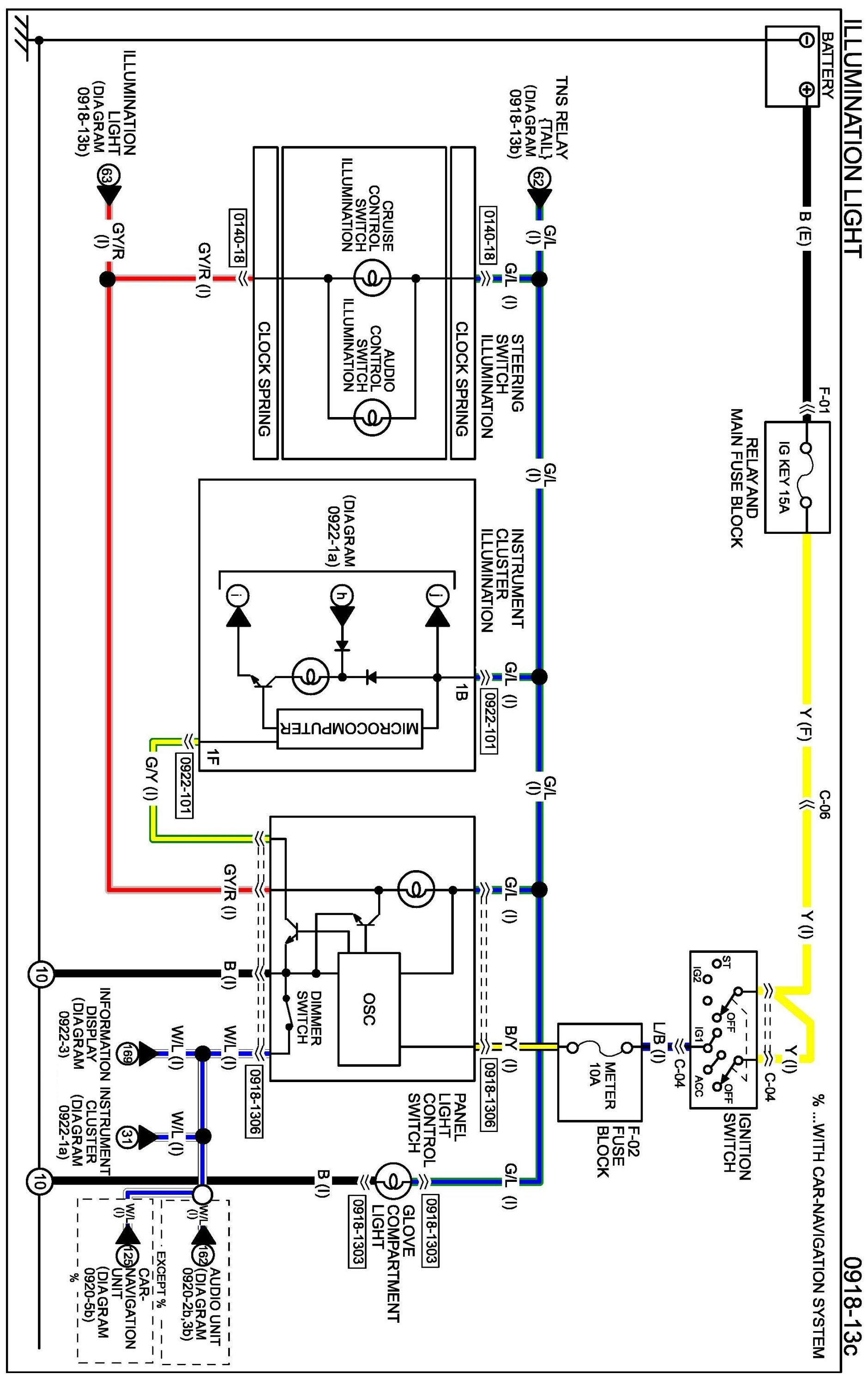

Diagram 0918-13c:

Connectors 0918-13c:

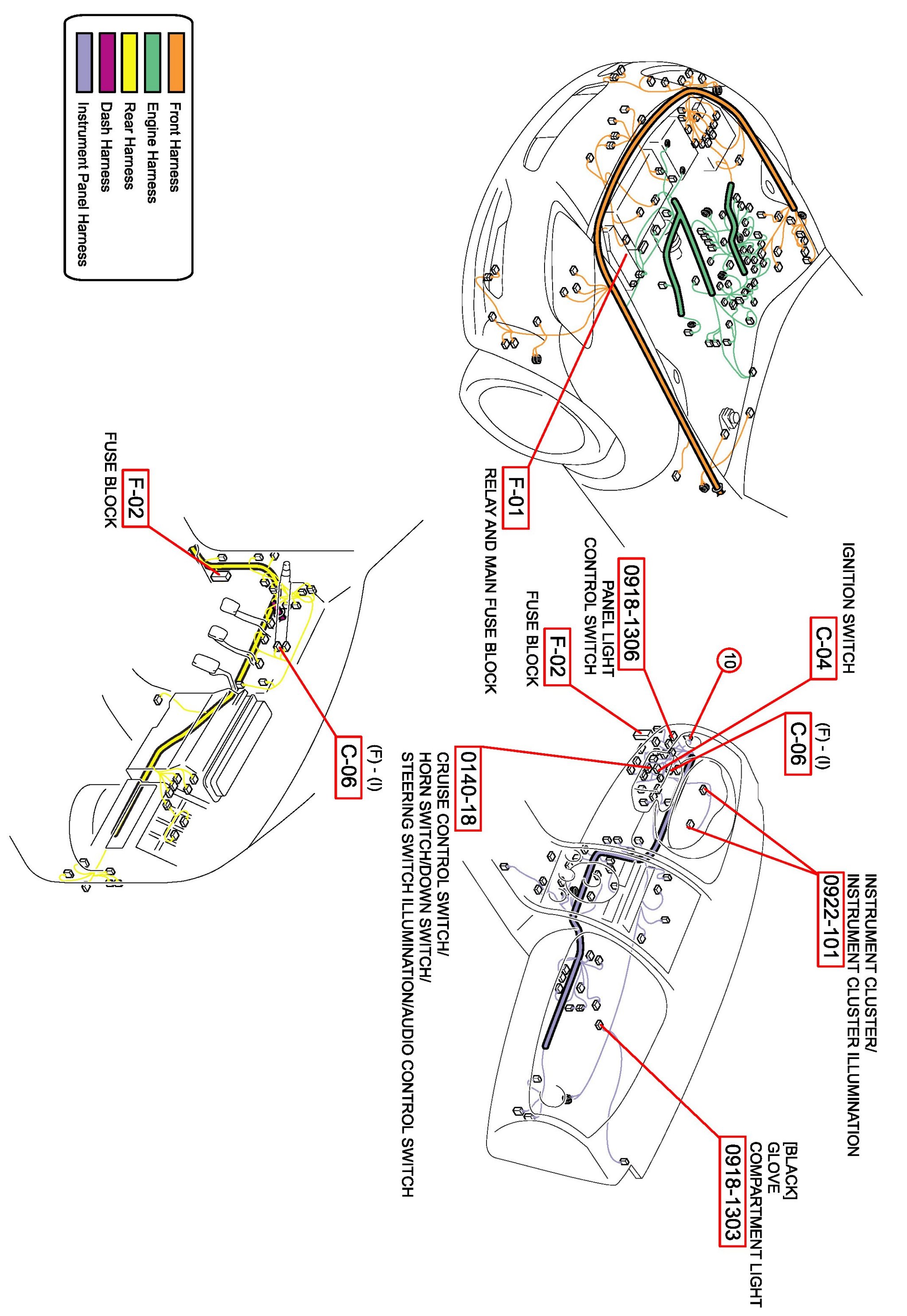

Routing View 0918-13c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
